L15/6563 15 Inch Speaker Mid bass Woofer For Professional Loudspeaker Audio Systems

shared：

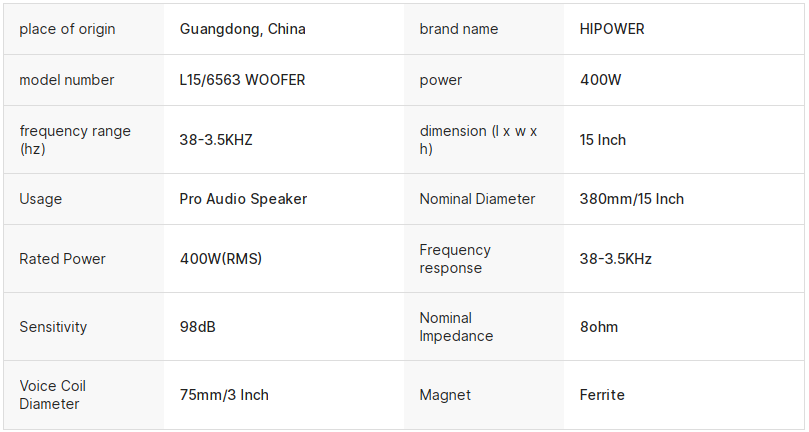

Key attributes

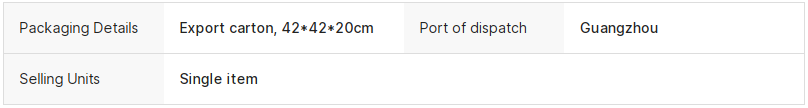

Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
380/15
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
400
Watts

Program Power2
800
Watts

Sensitivity(lw/lm)3
98
dB

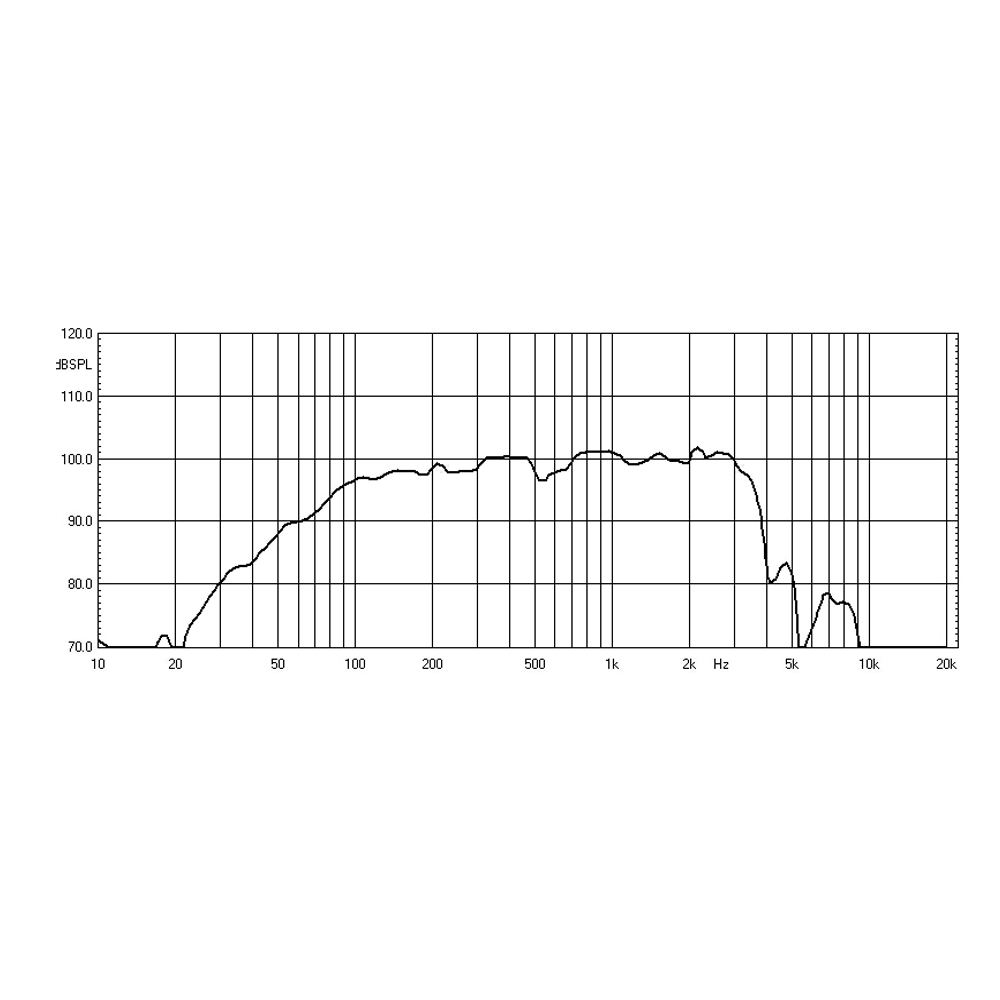

Frequency Range4
38-3.5K
Hz

Minimum Impedance(Zmin)
5.7
ohm

Voice Coil Diameter
75/3
mm/inch

Voice Coil Material
Edgewound Copper Clad Aluminum
Voice Coil Winding Depth
19
mm

Number of layers
1(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
38.6
Hz
DC resistance
Re
5.0
ohm
Mechanical factor
Qms
12.85

Electrical factor
Qes
0.31

Total factor
Qts
0.30

Mechanical compliance
Cms
0.17
mm/N
Mechanical resistance of suspension losses
Rms
1.86
mech-ohm
Effective Moving Mass
Mms
98.5
gr
Half-space efficiency
Eff
3.52
%
BL Factor
BL
19.8
T.m
Equivalent Cas air load
Vas
193
liters
Effective piston area
Sd
0.0897
m2
Max.linear excursion
Xmax
7
mm
Voice-coil inductance
LelK
0.66
mH

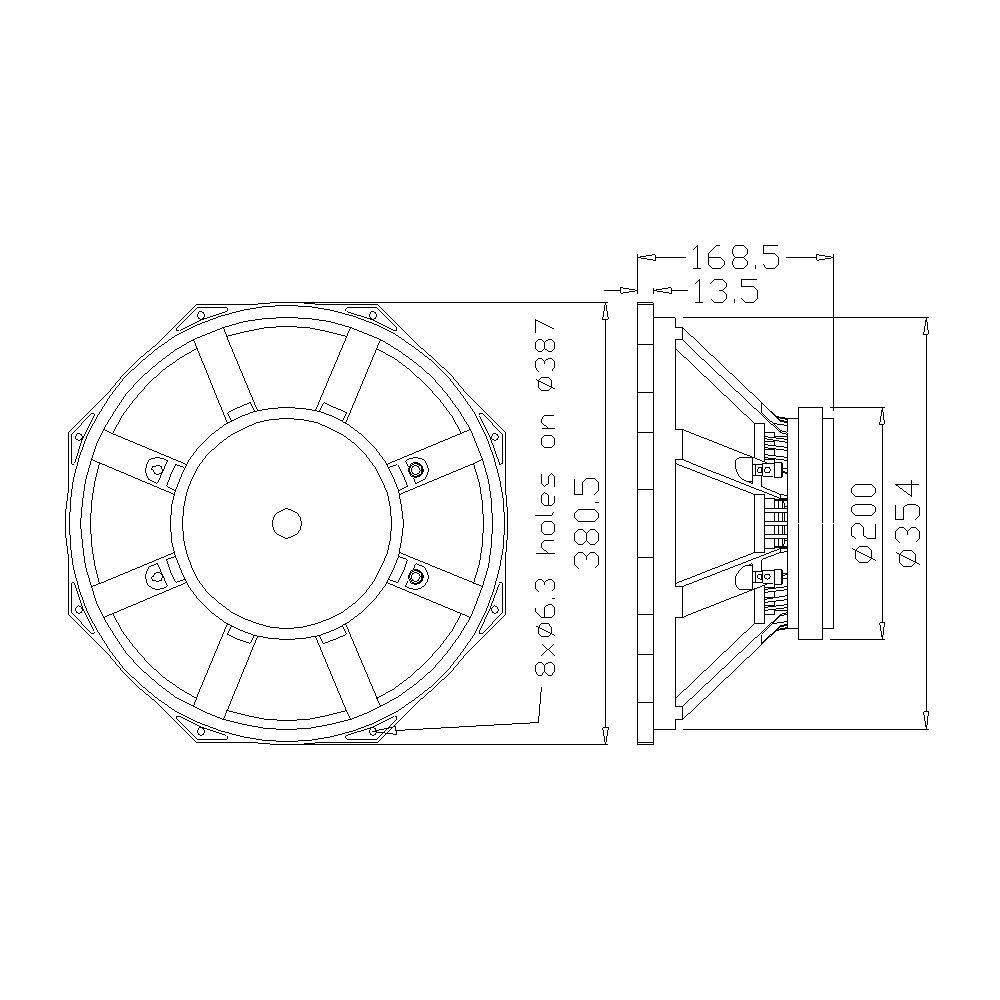

Mounting Information
Overall Diameter
380.5
mm

Bolt Circle Diameter
387
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
354
mm

Overall Depth
168.5
mm

Net Weight
8.1
Kg

Gross Weight
9.8
KG

Carton Box Size
420*420*200
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
