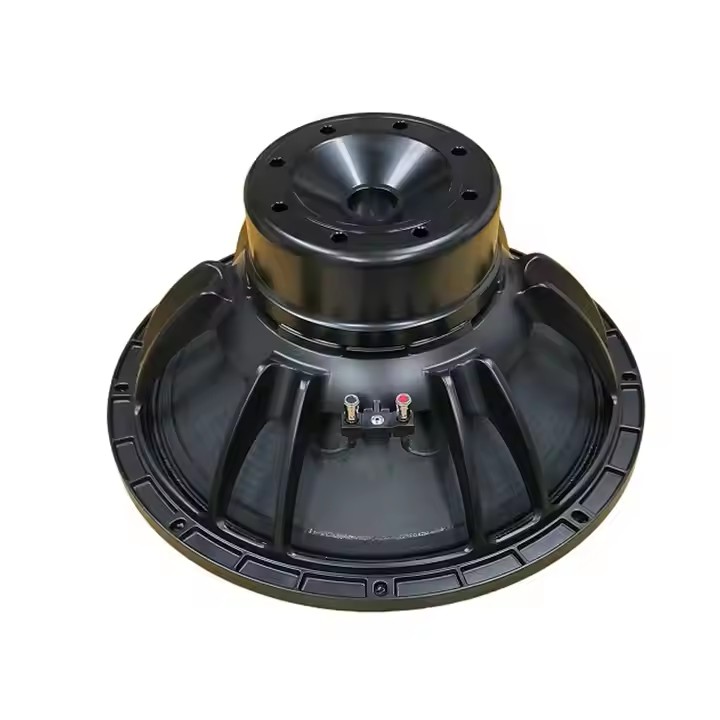

L15/85325 15 Inch Professional Subwoofer Speaker For Line Array Pa Speaker Sound Systems, Neodymium Woofer

Products > 15inch Speaker > L15/85325 15 Inch Professional Subwoofer Speaker For Line Array Pa Speaker Sound Systems, Neodymium Woofer
    • 1
    • 2
    • 3
    • 4

L15/85325 15 Inch Professional Subwoofer Speaker For Line Array Pa Speaker Sound Systems, Neodymium Woofer

shared：

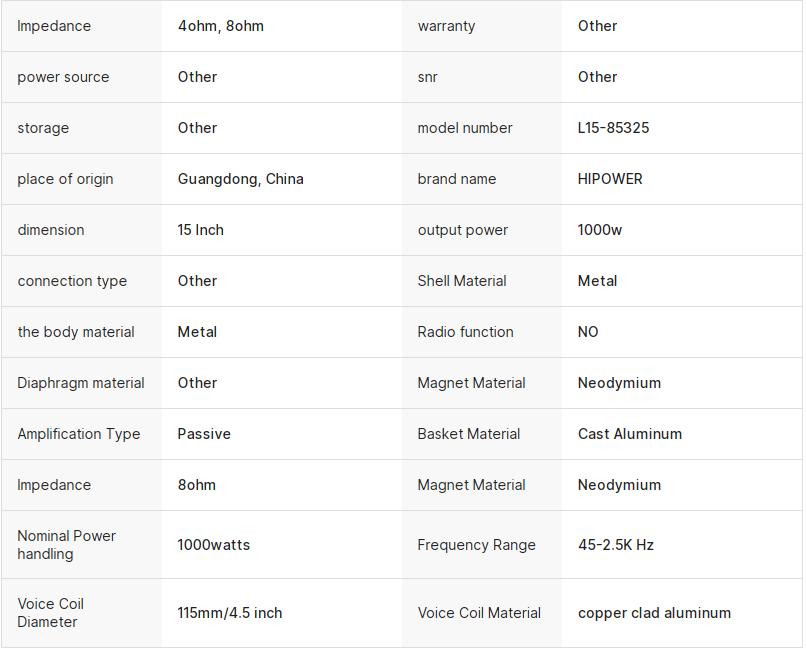

Key attributes


Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
381/15
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1000
Watts

Program Power2
2000
Watts

Sensitivity(lw/lm)3
98
dB

Frequency Range4
45-3500
Hz

Minimum Impedance(Zmin)
7.1
ohm

Voice Coil Diameter
115/4.5
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
26
mm

Number of layers
2(inside/outside)


Magnet gap depth
13.5
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.3
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
46.1
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
9.12

Electrical factor
Qes
0.28

Total factor
Qts
0.27

Mechanical compliance
Cms
0.093
mm/N
Mechanical resistance of suspension losses
Rms
4.05
mech-ohm
Effective Moving Mass
Mms
126.3
gr
Half-space efficiency
Eff
3.6
%
BL Factor
BL
26.18
T.m
Equivalent Cas air load
Vas
108
liters
Effective piston area
Sd
0.0908
m2
Max.linear excursion
Xmax
11
mm
Voice-coil inductance
LelK
1.52
mH

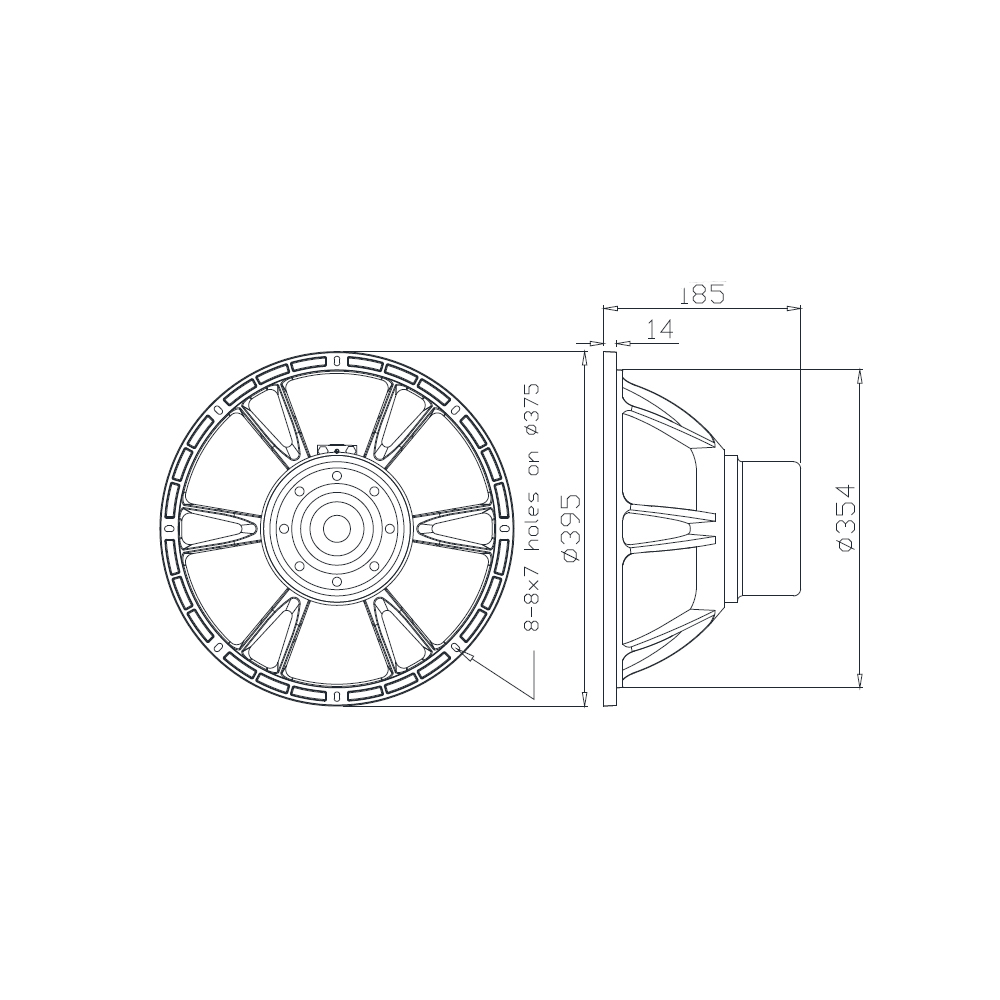

Mounting Information
Overall Diameter
395
mm

Bolt Circle Diameter
375
mm

Bolt Hole Diameter
8*7
mm

Baffle Cutout Diameter
354
mm

Overall Depth
185
mm

Net Weight
9.5
Kg

Gross Weight
12.5
KG

Carton Box Size
420*420*200
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
