L15/85350 Professional 15 Inch Speaker Woofer PA Speaker 600W, 3.5'' Voice Coil b&c Full Range Speaker L15-85350

Products > 15inch Speaker > L15/85350 Professional 15 Inch Speaker Woofer PA Speaker 600W, 3.5'' Voice Coil b&c Full Range Speaker L15-85350
    • 1
    • 2
    • 3
    • 4
    • 5

L15/85350 Professional 15 Inch Speaker Woofer PA Speaker 600W, 3.5'' Voice Coil b&c Full Range Speaker L15-85350

shared：

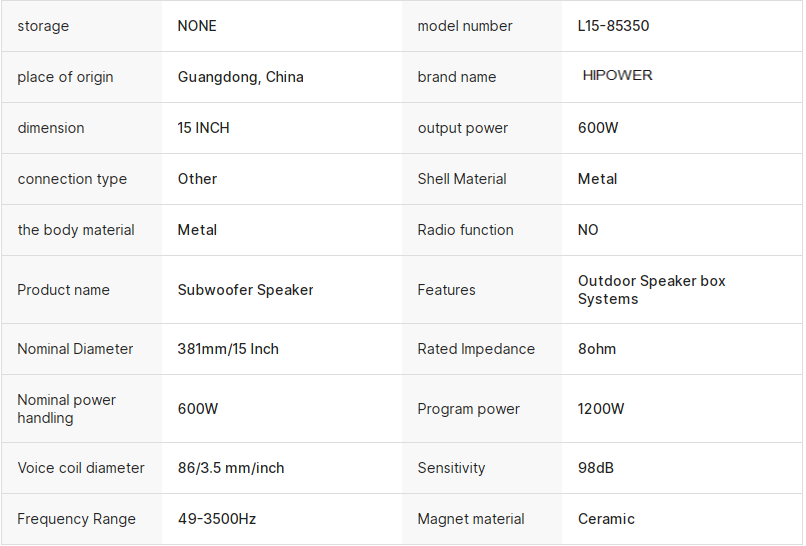

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
381/15
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
600
Watts

Program Power2
1200
Watts

Sensitivity(lw/lm)3
98
dB

Frequency Range4
49-3500
Hz

Minimum Impedance(Zmin)
6.62
ohm

Voice Coil Diameter
86/3.5
mm/inch

Voice Coil Material
Copper


Voice Coil Winding Depth
18
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.0
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
49.1
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
9.21

Electrical factor
Qes
0.44

Total factor
Qts
0.42

Mechanical compliance
Cms
0.1185
mm/N
Mechanical resistance of suspension losses
Rms
2.967
mech-ohm
Effective Moving Mass
Mms
88.5
gr
Half-space efficiency
Eff
3.63
%
BL Factor
BL
18.11
T.m
Equivalent Cas air load
Vas
136.3
liters
Effective piston area
Sd
0.0908
m2
Max.linear excursion
Xmax
6
mm
Voice-coil inductance
Le1k
1.47
mH

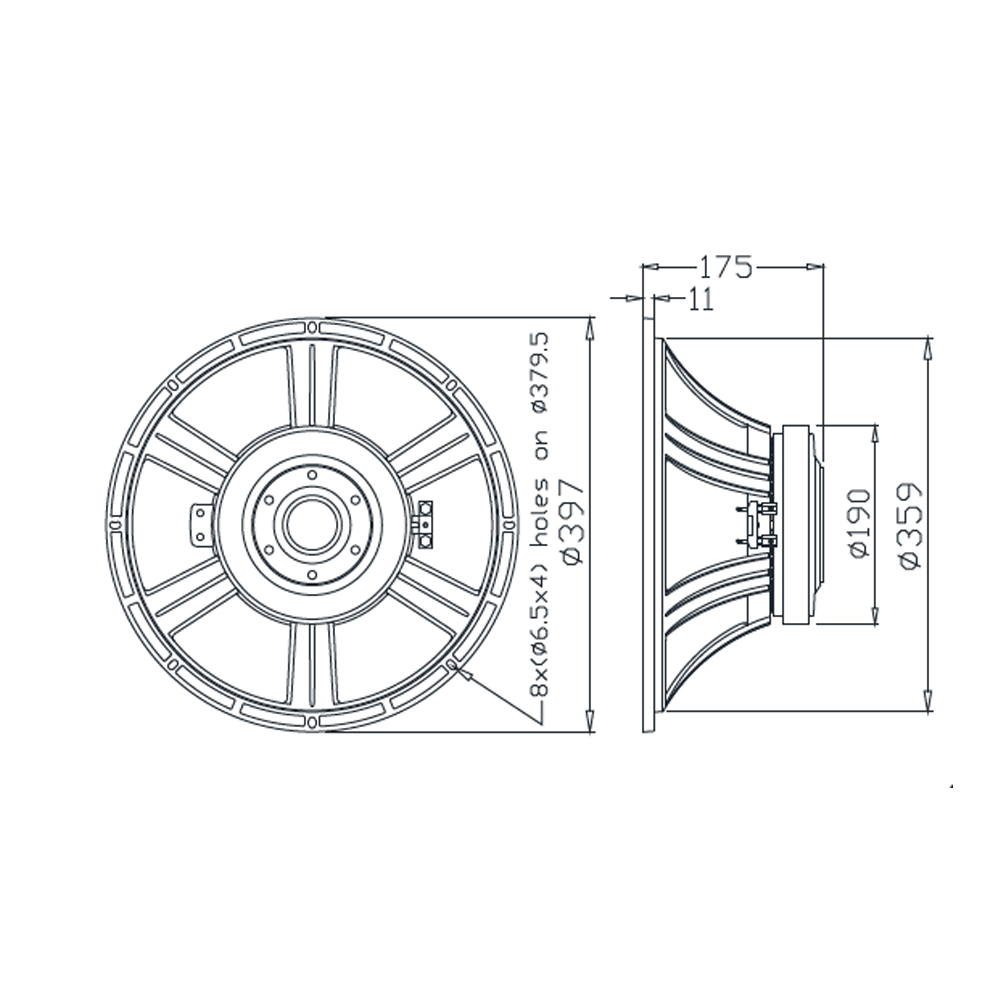

Mounting Information
Overall Diameter
397
mm

Bolt Circle Diameter
379.5
mm

Bolt Hole Diameter
6.5*9.5
mm

Baffle Cutout Diameter
359
mm

Overall Depth
175
mm

Net Weight 36Kg
7.9
kg

Shipping Weight
10.9
kg

Shipping Box
420*420*200
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
