L15/6506A Professional Loudspeaker 15 Inch Full Range Speaker Woofer PA Speaker Sound Systems

shared：

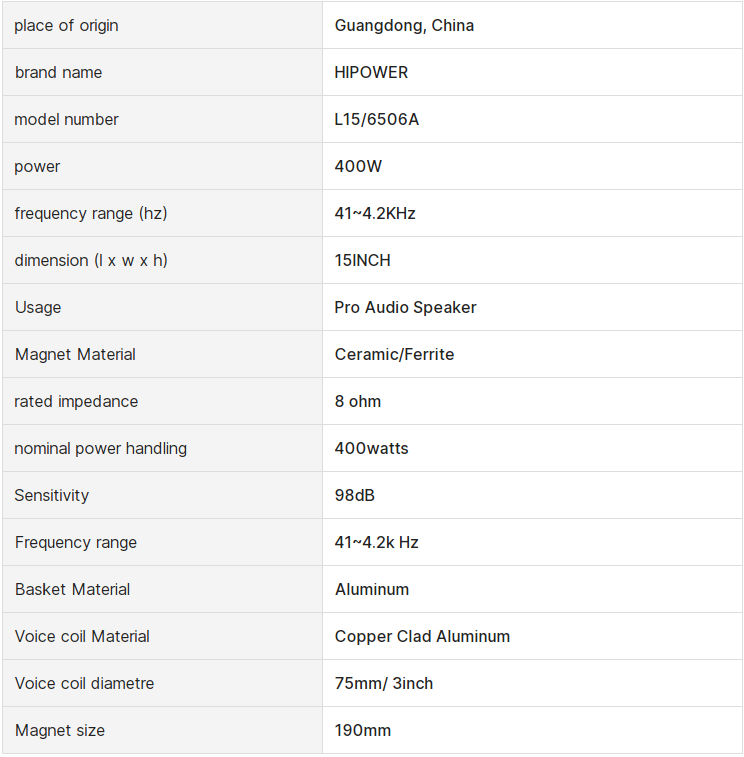

Key attributes


Packaging and delivery

Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)25To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
380/15
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
400
Watts

Program Power2
800
Watts

Sensitivity(lw/lm)3
98
dB

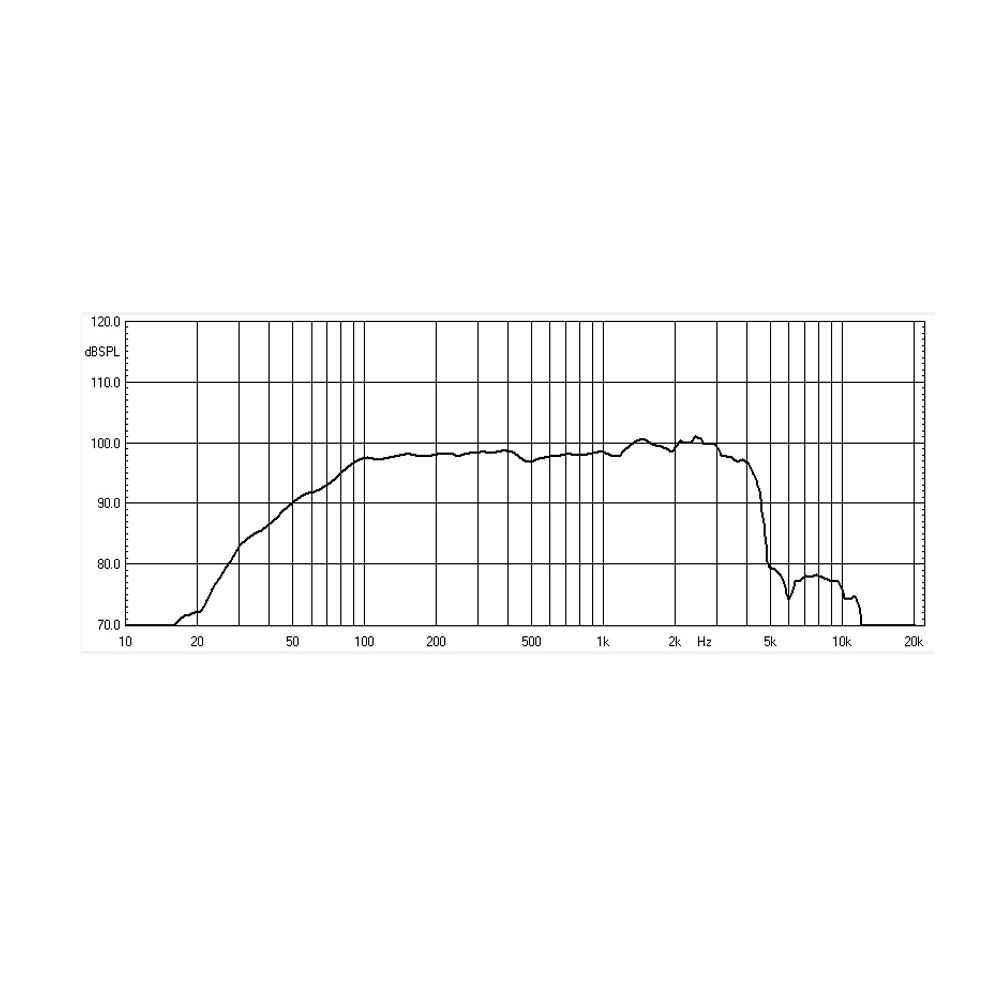

Frequency Range4
41-4.2K
Hz

Minimum Impedance(Zmin)
6.5
ohm

Voice Coil Diameter
75/3
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
17
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
Triple-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
41
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
8.0

Electrical factor
Qes
0.41

Total factor
Qts
0.39

Mechanical compliance
Cms
0.16
mm/N
Mechanical resistance of suspension losses
Rms
2.95
mech-ohm
Effective Moving Mass
Mms
91
gr
Half-space efficiency
Eff
2.72
%
BL Factor
BL
18
T.m
Equivalent Cas air load
Vas
168
liters
Effective piston area
Sd
0.0855
m2
Max.linear excursion
Xmax
6
mm
Voice-coil inductance
LelK
1.1
mH

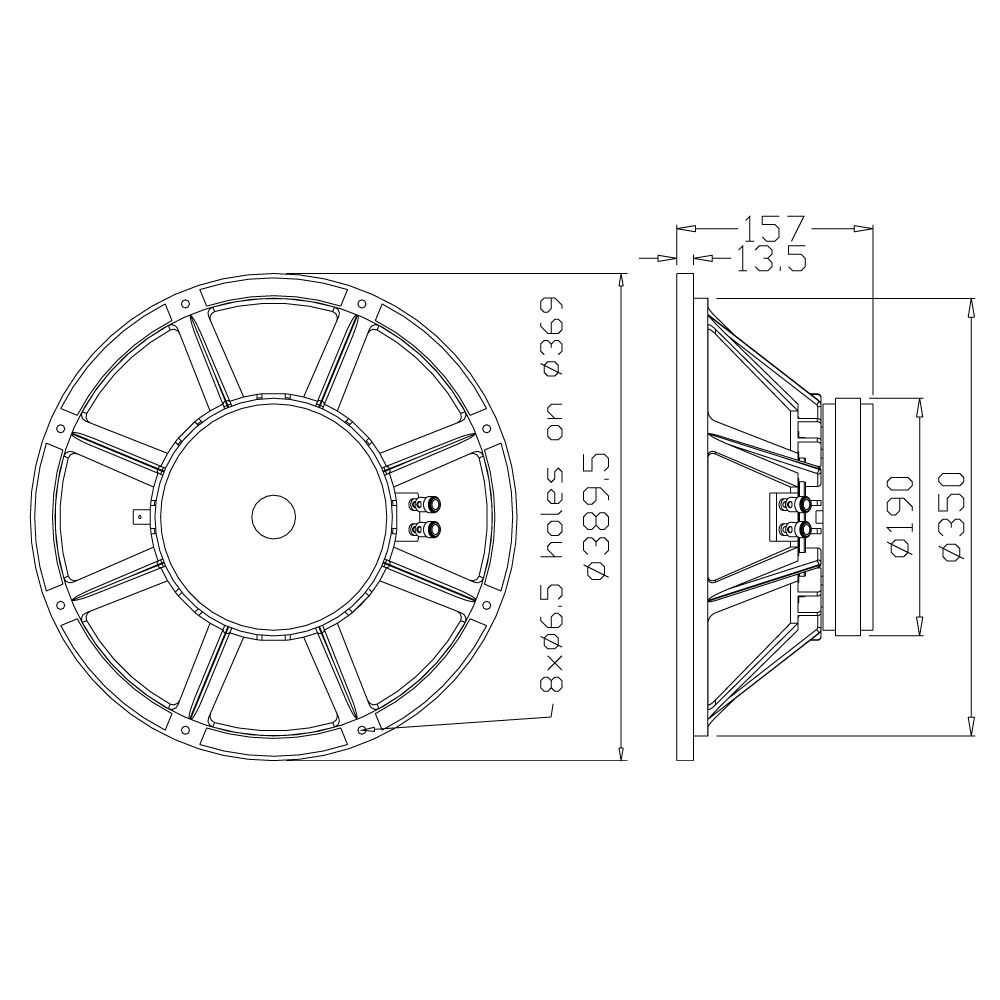

Mounting Information
Overall Diameter
389.5
mm

Bolt Circle Diameter
369
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
350
mm

Overall Depth
157
mm

Net Weight
7.8
Kg

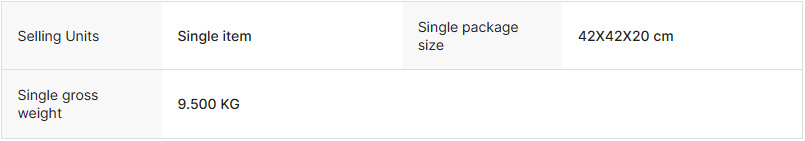

Gross Weight
9.5
KG

Carton Box Size
420*420*200
mm
