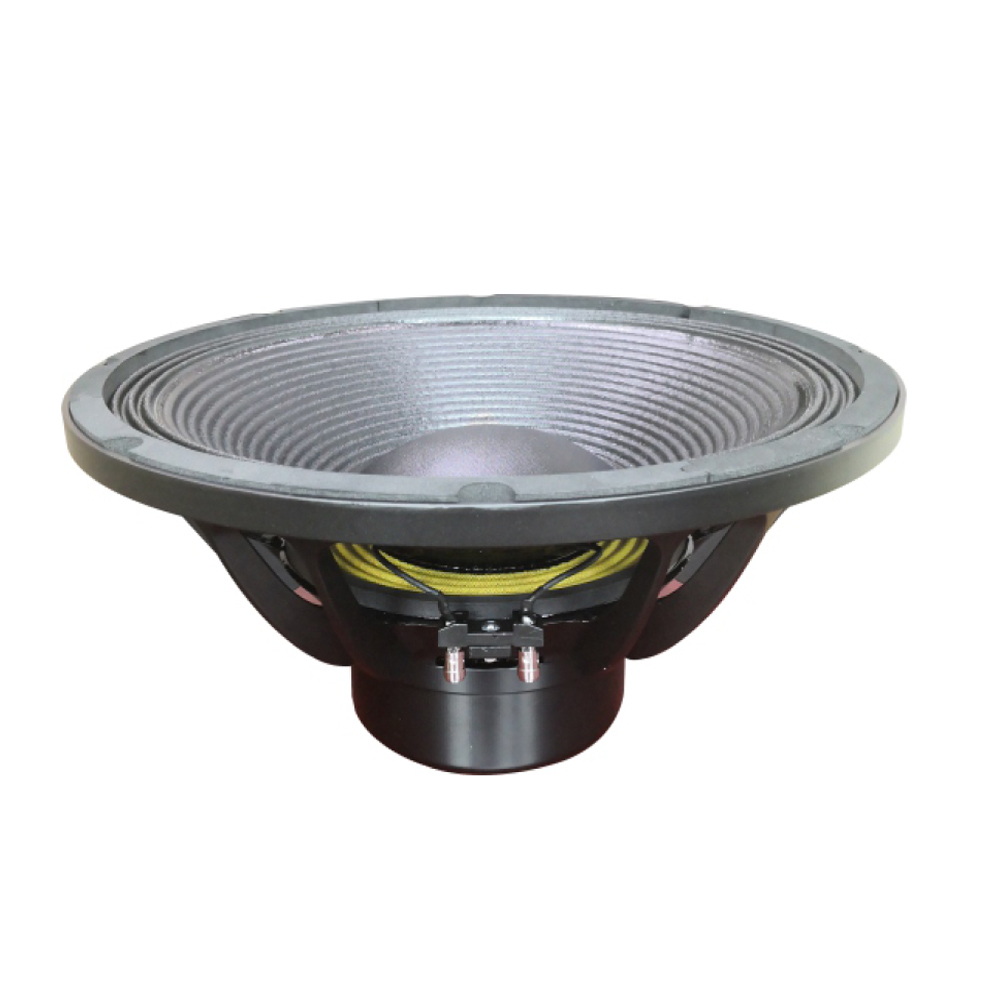

L15/85306 15 Inch Compact Subwoofer Speaker Powerful Sound for Line Array Subwoofer Audio Systems

shared：

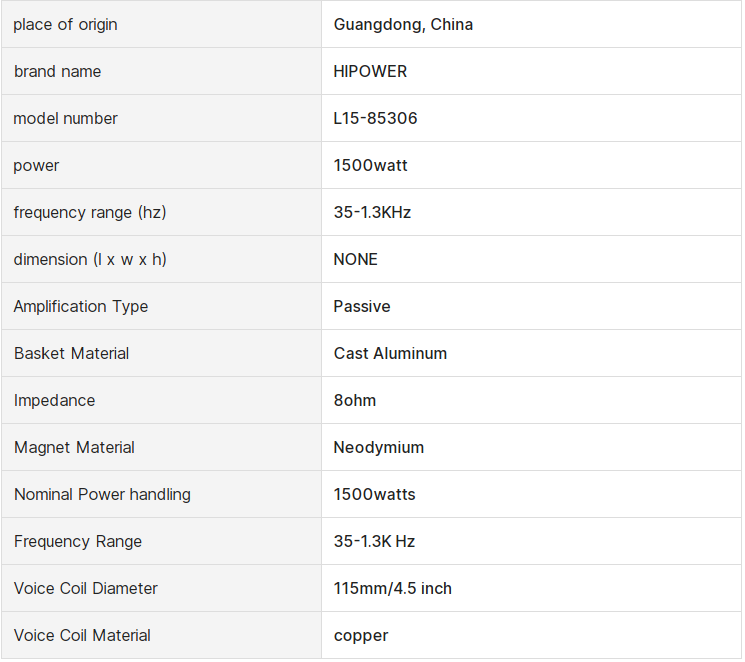

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
380/15
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1200
Watts

Program Power2
2400
Watts

Sensitivity(lw/lm)3
96
dB

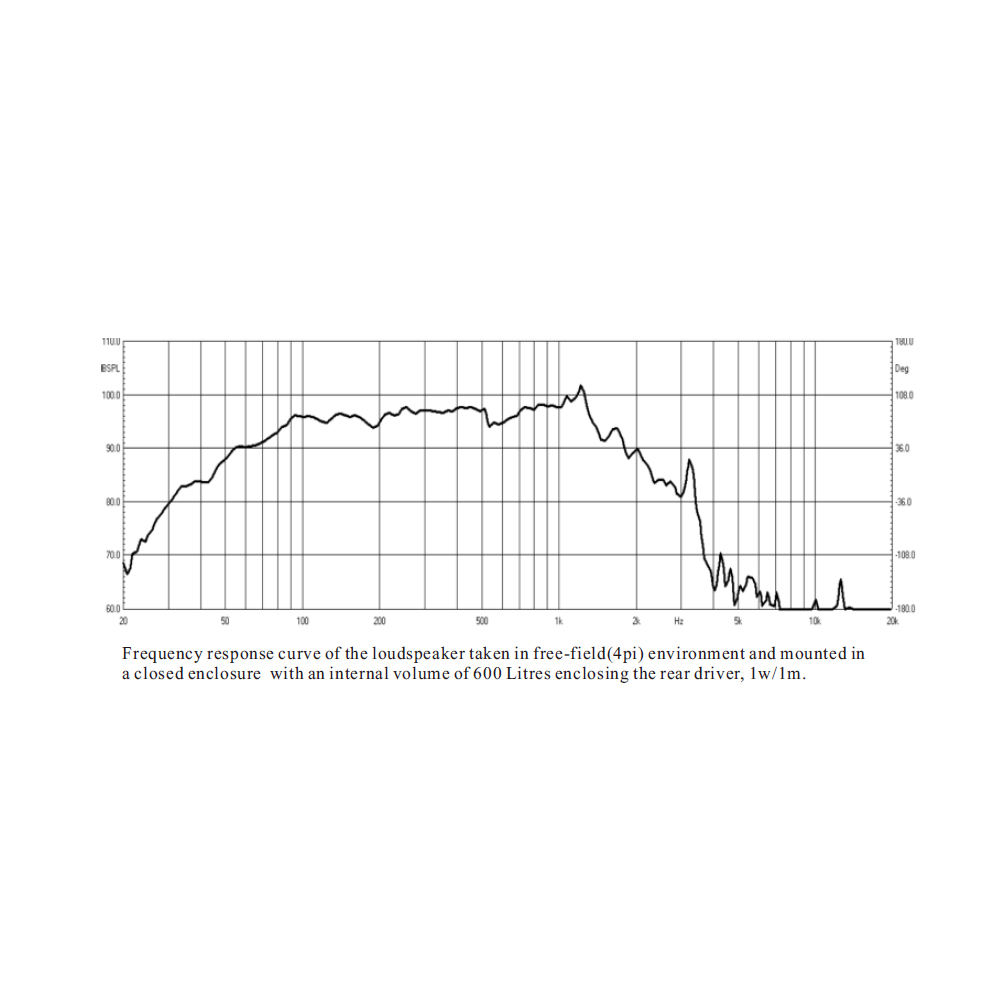

Frequency Range4
35-1.5k
Hz

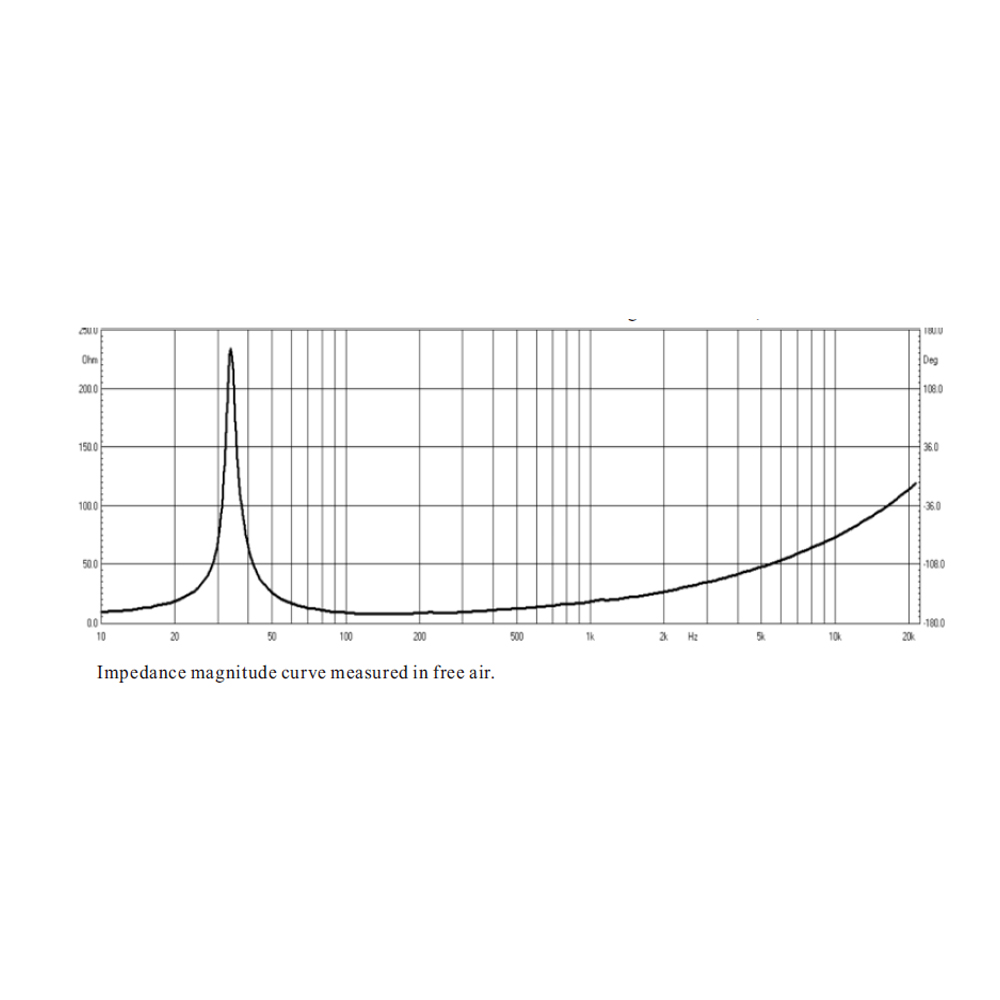

Minimum Impedance(Zmin)
7.1
ohm

Voice Coil Diameter
115/4.5
mm/inch

Voice Coil Material
Copper
Voice Coil Winding Depth
34
mm

Number of layers
2(inside/outside)


Magnet gap depth
13.5
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
35
Hz
DC resistance
Re
5.4
ohm
Mechanical factor
Qms
11.22

Electrical factor
Qes
0.26

Total factor
Qts
0.25

Mechanical compliance
Cms
0.121
mm/N
Mechanical resistance of suspension losses
Rms
3.41
mech-ohm
Effective Moving Mass
Mms
179.7
gr
Half-space efficiency
Eff
2.2
%
BL Factor
BL
28.1
T.m
Equivalent Cas air load
liters
Effective piston area
Sd
0.0935
m2
Max.linear excursion
Xmax
14
mm
Voice-coil inductance
LelK
2.02
mH

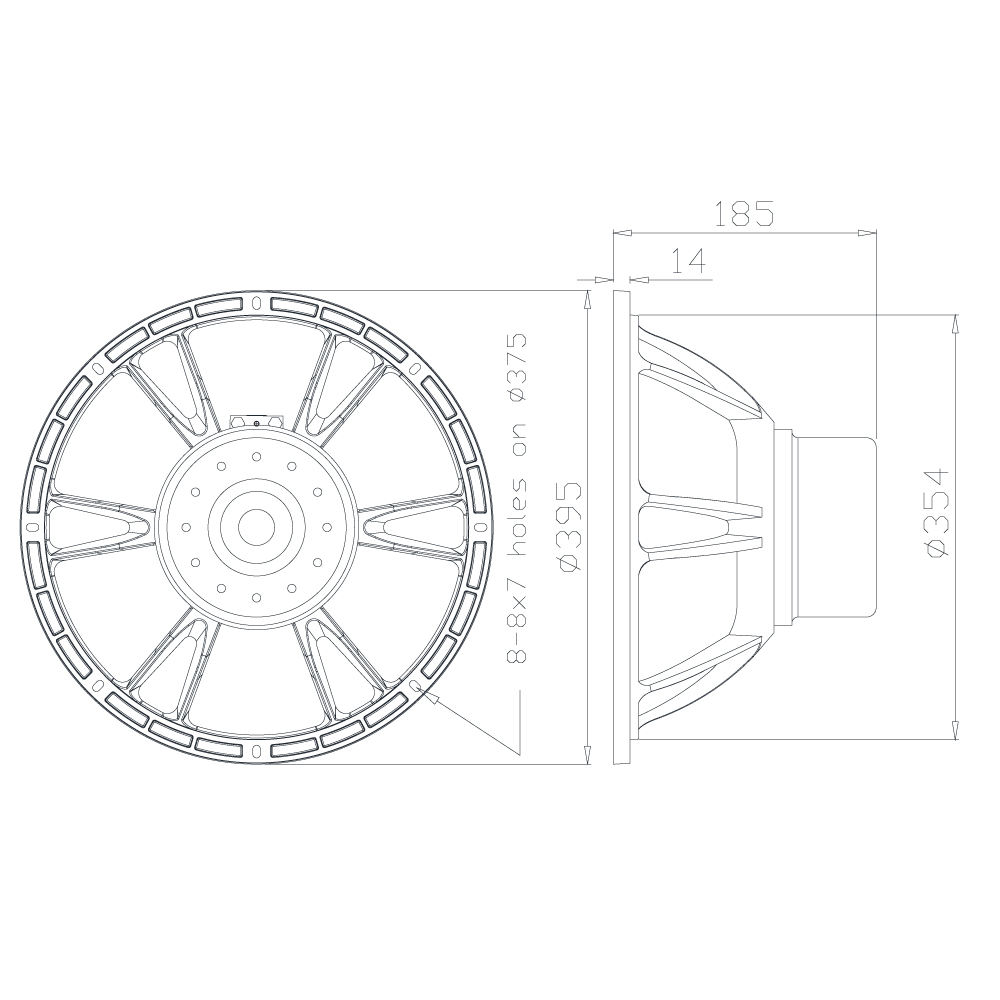

Mounting Information
Overall Diameter
395
mm

Bolt Circle Diameter
375
mm

Bolt Hole Diameter
8*7
mm

Baffle Cutout Diameter
354
mm

Overall Depth
185
mm

Net Weight

Kg

Gross Weight

KG

Carton Box Size

mm
