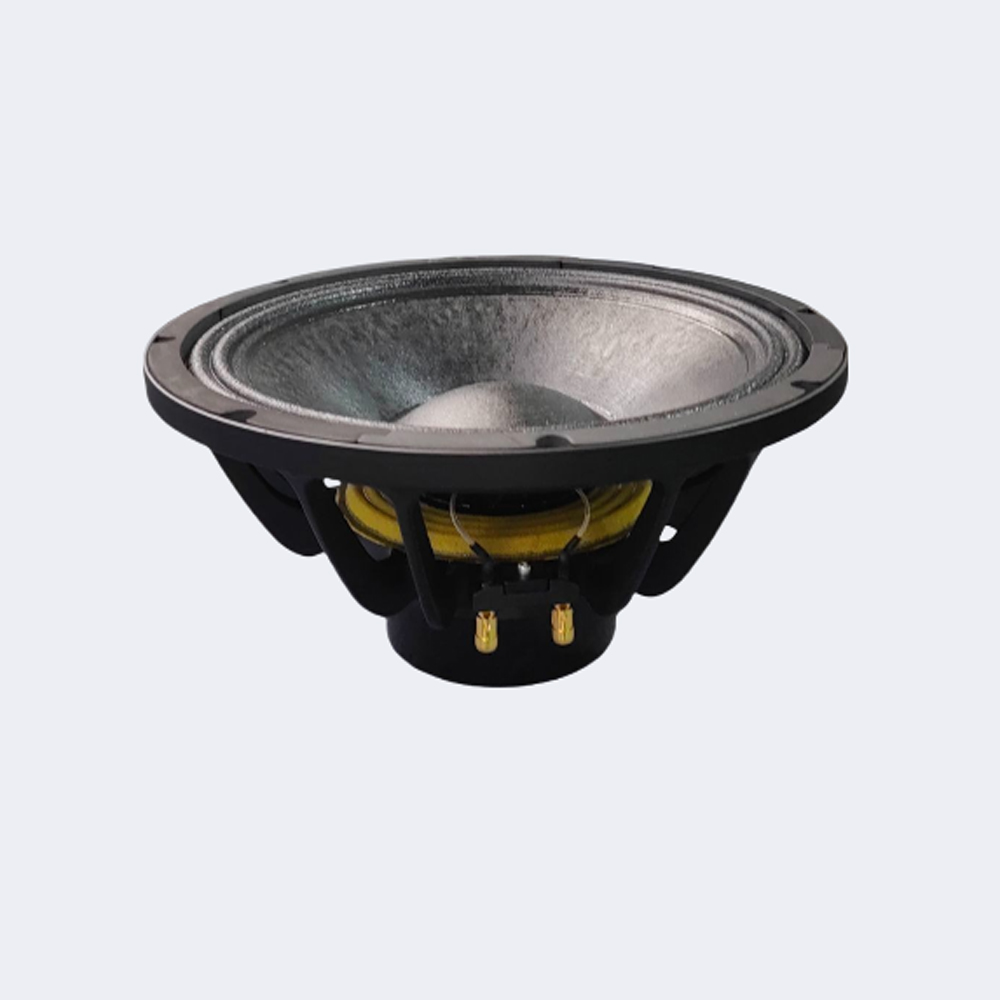

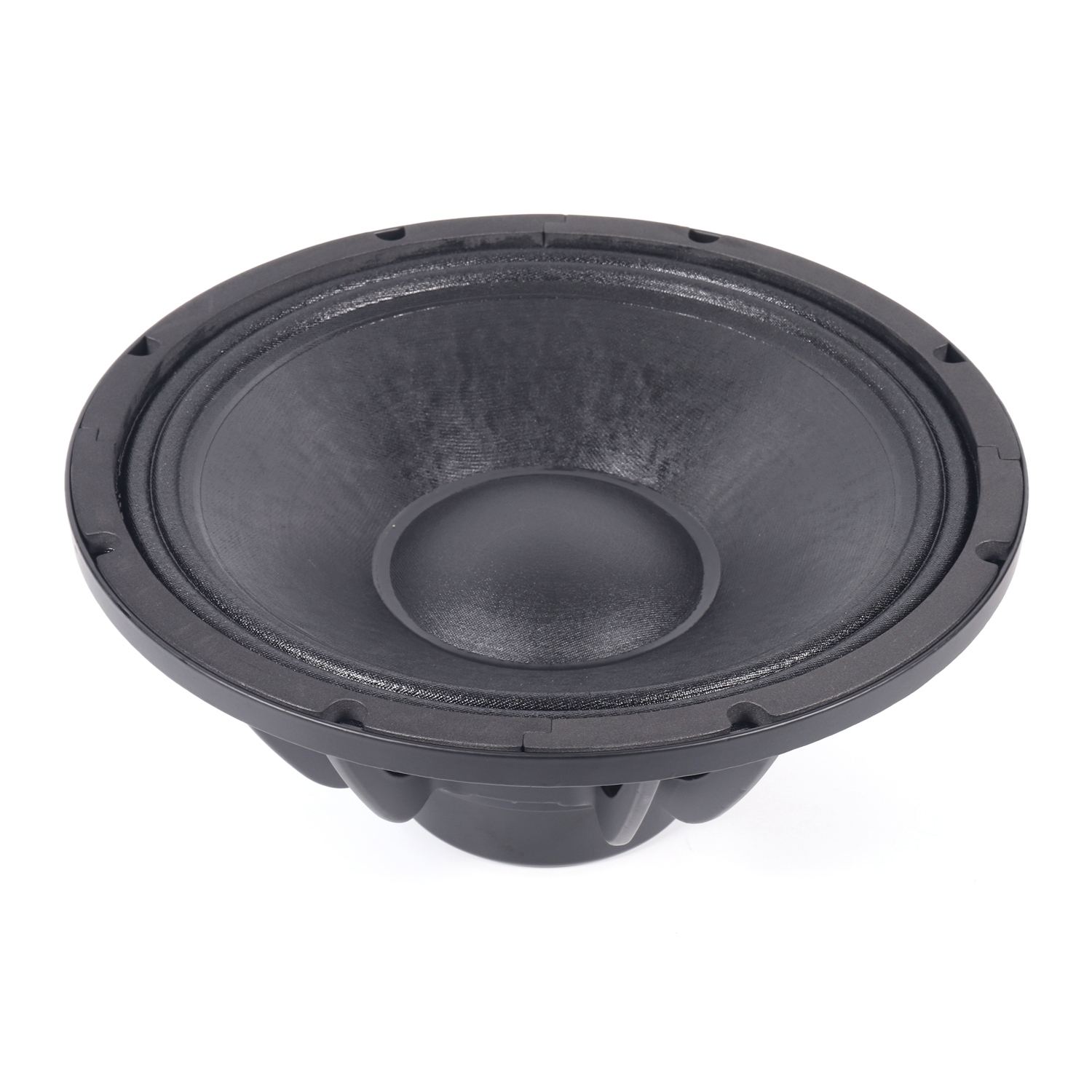

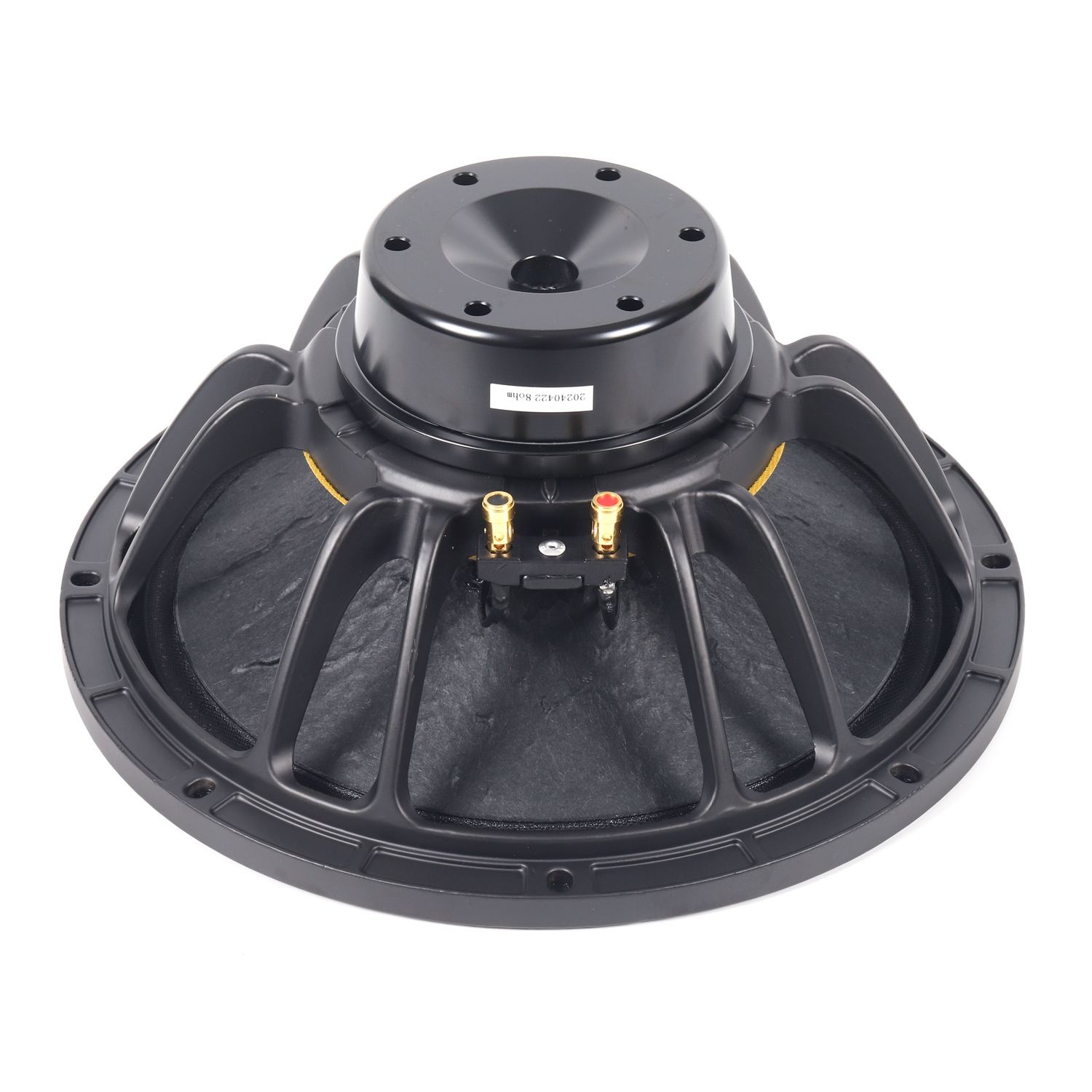

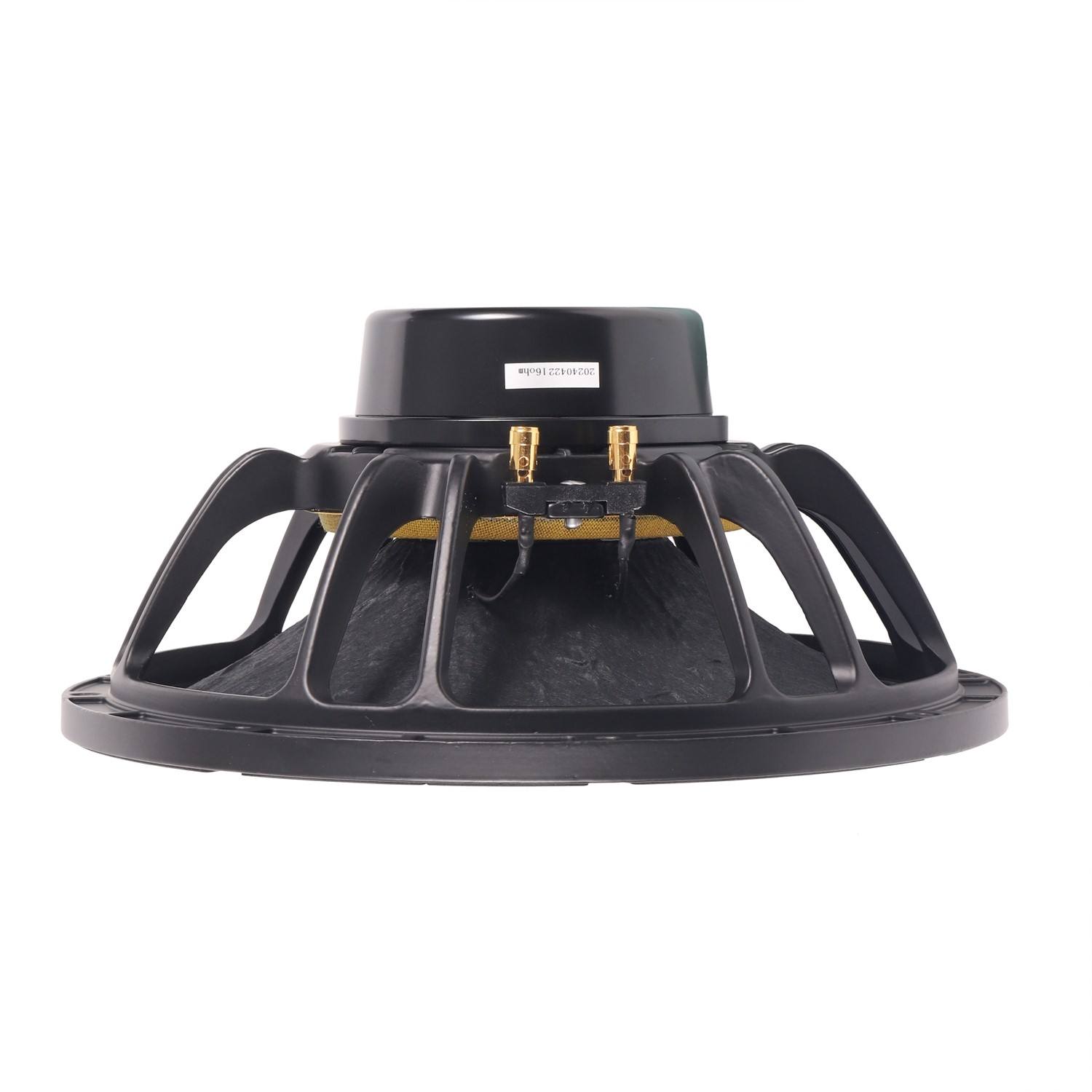

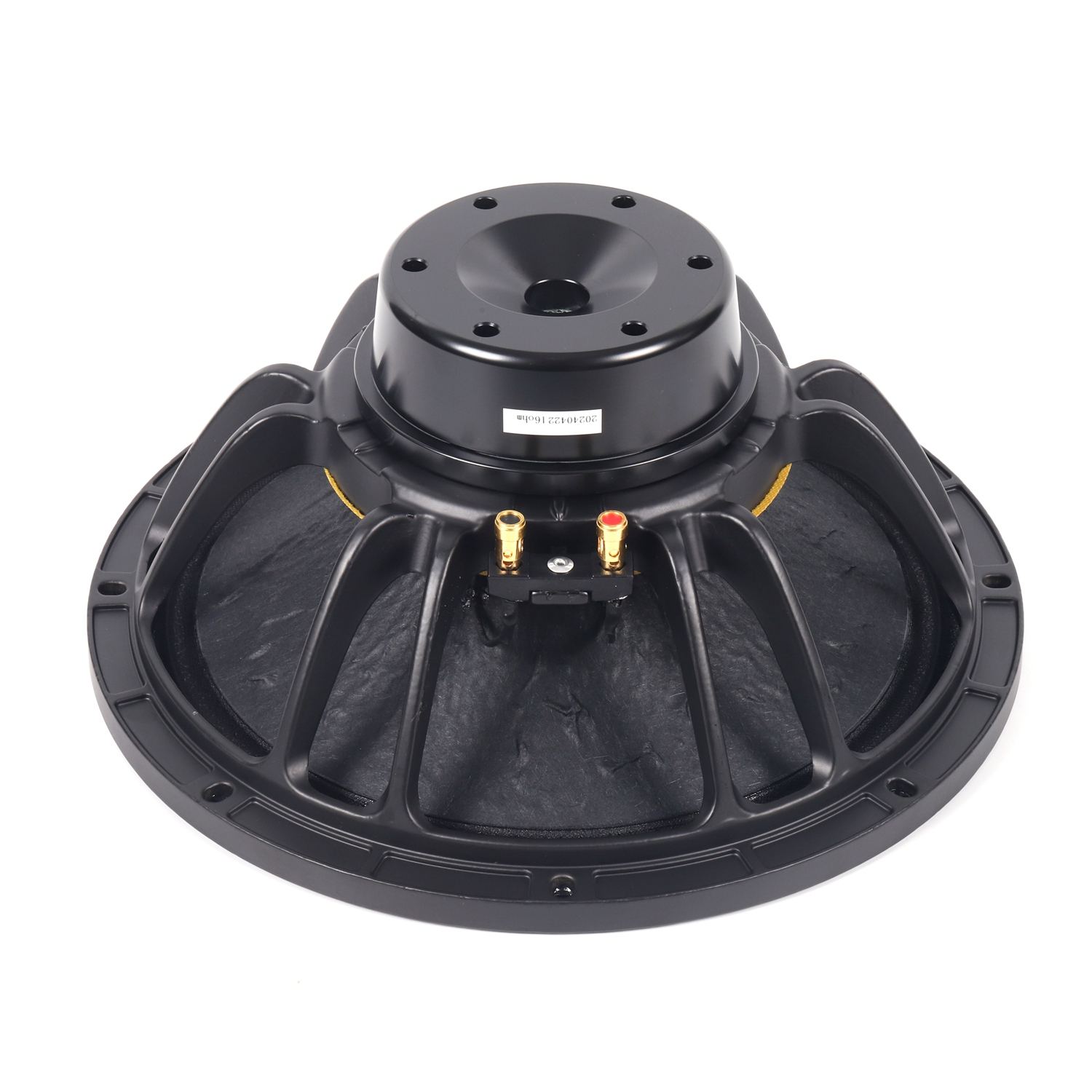

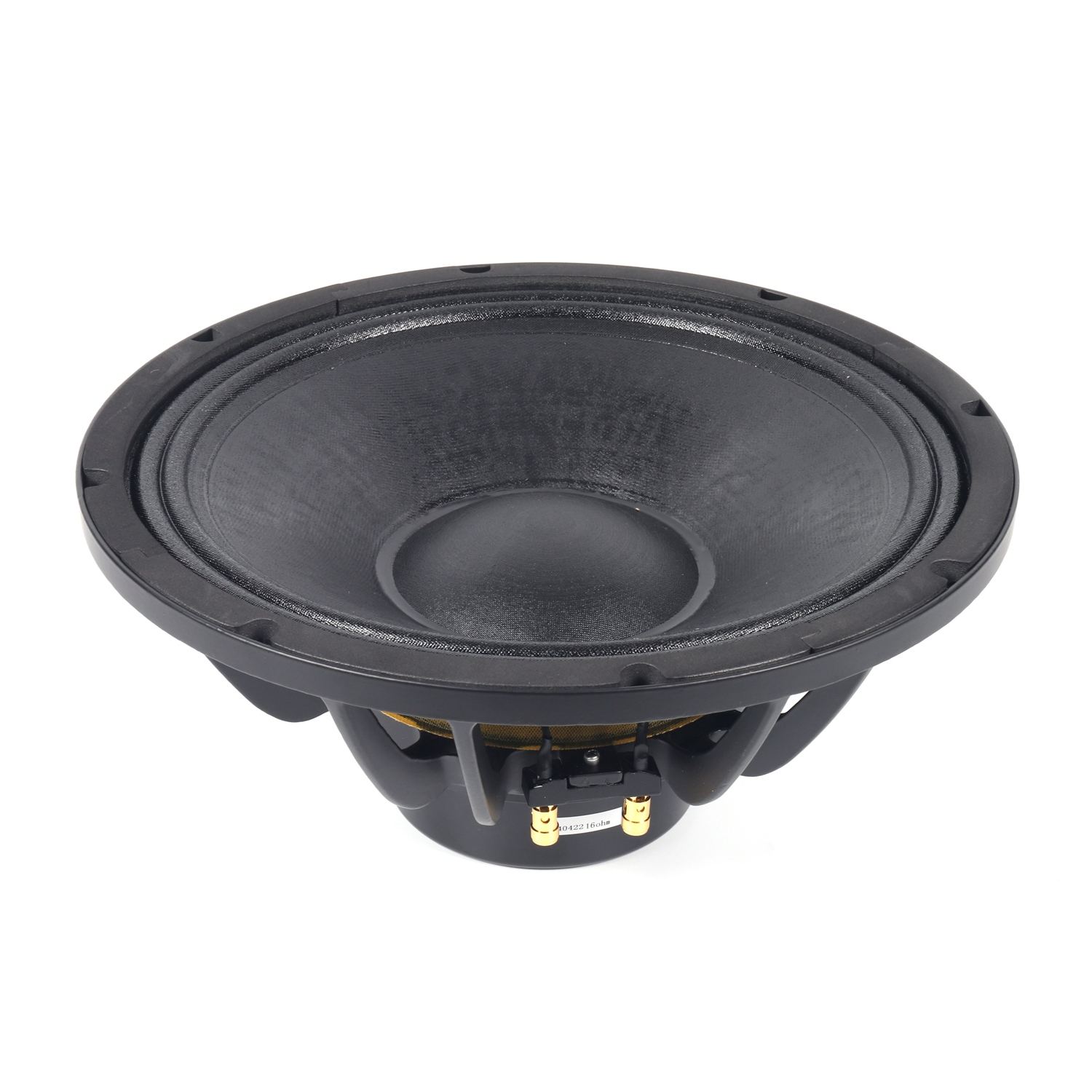

L12/84553 Professional 12 Inch Mid-bass Speaker Woofer for Dynamic Line Array Speaker Box Neodymium Speaker

shared：

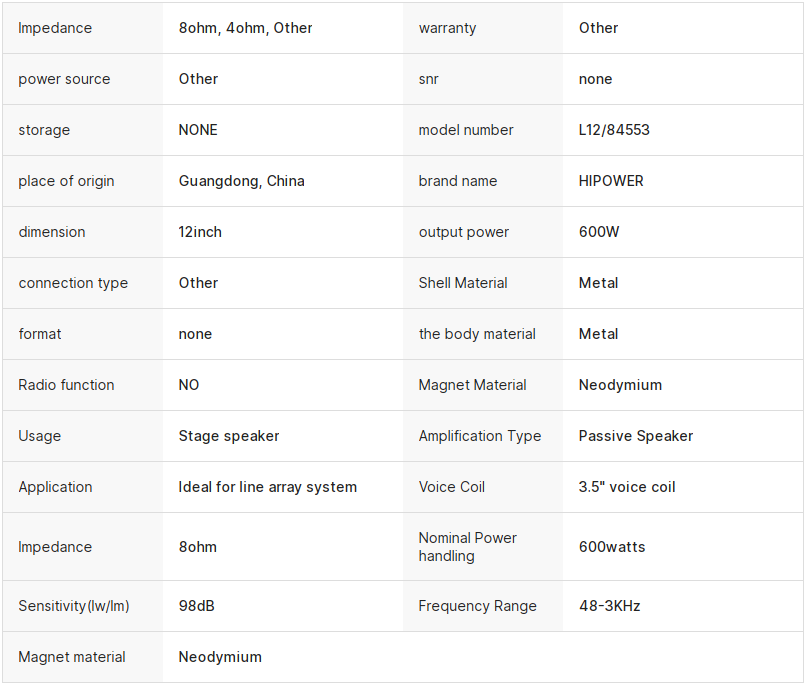

Key attributes


Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description





General Specifications

Nominal Diameter
305/12
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
600
Watts

Program Power2
1200
Watts

Sensitivity(lw/lm)3
98
dB

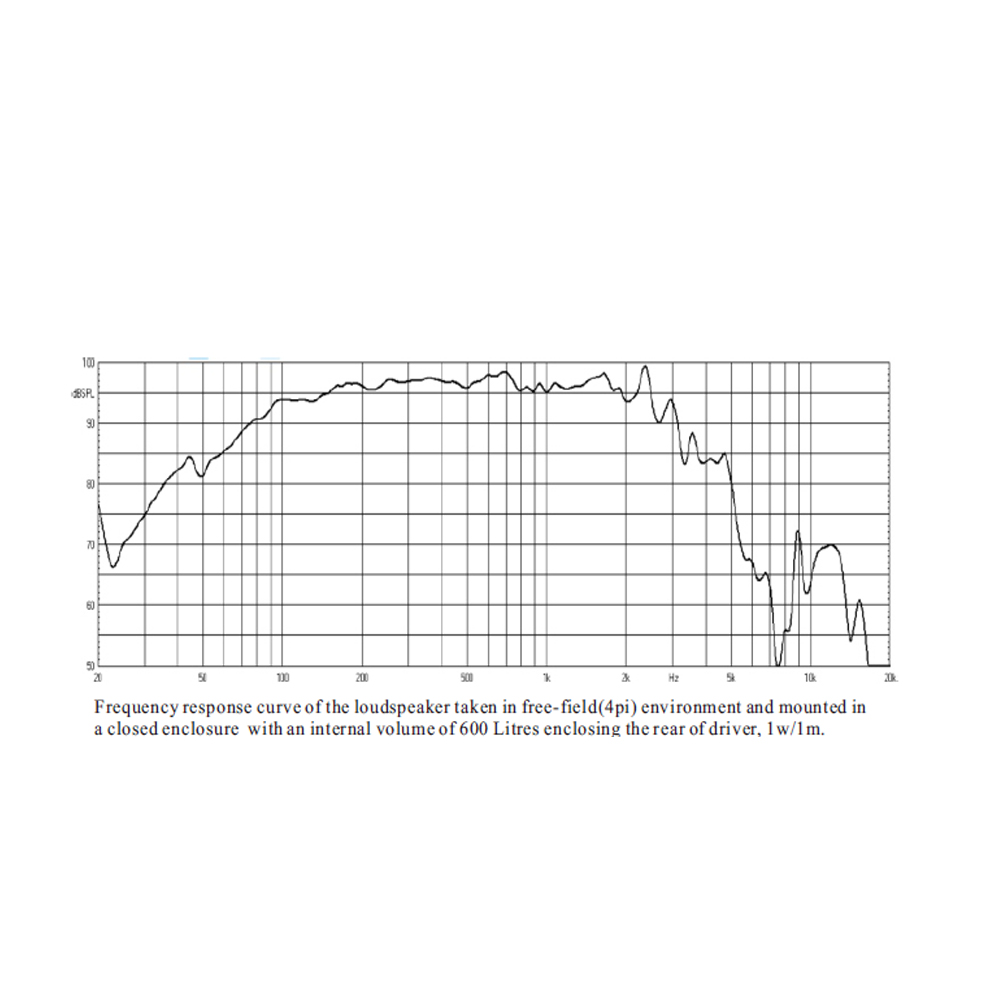

Frequency Range4
50-3000
Hz

Minimum Impedance(Zmin)
6.7
ohm

Voice Coil Diameter
86/3.5
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
18
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.3
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
52.5
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
10.2

Electrical factor
Qes
0.27

Total factor
Qts
0.26

Mechanical compliance
Cms
0.116
mm/N
Mechanical resistance of suspension losses
Rms
2.46
mech-ohm
Effective Moving Mass
Mms
76.78
gr
Half-space efficiency
Eff
2.66
%
BL Factor
BL
22.18
T.m
Equivalent Cas air load
Vas
47.6
liters
Effective piston area
Sd
0.0563
m2
Max.linear excursion
Xmax
7
mm
Voice-coil inductance
LelK
1.27
mH

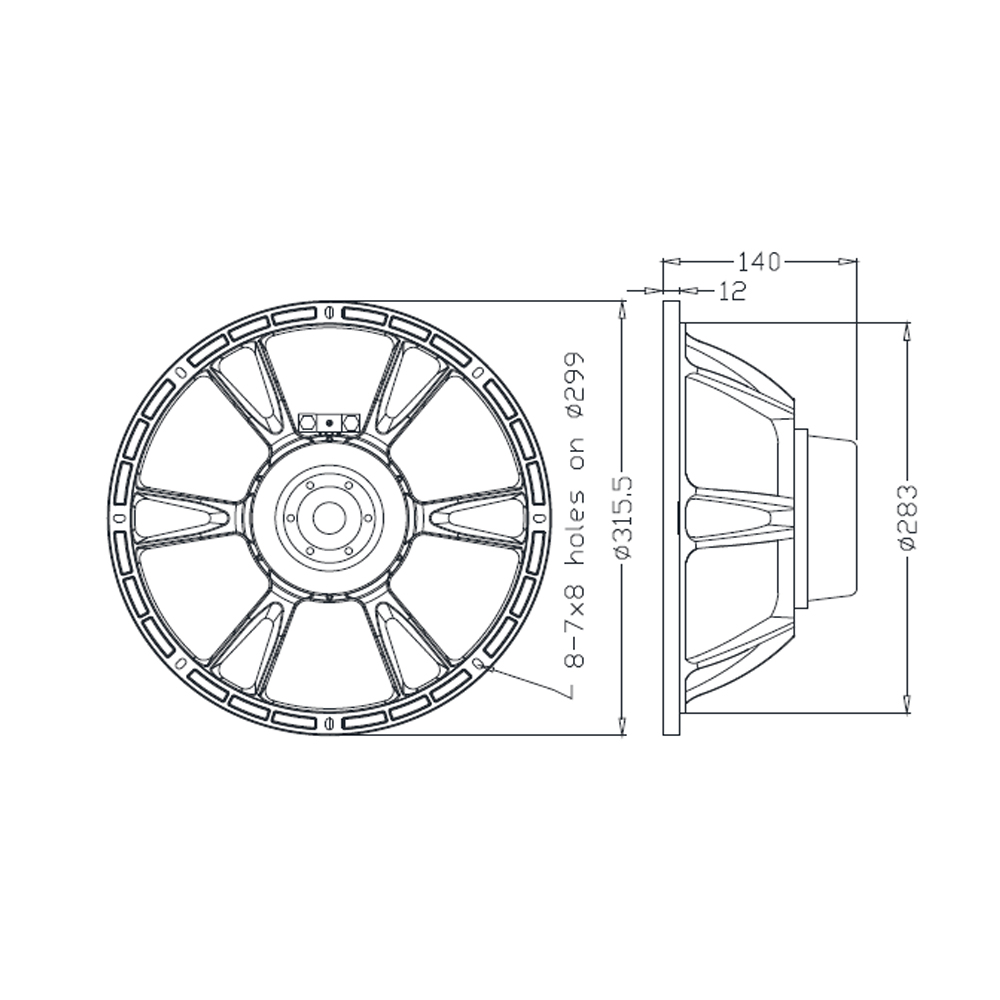

Mounting Information
Overall Diameter
315.5
mm

Bolt Circle Diameter
299
mm

Bolt Hole Diameter
7*8
mm

Baffle Cutout Diameter
283
mm

Overall Depth
140
mm

Net Weight
5.2
Kg

Gross Weight
7.2
KG

Carton Box Size
335*335*165
mm
