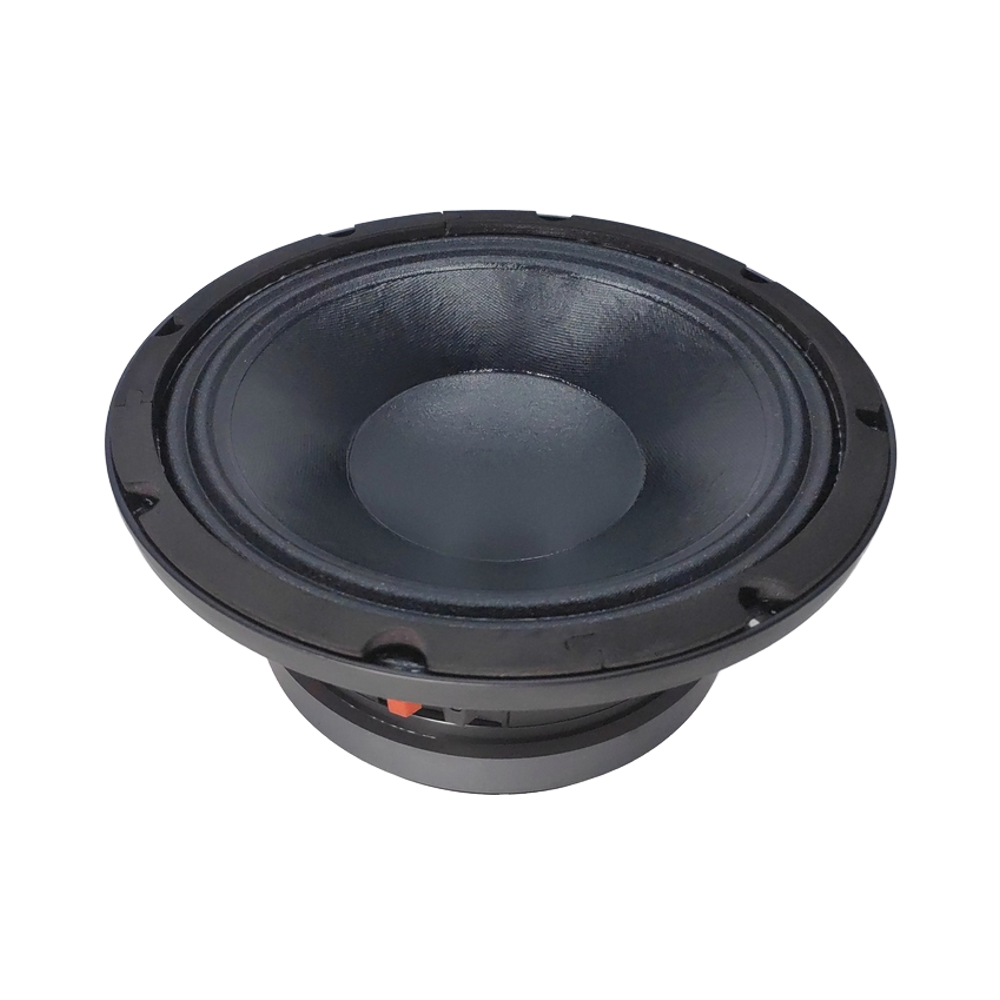

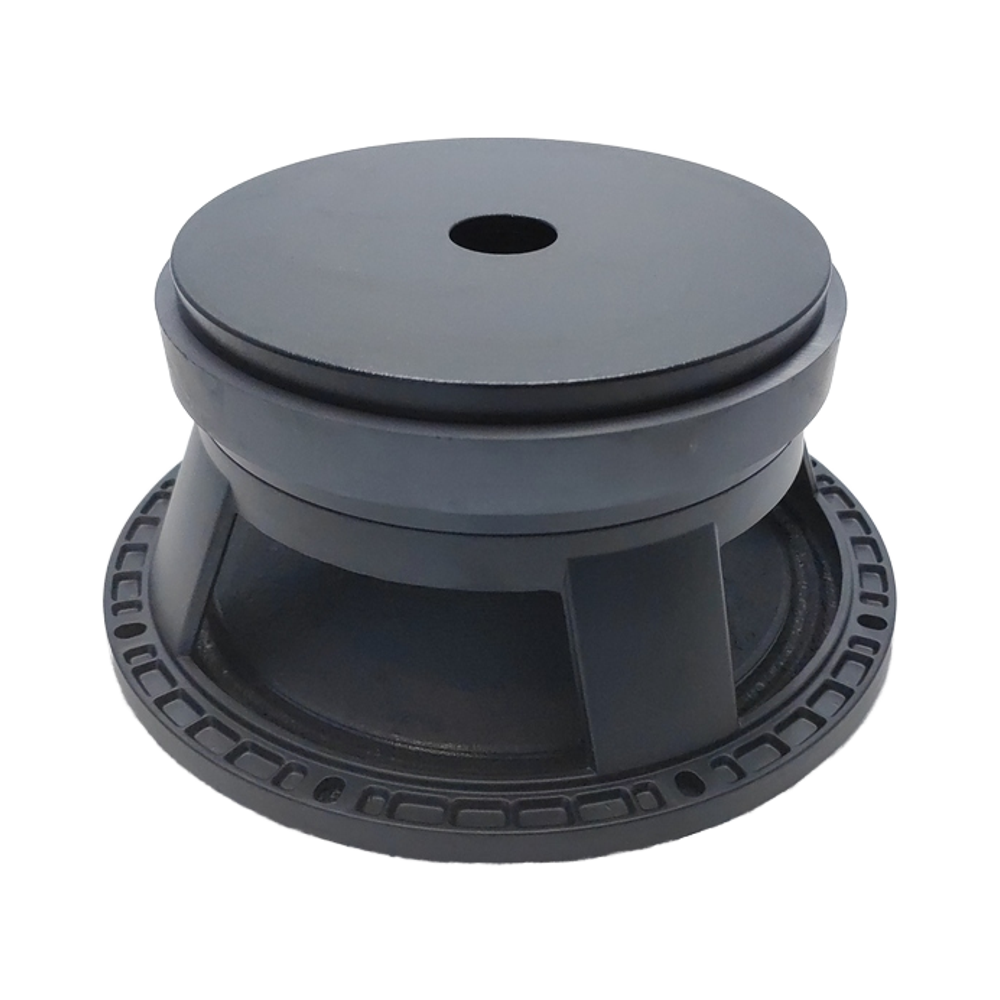

L10/B388 High Quality Pa Speaker 10 Inch Mid-bass Woofer Loudspeaker For Line Array Sound Systems, b&c Speaker Driver Unit, 16Ohm

shared：



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
250/10
mm/inch

Rated Impedance
16
ohm

Nominal Power handling1
300
Watts

Program Power2
600
Watts

Sensitivity(lw/lm)3
95
dB

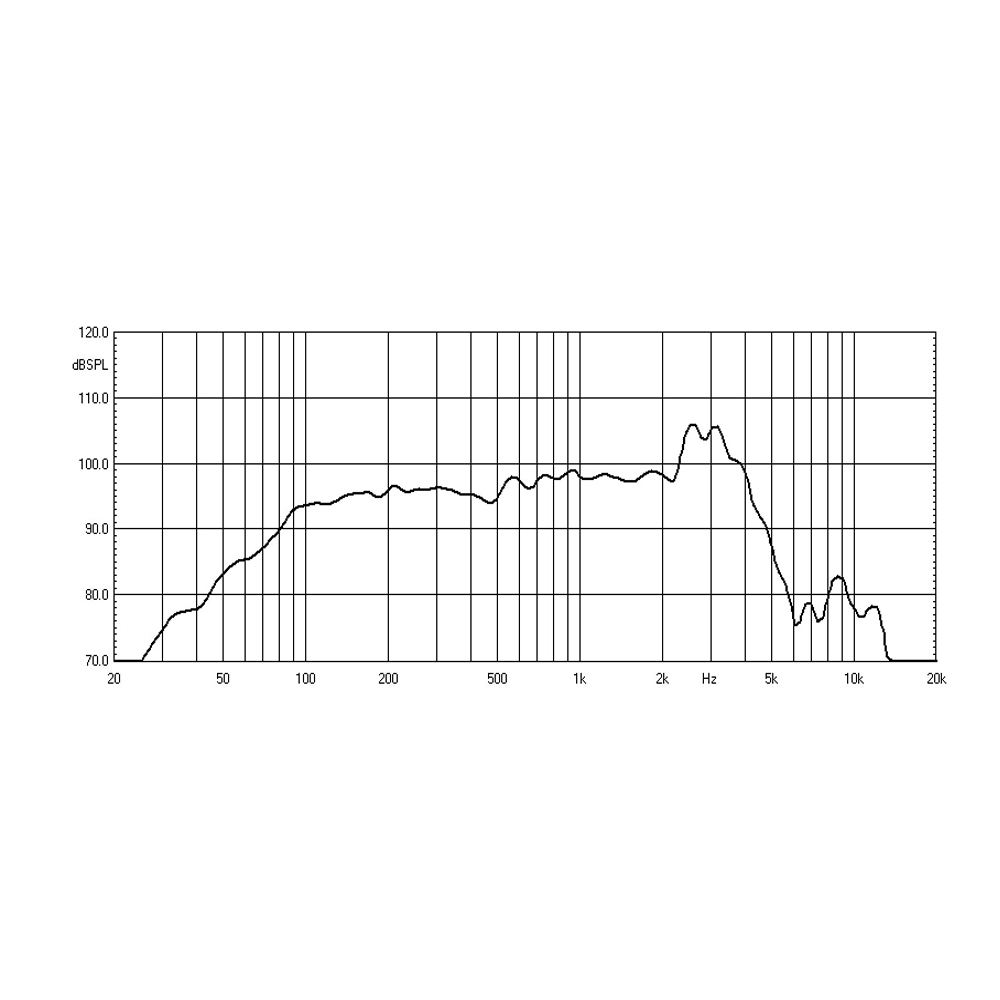

Frequency Range4
61.5-3.5K
Hz

Minimum Impedance(Zmin)
15.2
ohm

Voice Coil Diameter
75/3
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
17
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.0
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
61.5
Hz
DC resistance
Re
12
ohm
Mechanical factor
Qms
7.75

Electrical factor
Qes
0.44

Total factor
Qts
0.41

Mechanical compliance
Cms
0.16
mm/N
Mechanical resistance of suspension losses
Rms
2.05
mech-ohm
Effective Moving Mass
Mms
41
gr
Half-space efficiency
Eff
1.5
%
BL Factor
BL
21
T.m
Equivalent Cas air load
Vas
29
liters
Effective piston area
Sd
0.0356
m2
Max.linear excursion
Xmax
6
mm
Voice-coil inductance
LelK
1.27
mH

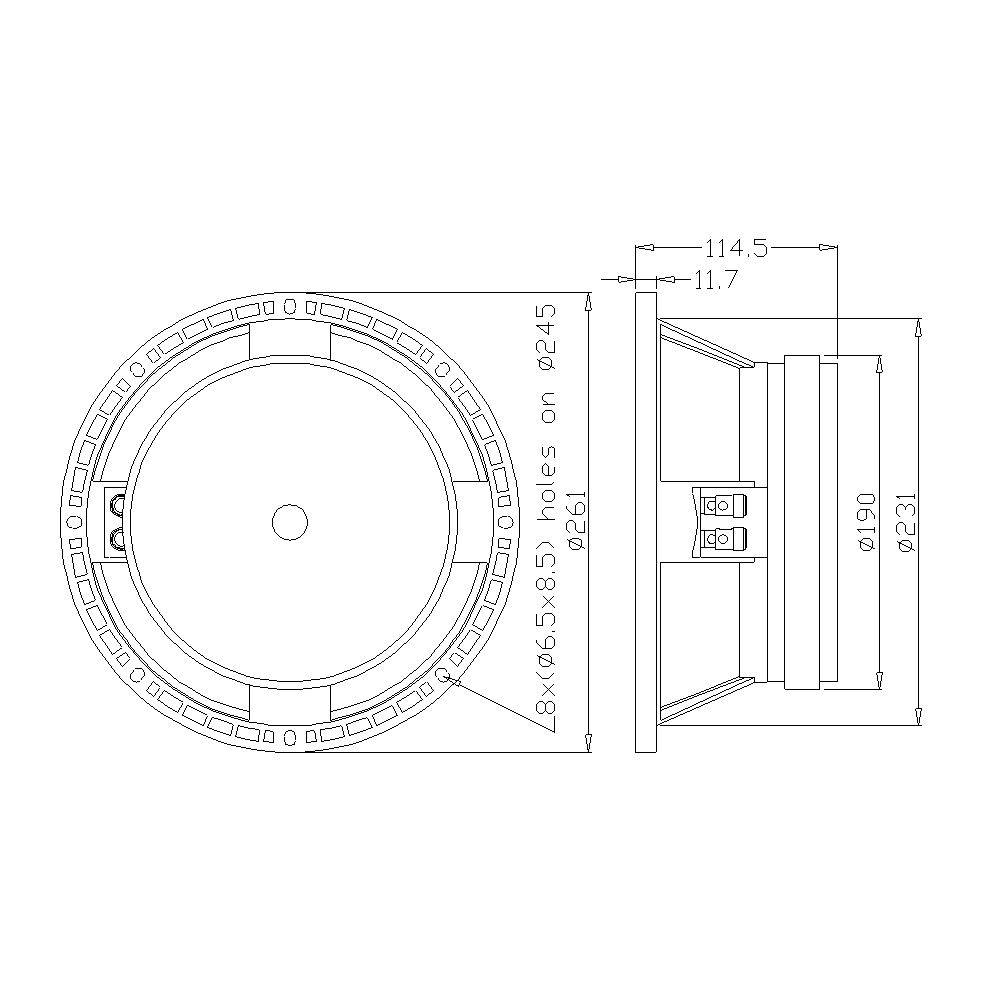

Mounting Information
Overall Diameter
261
mm

Bolt Circle Diameter
245
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
231
mm

Overall Depth
114.5
mm

Net Weight
7.3
Kg

Gross Weight
7.7
KG

Carton Box Size
275*275*130
mm
