L10/83225 PA 10 Inch Speaker For Line Array Speaker Systems, With 3'' Voice Coil, High Power 350W

shared：



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
254/10
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
350
Watts

Program Power2
700
Watts

Sensitivity(lw/lm)3
97
dB

Frequency Range4
55-3500
Hz

Minimum Impedance(Zmin)
7.01
ohm

Voice Coil Diameter
76/3
mm/inch

Voice Coil Material
Copper Clad Aluminum


Voice Coil Winding Depth
18
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.0
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
56.5
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
13.65

Electrical factor
Qes
0.2706

Total factor
Qts
0.265

Mechanical compliance
Cms
0.1999
mm/N
Mechanical resistance of suspension losses
Rms
1.0318
mech-ohm
Effective Moving Mass
Mms
39.68
gr
Half-space efficiency
Eff
2.399
%
BL Factor
BL
17.075
T.m
Equivalent Cas air load
Vas
27.85
liters
Effective piston area
Sd
0.03664
m2
Max.linear excursion
Xmax
6.5
mm
Voice-coil inductance
Le1k
0.9823
mH

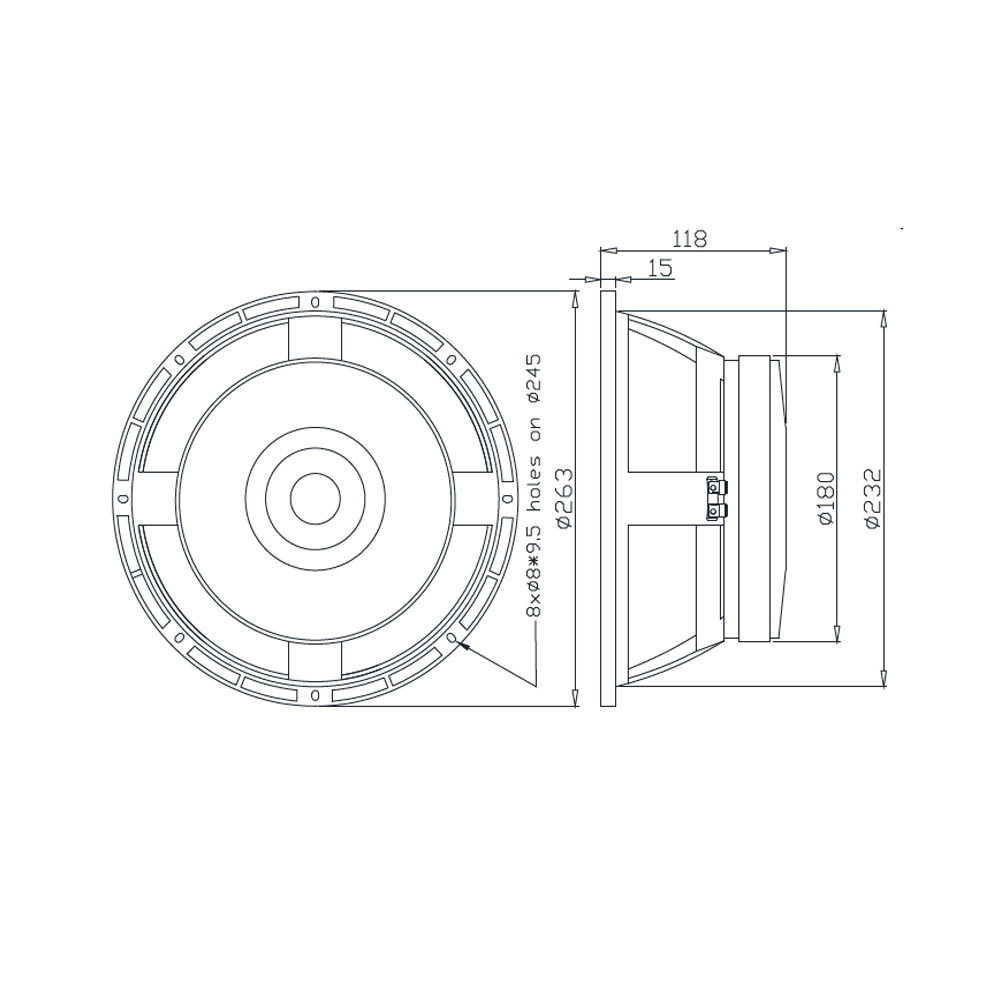

Mounting Information
Overall Diameter
263
mm

Bolt Circle Diameter
245
mm

Bolt Hole Diameter
8*9.5
mm

Baffle Cutout Diameter
232
mm

Overall Depth
118
mm

Net Weight 36Kg
6.5
kg

Shipping Weight
7.5
kg

Shipping Box
275*275*130
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
