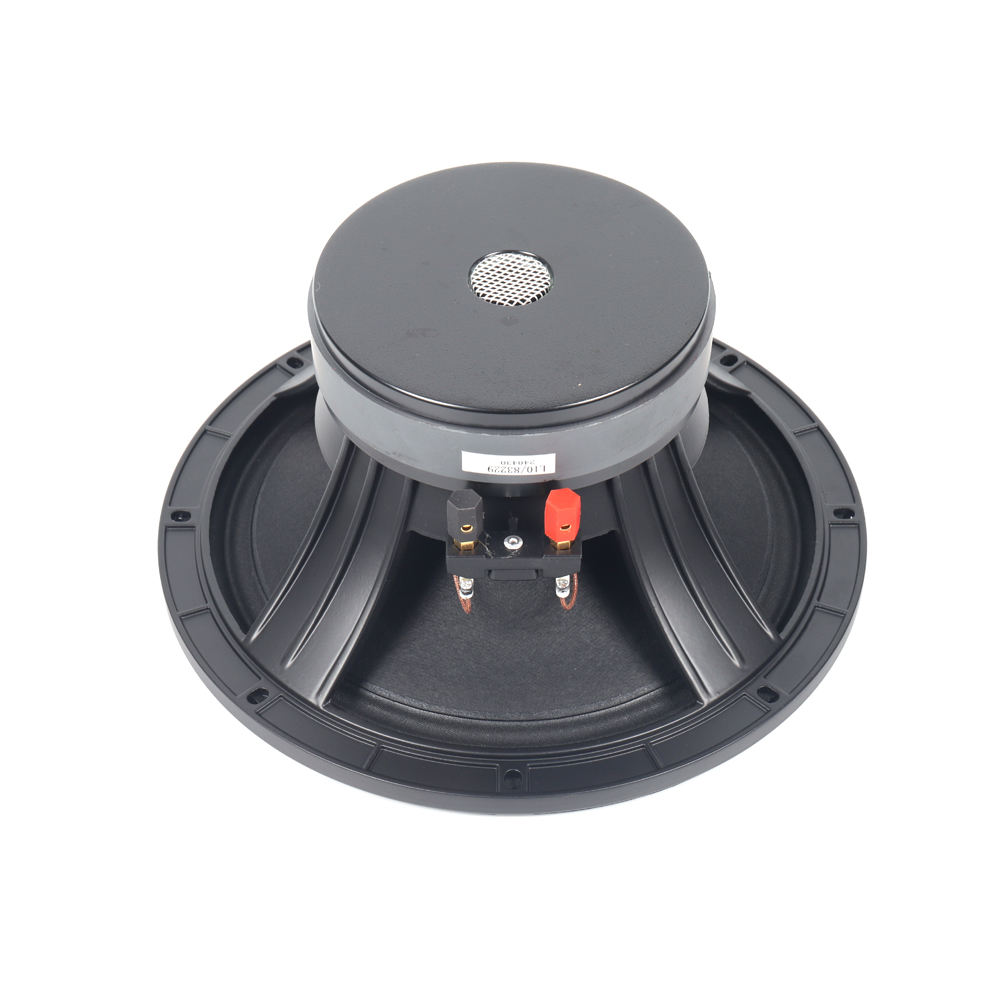

L10/83329 10 Inch PA Speaker Woofer For High Quality Compact 2-way Systems

shared：


  • Hipower

  • Guangdong

  • 30days

  • 5000pcs/month

1. 360 W continuous program power handling
2.95dB Sensitivity 1w/1m

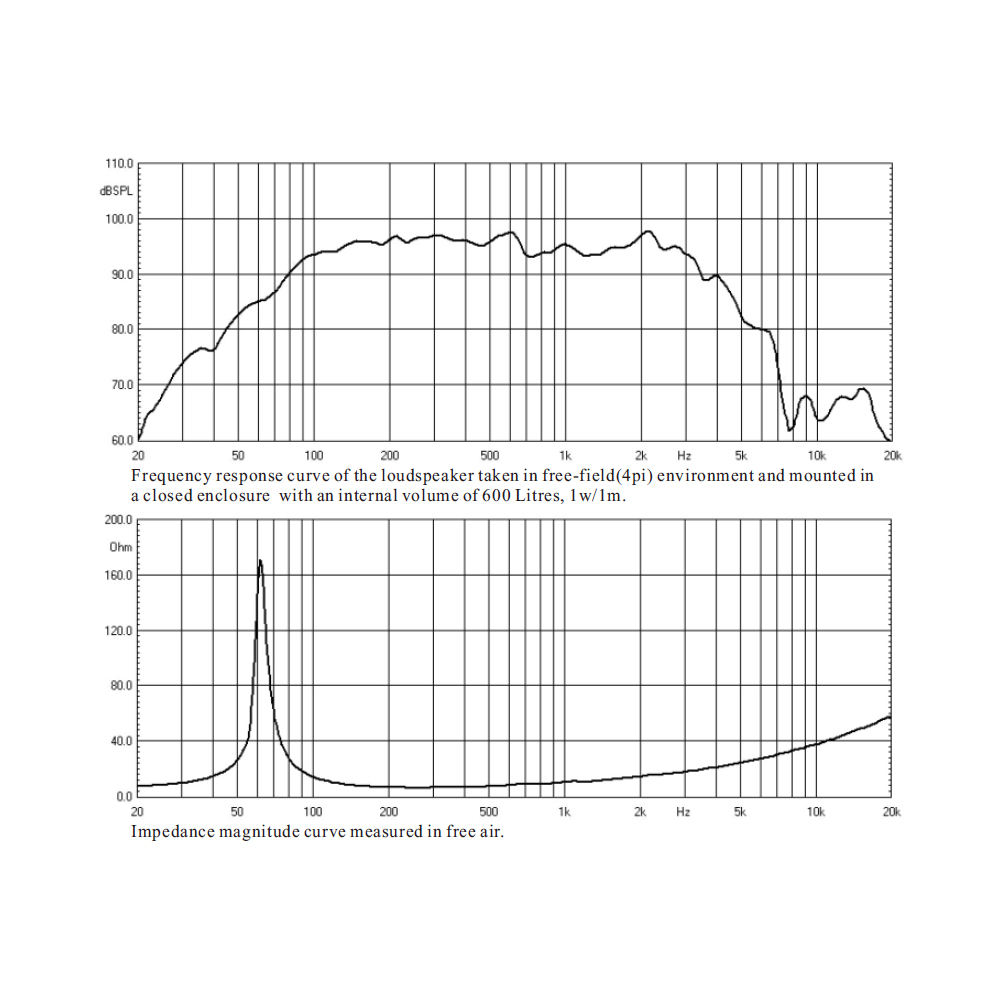

3. 61Hz~3500Hz Frequency range
4. 50mm(2 in) copper voice coil with fiberglass former
5. Ideal for high quality compact 2-way systems

Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
250/10
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
180
Watts

Program Power2
360
Watts

Sensitivity(lw/lm)3
95
dB

Frequency Range4
61-3500
Hz

Minimum Impedance(Zmin)
6.1
ohm

Voice Coil Diameter
50/2
mm/inch

Voice Coil Material
Copper


Voice Coil Winding Depth
17
mm

Number of layers
2(inside/outside)


Magnet gap depth
8
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
61
Hz
DC resistance
Re
5.3
ohm
Mechanical factor
Qms
11.8

Electrical factor
Qes
0.38

Total factor
Qts
0.37

Mechanical compliance
Cms
0.19
mm/N
Mechanical resistance of suspension losses
Rms
1.15
mech-ohm
Effective Moving Mass
Mms
34.9
gr
Half-space efficiency
Eff
1.95
%
BL Factor
BL
13.8
T.m
Equivalent Cas air load
Vas
32.2
liters
Effective piston area
Sd
0.035
m2
Max.linear excursion
Xmax
6
mm
Voice-coil inductance
Le1k
0.95
mH

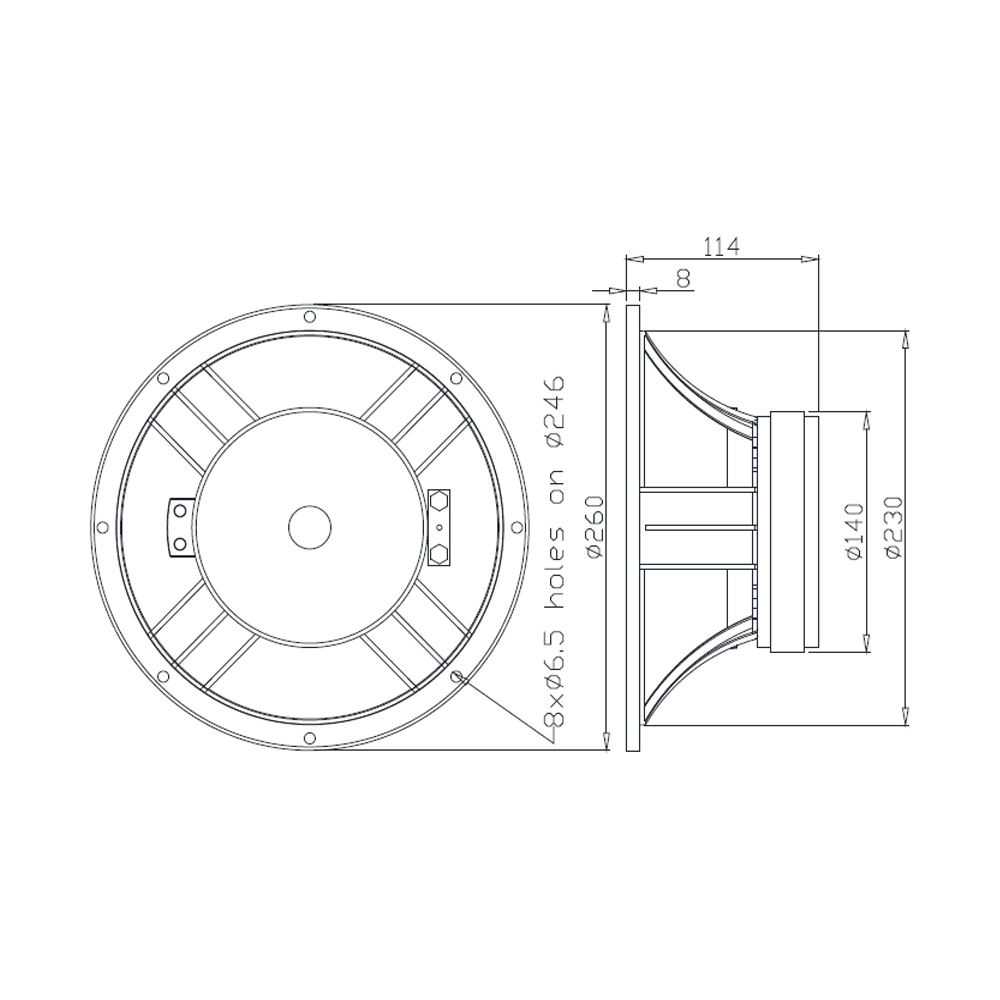

Mounting Information
Overall Diameter
260
mm

Bolt Circle Diameter
246
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
230
mm

Overall Depth
114
mm

Net Weight 36Kg
3.6
kg

Shipping Weight
4.0
kg

Shipping Box
275*275*130
mm
