10 Inch Pa Speaker, High-power Neodymium Woofer Speaker for Line Array Sound Systems

Products > 10inch Speaker > 10 Inch Pa Speaker, High-power Neodymium Woofer Speaker for Line Array Sound Systems
    • 1
    • 2
    • 3

10 Inch Pa Speaker, High-power Neodymium Woofer Speaker for Line Array Sound Systems

shared：

About this product

  • · High-Quality Audio Performance: These 1.4 inch compact horn tweeters deliver exceptional sound quality, ideal for outdoor speaker box systems and professional applications, with a frequency range of 900-18000Hz and sensitivity of 108db.

  • · Heavy-Duty Construction: Built with a neodymium magnet and heavy-duty design, these tweeters can handle high power levels, with a nominal power handling of 60W and a peak power of 1200W, making them suitable for demanding outdoor use.

  • · Multi-Application Compatibility: The audio tweeters feature a multi-mounting type design, allowing for flexibility in installation, and can be used in various outdoor settings, as per customer's specifications.

  • · Professional Grade: Engineered for professional applications, these tweeters are designed to meet the requirements of high-end sound systems, with a focus on delivering clear and crisp audio output.

  • · Durable and Long-Lasting: With a robust design and high-quality materials, these tweeters are built to withstand harsh outdoor environments and provide reliable performance over an extended period, as requested by the customer.


Key attributes

  Place of Origin  Guangdong, China  Brand Name  HIPOWER
  Model Number  H44-8069  Mounting Type  Multi


Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
254/10
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
300
Watts

Program Power2
600
Watts

Sensitivity(lw/lm)3
97
dB

Frequency Range4
65-4000
Hz

Minimum Impedance(Zmin)
6.91
ohm

Voice Coil Diameter
65/2.5
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
16
mm

Number of layers
2(inside/outside)


Magnet gap depth
9
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.25
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
68.9
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
11.05

Electrical factor
Qes
0.36

Total factor
Qts
0.35

Mechanical compliance
Cms
0.16
mm/N
Mechanical resistance of suspension losses
Rms
1.35
mech-ohm
Effective Moving Mass
Mms
33.61
gr
Half-space efficiency
Eff
2.53
%
BL Factor
BL
14.99
T.m
Equivalent Cas air load
Vas
27.85
liters
Effective piston area
Sd
0.0363
m2
Max.linear excursion
Xmax
5.0
mm
Voice-coil inductance
LelK
0.768
mH

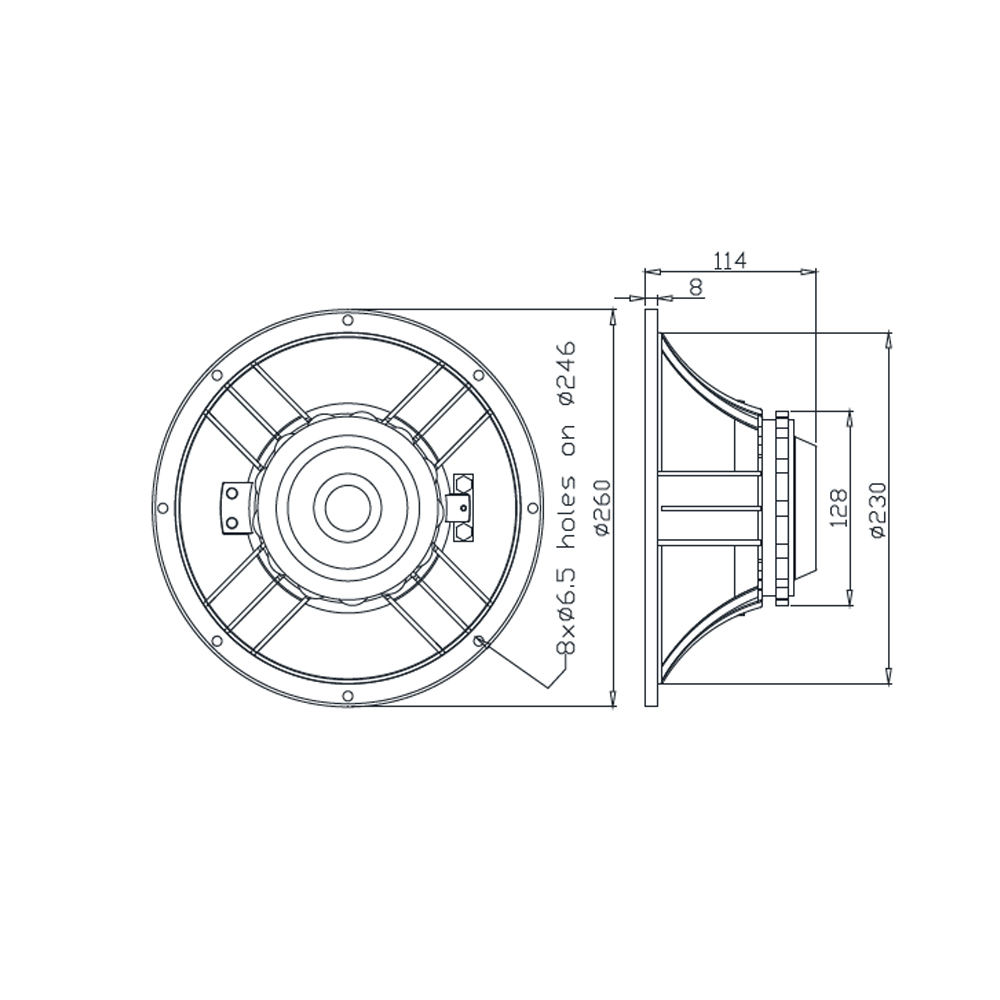

Mounting Information
Overall Diameter
260
mm

Bolt Circle Diameter
246
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
230
mm

Overall Depth
114
mm

Net Weight
2.6
Kg

Gross Weight
3.6
KG

Carton Box Size
275*275*130
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
