L10/83315 Professional 10 Inch Line Array Speaker Driver, 10 Inch Neodymium Speaker, Mid-bass Woofer Pa Speakers Transducer

Products > 10inch Speaker > L10/83315 Professional 10 Inch Line Array Speaker Driver, 10 Inch Neodymium Speaker, Mid-bass Woofer Pa Speakers Transducer
    • 1
    • 2
    • 3
    • 4

L10/83315 Professional 10 Inch Line Array Speaker Driver, 10 Inch Neodymium Speaker, Mid-bass Woofer Pa Speakers Transducer

shared：



Packaging and delivery

Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
254/10
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
300
Watts

Program Power2
600
Watts

Sensitivity(lw/lm)3
97
dB

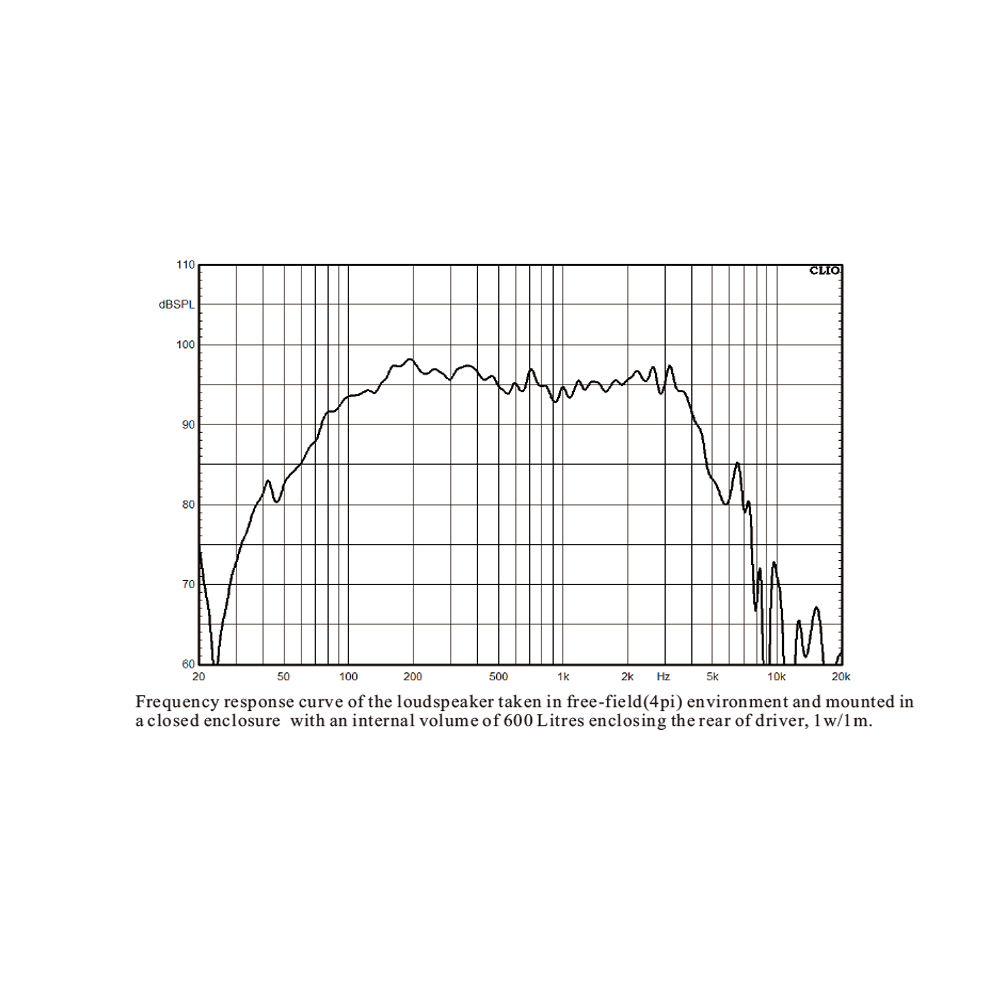

Frequency Range4
65-4000
Hz

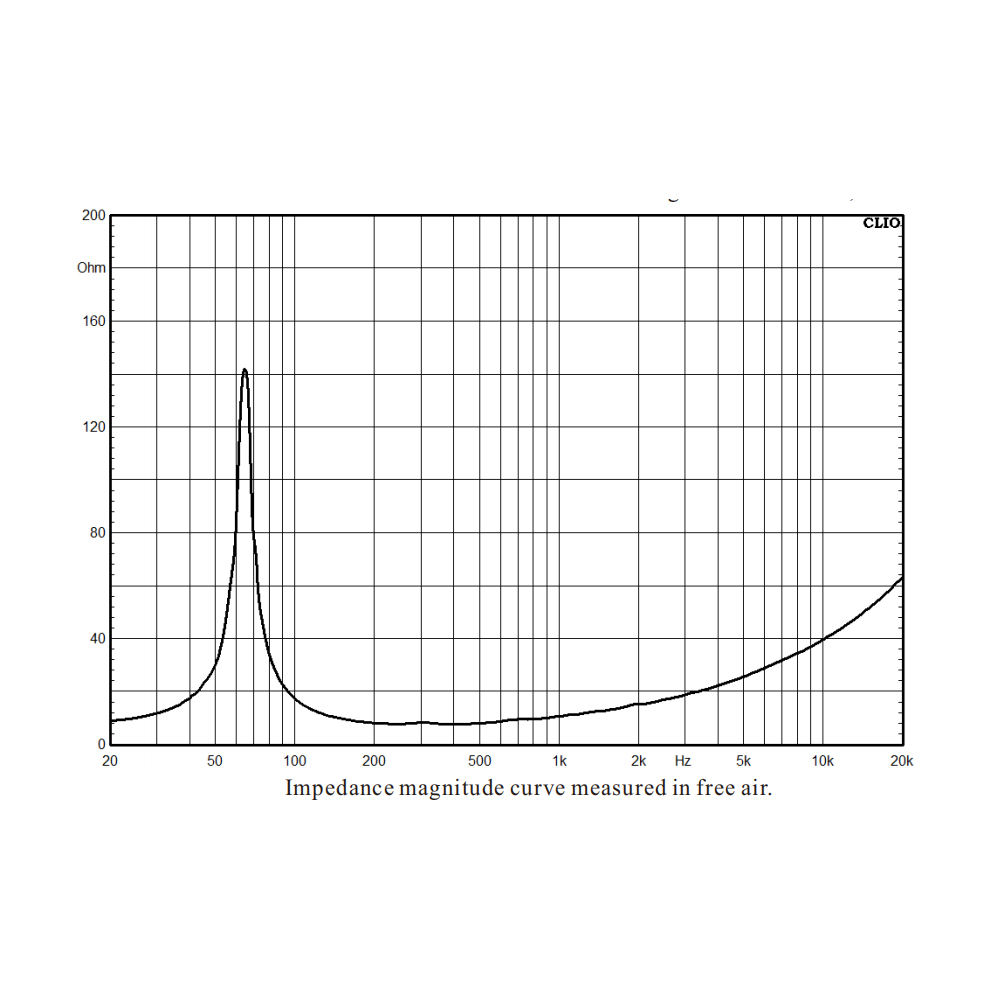

Minimum Impedance(Zmin)
7.54
ohm

Voice Coil Diameter
65/2.5
mm/inch

Voice Coil Material
Copper
Voice Coil Winding Depth
16
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.15
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
64.5
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
9.3

Electrical factor
Qes
0.38

Total factor
Qts
0.36

Mechanical compliance
Cms
0.179
mm/N
Mechanical resistance of suspension losses
Rms
1.47
mech-ohm
Effective Moving Mass
Mms
33.97
gr
Half-space efficiency
Eff
2.53
%
BL Factor
BL
14.19
T.m
Equivalent Cas air load
Vas
33.02
liters
Effective piston area
Sd
0.0363
m2
Max.linear excursion
Xmax
5.0
mm
Voice-coil inductance
LelK
0.8417
mH

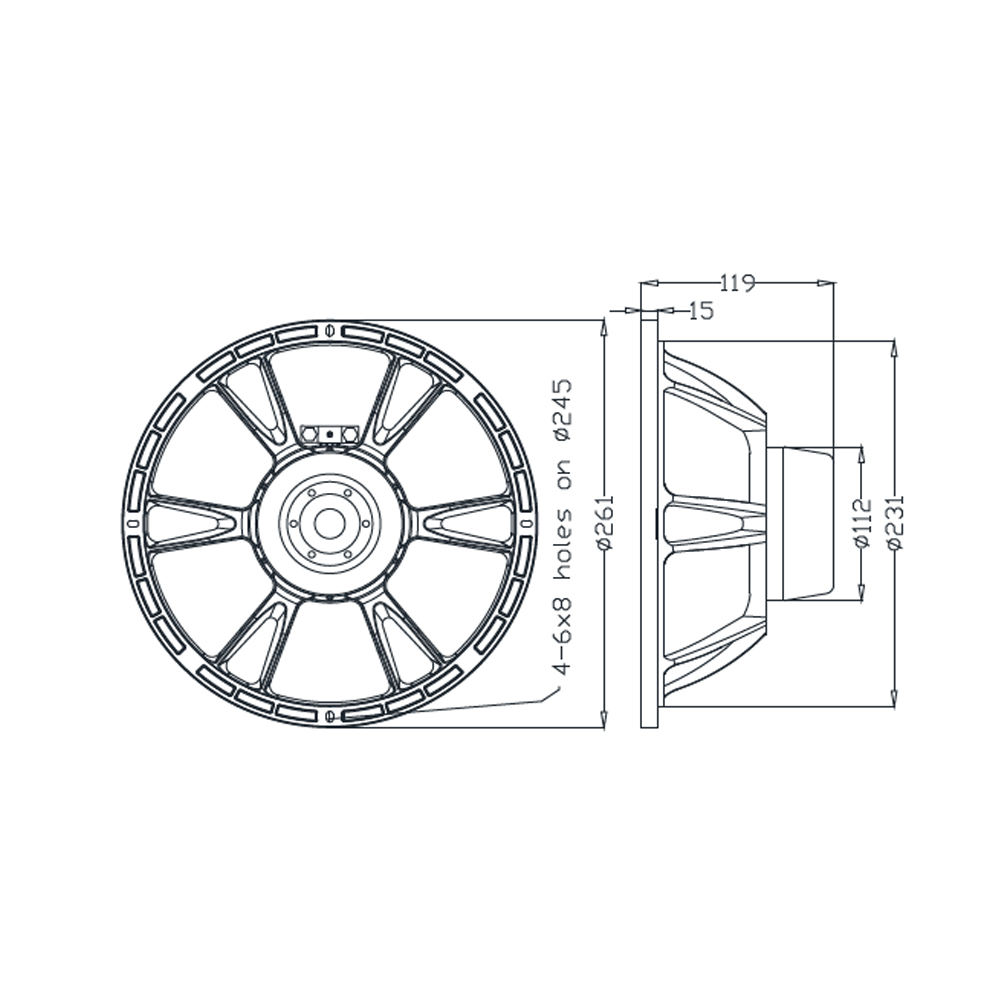

Mounting Information
Overall Diameter
261
mm

Bolt Circle Diameter
245
mm

Bolt Hole Diameter
6*8
mm

Baffle Cutout Diameter
231
mm

Overall Depth
119
mm

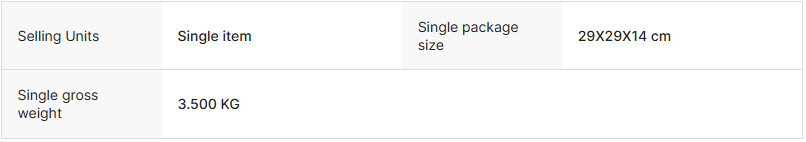

Net Weight
2.6
Kg

Gross Weight
3.5
KG

Carton Box Size
275*275*130
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
