L10/83339 High Quality Outdoor Pa Speaker 10 Inch Mid-bass Woofer Speaker For Line Array Sound Systems, b&c Speaker Driver Unit, 8Ohm,98dB

shared：


Packaging and delivery

Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
254/10
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
400
Watts

Program Power2
800
Watts

Sensitivity(lw/lm)3
98
dB

Frequency Range4
65-3.5K
Hz

Minimum Impedance(Zmin)
7.58
ohm

Voice Coil Diameter
76/3
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
18
mm

Number of layers
2(inside/outside)


Magnet gap depth
10
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
66.68
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
13.55

Electrical factor
Qes
0.266

Total factor
Qts
0.26

Mechanical compliance
Cms
0.16
mm/N
Mechanical resistance of suspension losses
Rms
1.1
mech-ohm
Effective Moving Mass
Mms
35.63
gr
Half-space efficiency
Eff
3.16
%
BL Factor
BL
17.8
T.m
Equivalent Cas air load
Vas
29.5
liters
Effective piston area
Sd
0.0366
m2
Max.linear excursion
Xmax
6.5
mm
Voice-coil inductance
LelK
0.8715
mH

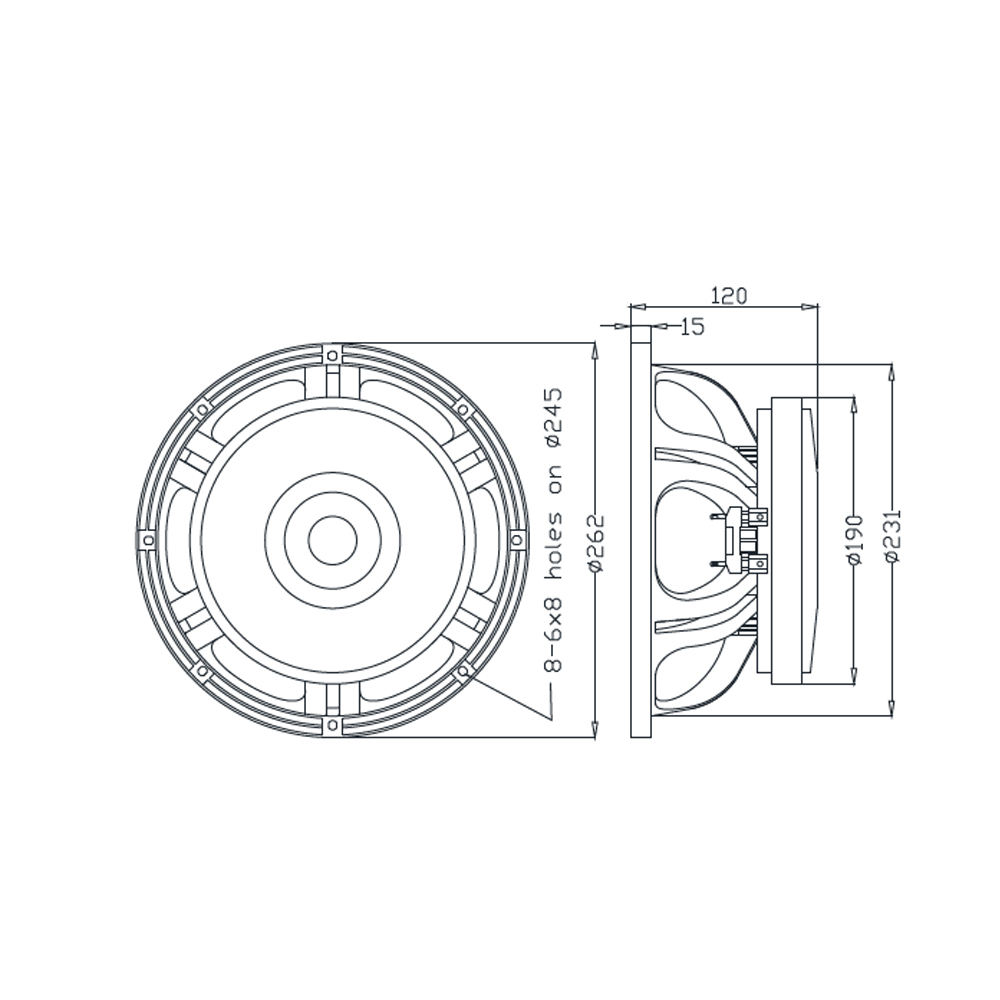

Mounting Information
Overall Diameter
262
mm

Bolt Circle Diameter
245
mm

Bolt Hole Diameter
6*8
mm

Baffle Cutout Diameter
231
mm

Overall Depth
120
mm

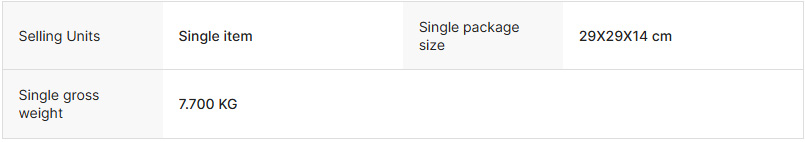

Net Weight
6.5
Kg

Gross Weight
7.7
KG

Carton Box Size
275*275*130
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
