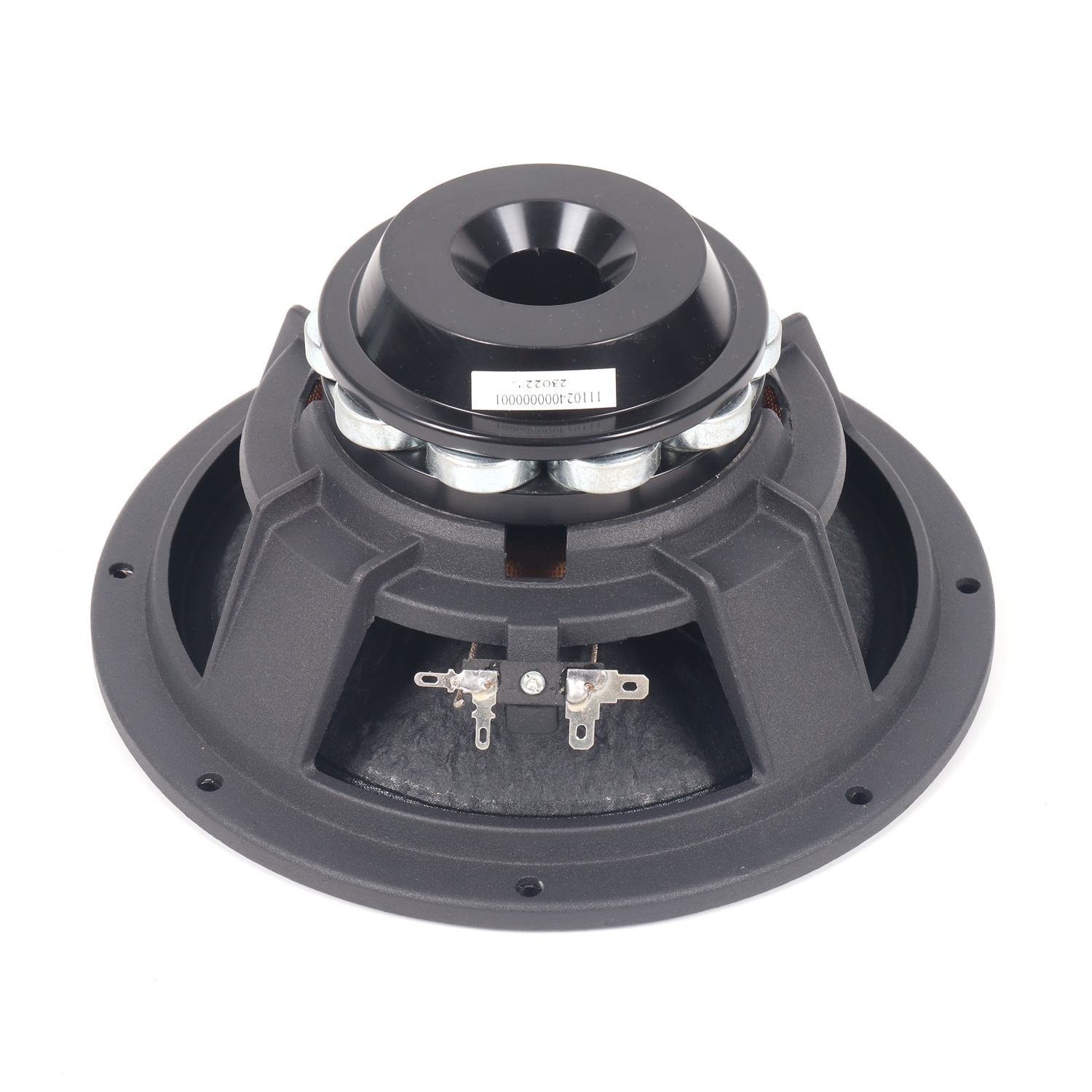

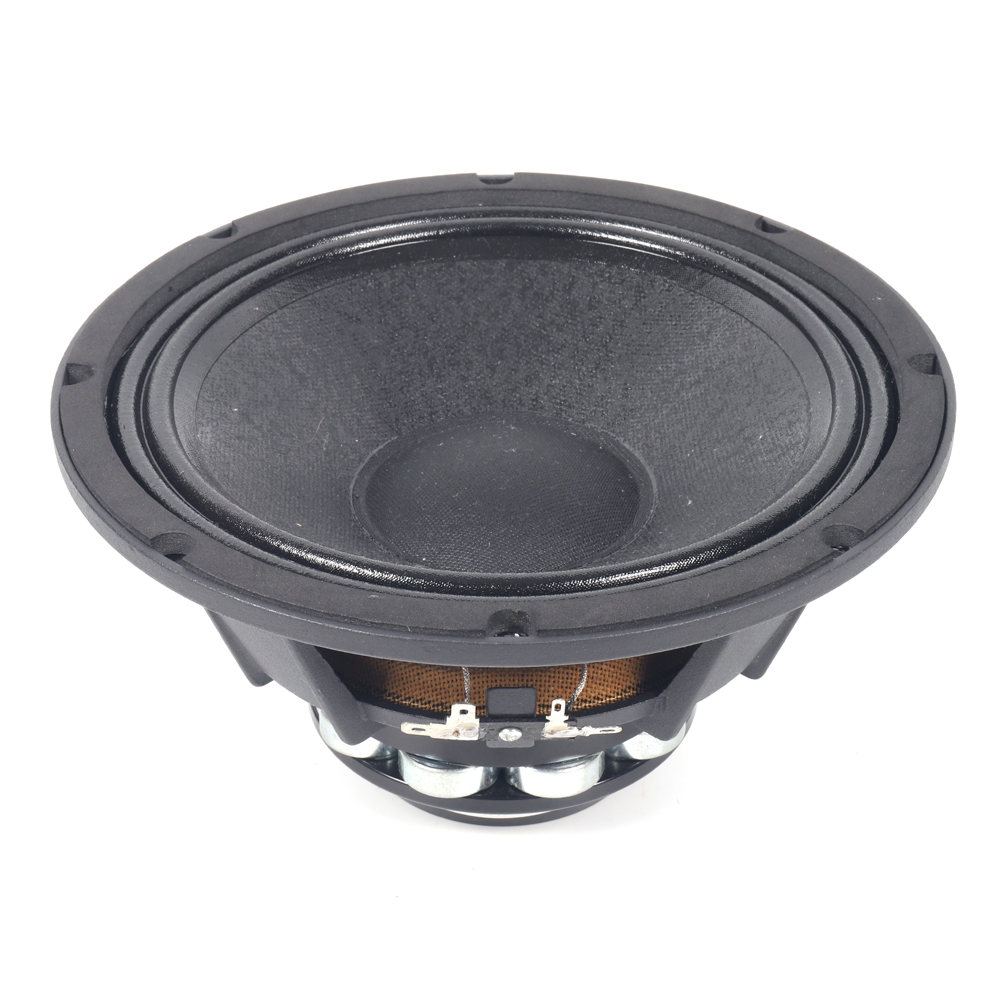

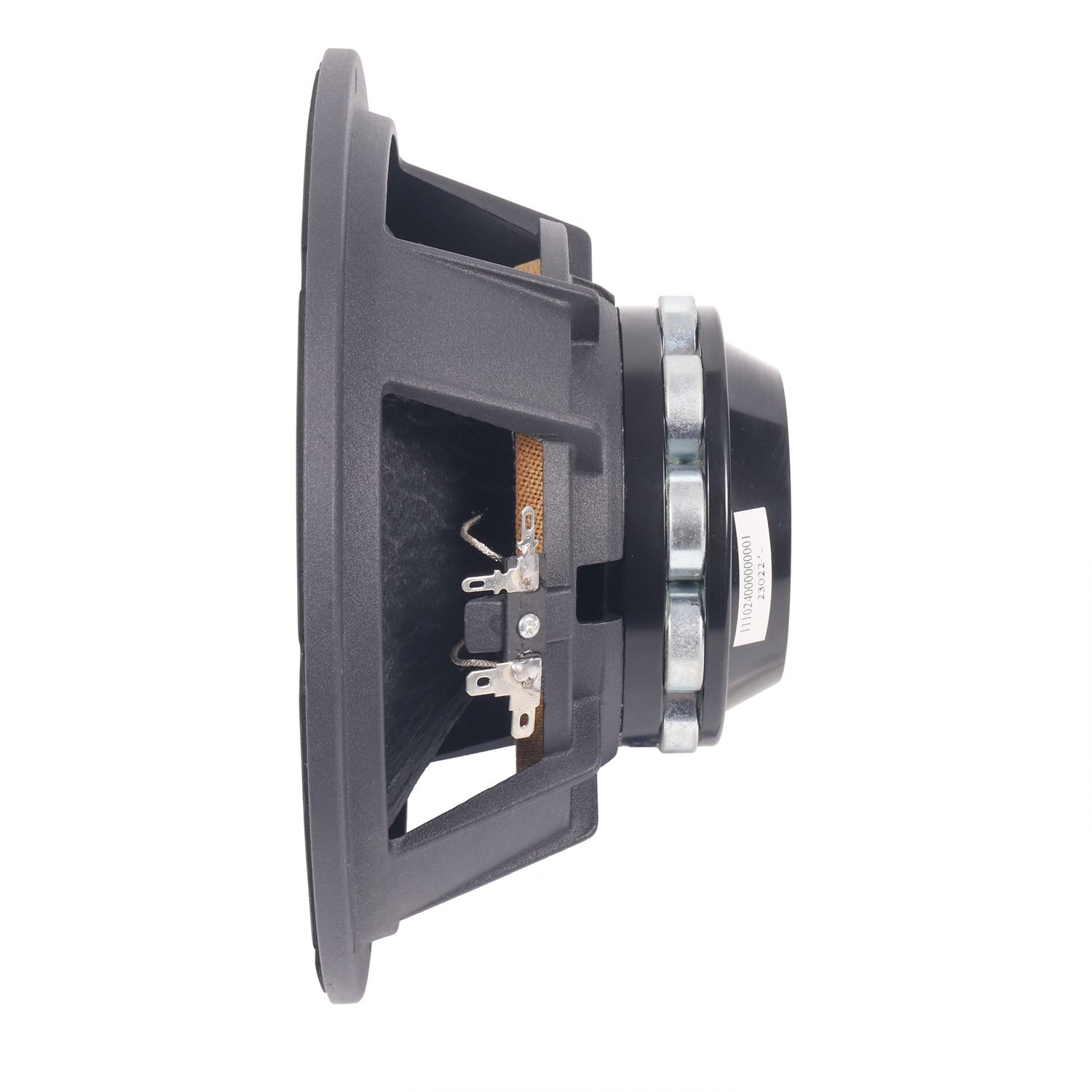

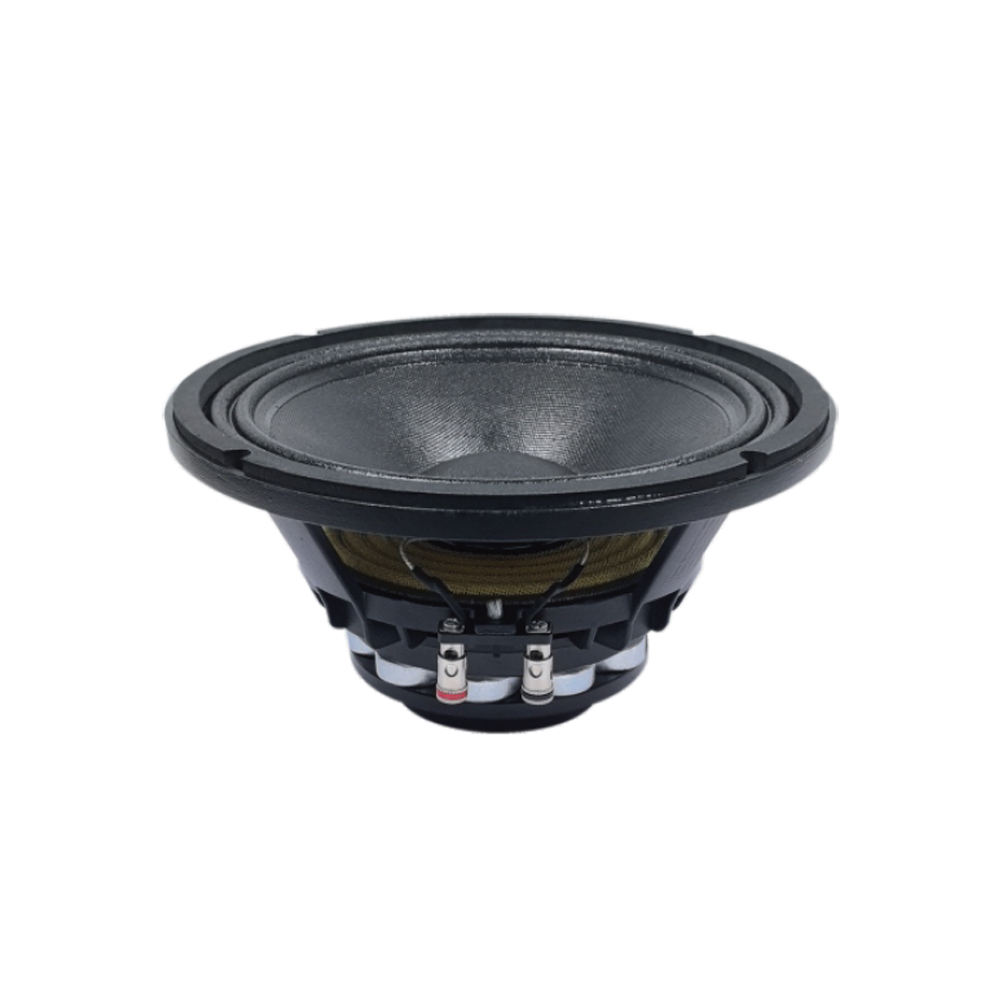

L08/82178 8Inch loudspeaker

shared：

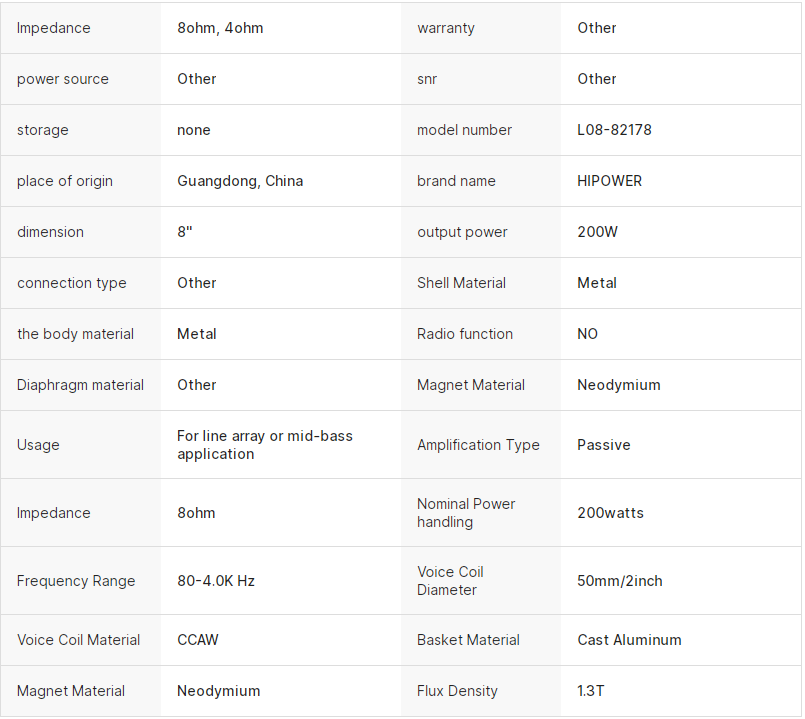

Key attributes




Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 1000 pieces)

Customized packaging (Min. order: 1000 pieces)

Graphic customization (Min. order: 1000 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
203/8
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
200
Watts

Program Power2
400
Watts

Sensitivity(lw/lm)3
96
dB

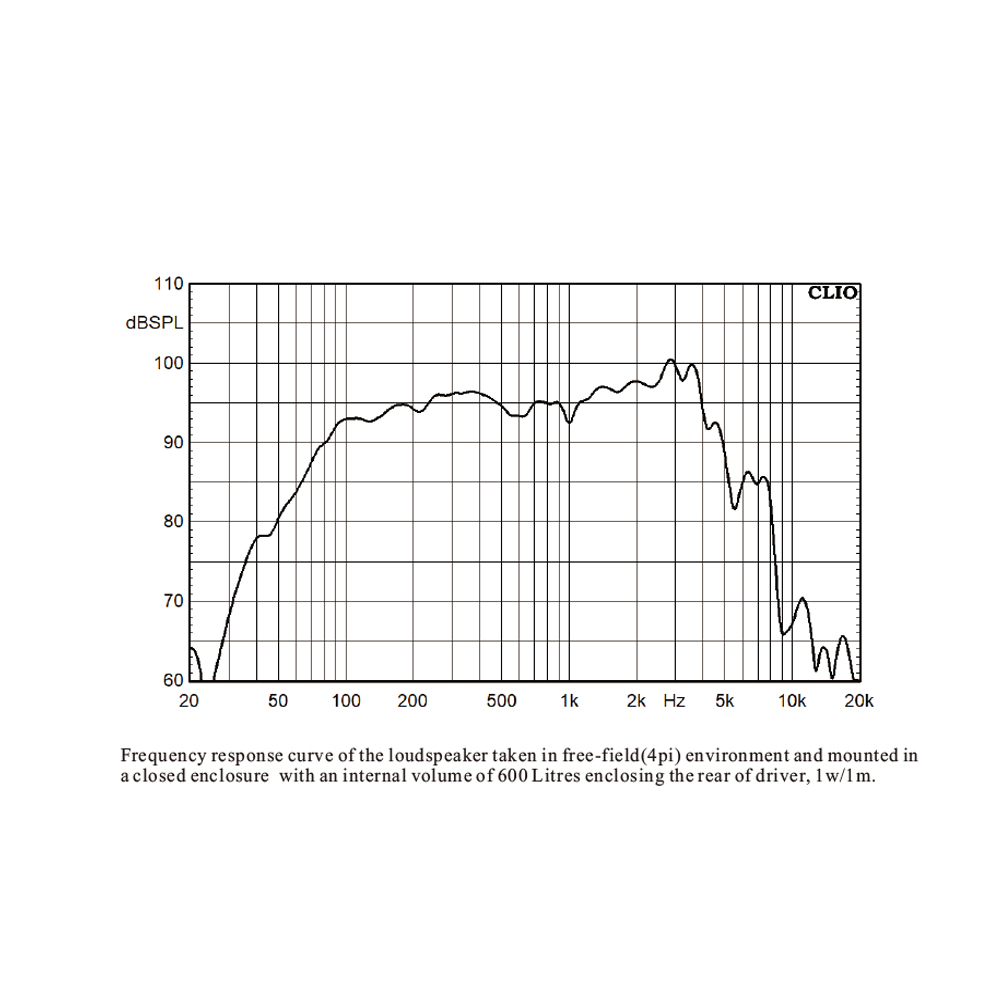

Frequency Range4
80-4000
Hz

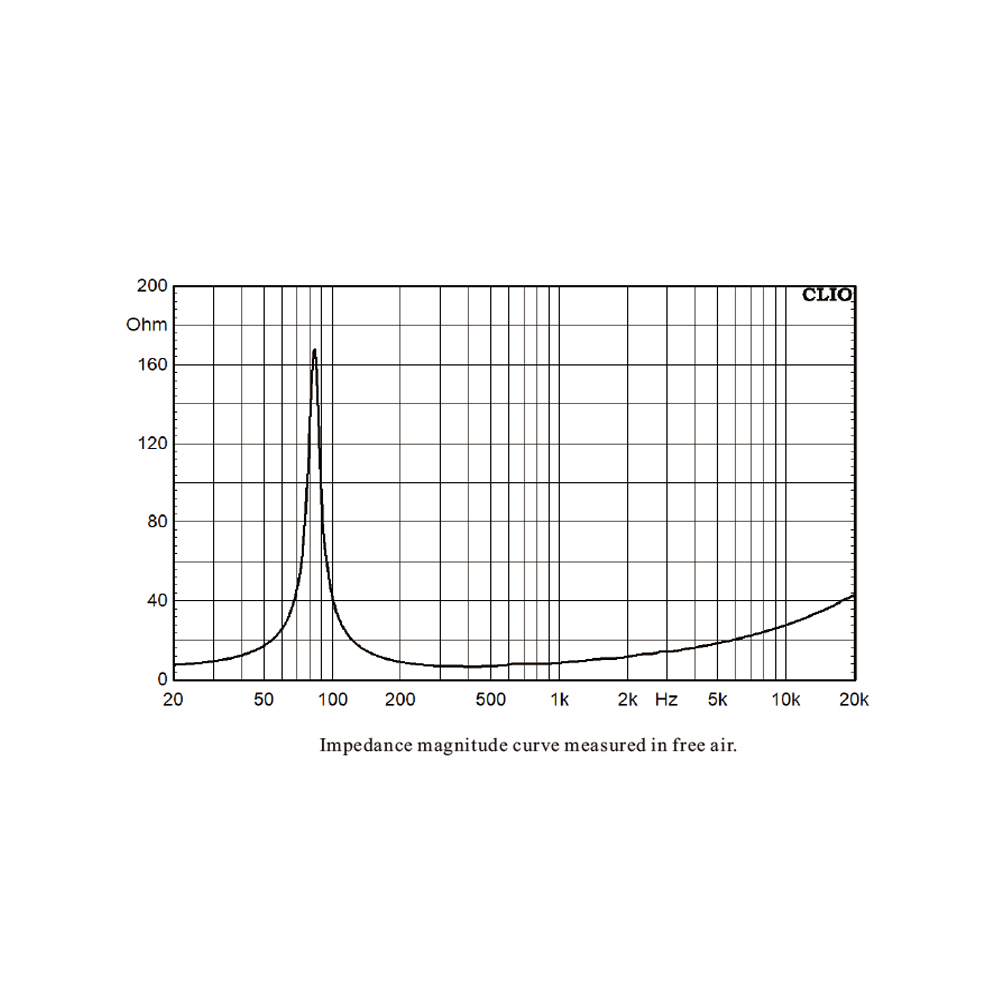

Minimum Impedance(Zmin)
6.62
ohm

Voice Coil Diameter
50/2
mm/inch

Voice Coil Material
Copper Clad Aluminum


Voice Coil Winding Depth
16
mm

Number of layers
2(inside/outside)


Magnet gap depth
9
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.3
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
83.2
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
10.65

Electrical factor
Qes
0.34

Total factor
Qts
0.33

Mechanical compliance
Cms
0.1745
mm/N
Mechanical resistance of suspension losses
Rms
1.02
mech-ohm
Effective Moving Mass
Mms
20.77
gr
Half-space efficiency
Eff
2.06
%
BL Factor
BL
12.9
T.m
Equivalent Cas air load
Vas
12.55
liters
Effective piston area
Sd
0.0227
m2
Max.linear excursion
Xmax
5.0
mm
Voice-coil inductance
Le1k
0.517
mH

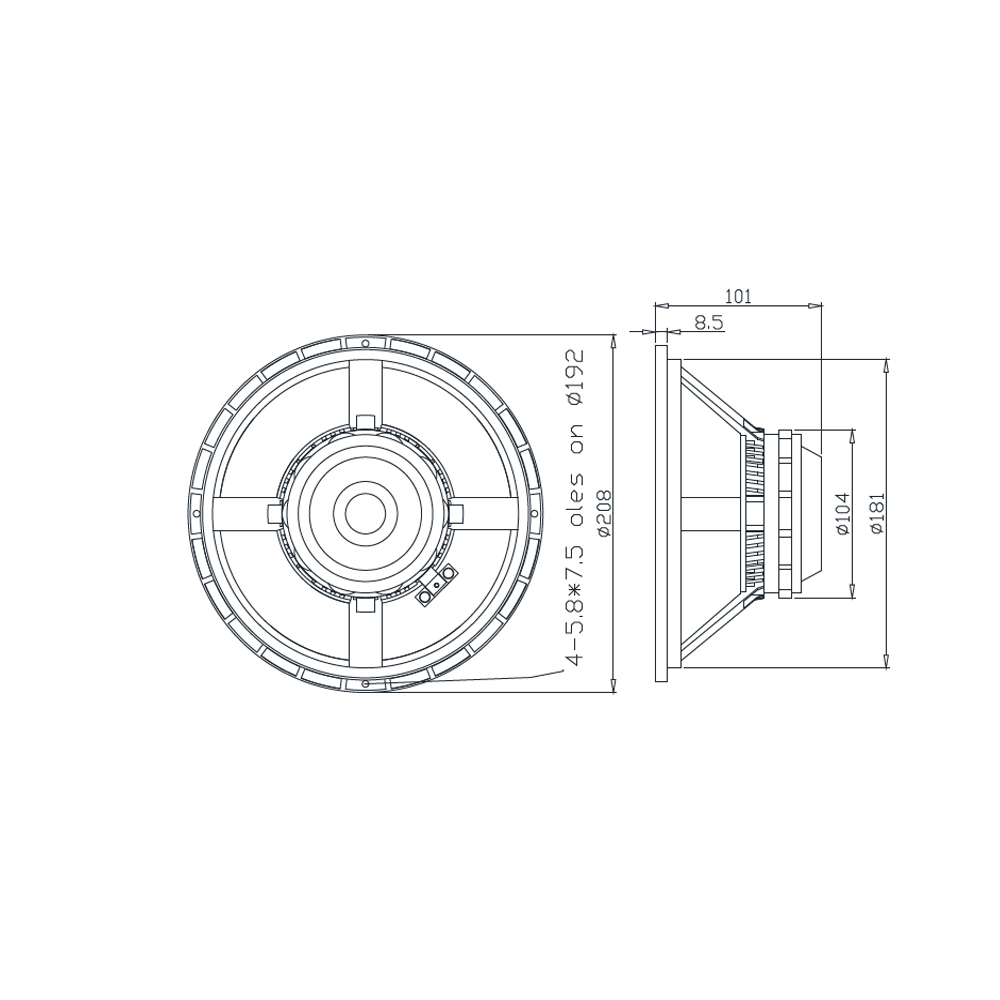

Mounting Information
Overall Diameter
208
mm

Bolt Circle Diameter
192
mm

Bolt Hole Diameter
5.8*7.5
mm

Baffle Cutout Diameter
181
mm

Overall Depth
101
mm

Net Weight 36Kg
2
kg

Shipping Weight
10
kg

Shipping Box
464*232*230
mm
