M06/B171 Professional Audio 6.5 Inch Mid-bass Woofer Speaker For PA Speaker Line Array Sound Systems

Products > 6.5inch Speaker > M06/B171 Professional Audio 6.5 Inch Mid-bass Woofer Speaker For PA Speaker Line Array Sound Systems
    • 1
    • 2
    • 3

M06/B171 Professional Audio 6.5 Inch Mid-bass Woofer Speaker For PA Speaker Line Array Sound Systems

shared：

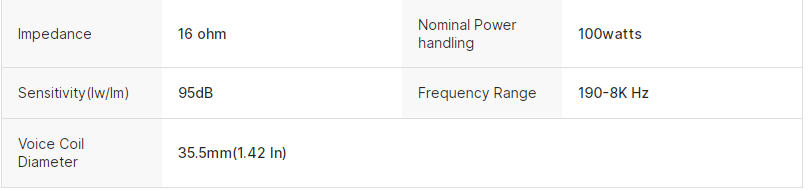

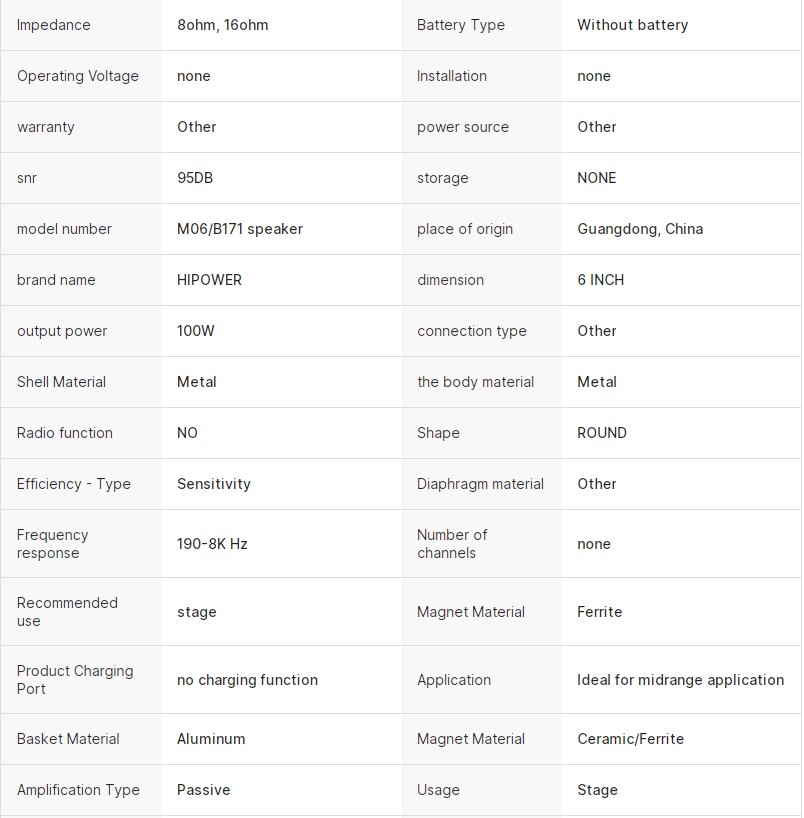

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options


Customized logo(Min. order: 100 pieces)

Customized packaging(Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
170/6.5
mm/inch

Rated Impedance
16
ohm

Nominal Power handling1
100
Watts

Program Power2
200
Watts

Sensitivity(lw/lm)3
95
dB

Frequency Range4
190-8K
Hz

Minimum Impedance(Zmin)
12
ohm

Voice Coil Diameter
50/2
mm/inch

Voice Coil Material
Edgewound Copper Clad Aluminum


Voice Coil Winding Depth
9
mm

Number of layers
1(inside/outside)


Magnet gap depth
8
mm

Surround Shape
Flat


Basket
Cast Aluminum


Flux Density
0.8
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
190
Hz
DC resistance
Re
11
ohm
Mechanical factor
Qms
2.94

Electrical factor
Qes
0.96

Total factor
Qts
0.72

Mechanical compliance
Cms
0.09
mm/N
Mechanical resistance of suspension losses
Rms
3.05
mech-ohm
Effective Moving Mass
Mms
7.5
gr
Half-space efficiency
Eff
2.1
%
BL Factor
BL
10
T.m
Equivalent Cas air load
Vas
3.0
liters
Effective piston area
Sd
0.0154
m2
Max.linear excursion
Xmax
2.5
mm
Voice-coil inductance
Le1k
0.25
mH

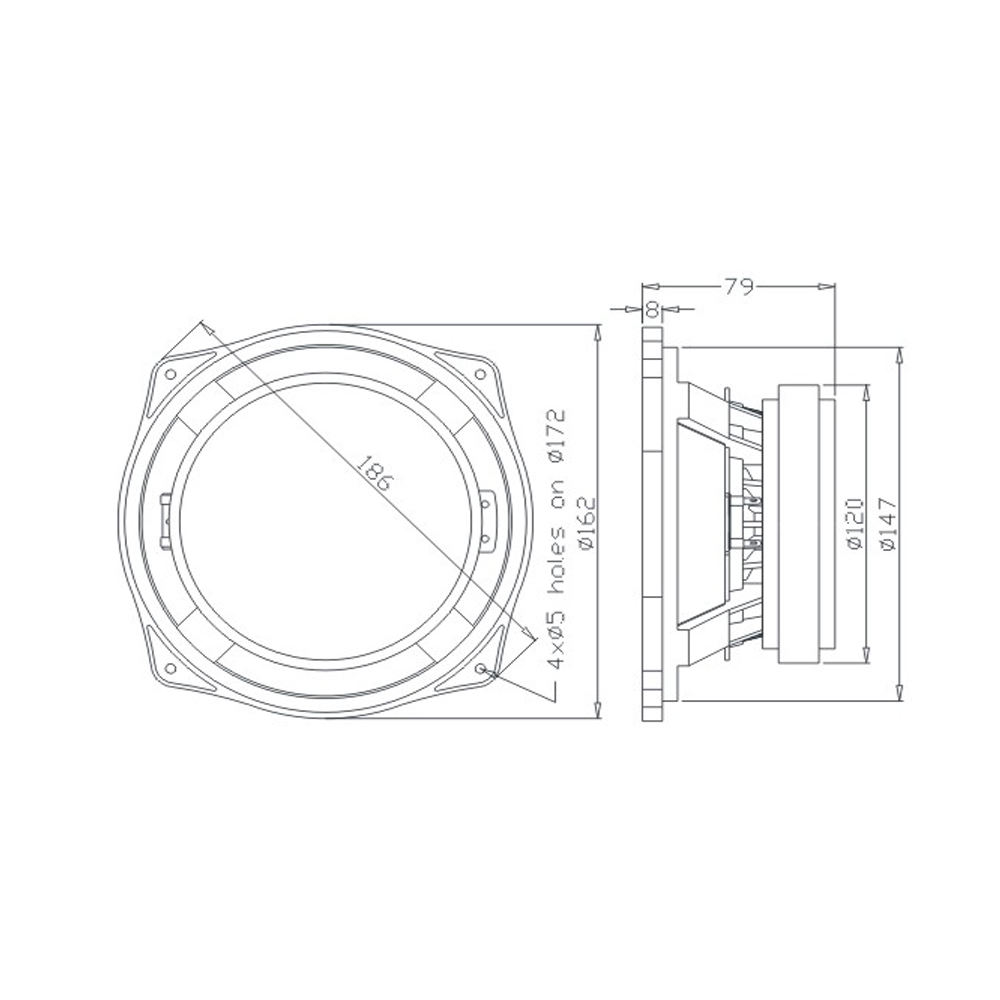

Mounting Information
Overall Diameter
162*186
mm

Bolt Circle Diameter
172
mm

Bolt Hole Diameter
5.0
mm

Baffle Cutout Diameter
147
mm

Overall Depth
79
mm

Net Weight 36Kg
2.45
kg

Shipping Weight
2.8
kg

Shipping Box
200*200*100
mm






Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
