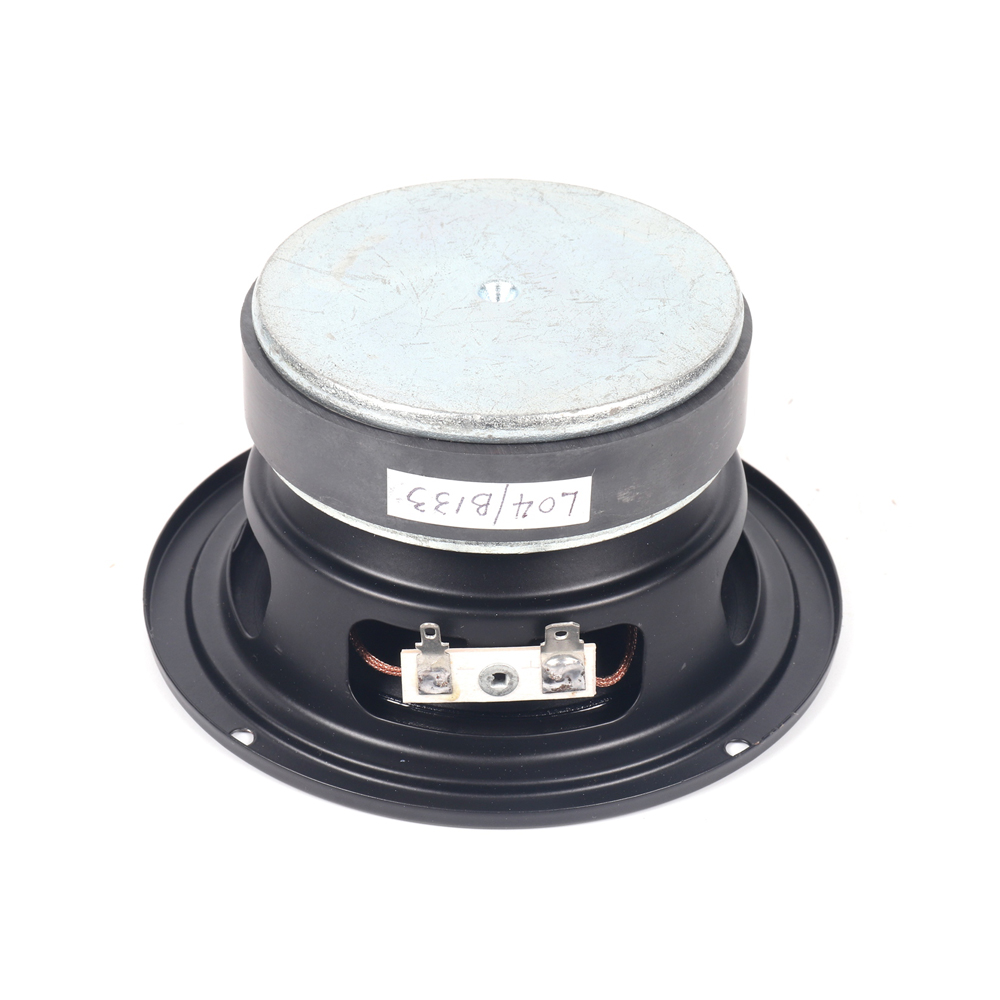

L04/B133 Full Range Speaker 4 Inch Full Range Speaker For Faital Column Speaker Box

shared：

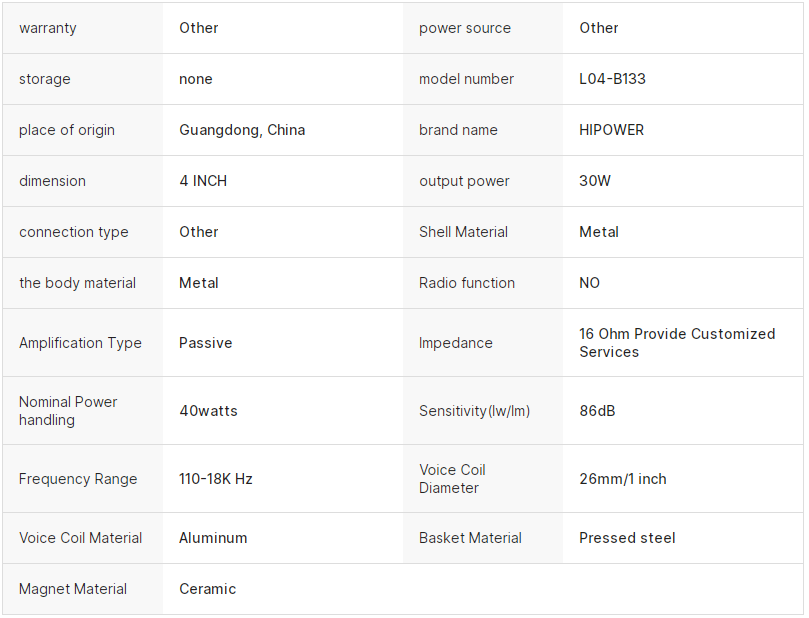

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 1000> 1000
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 1000 pieces)

Customized packaging (Min. order: 1000 pieces)

Graphic customization (Min. order: 1000 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
102/4
mm/inch

Rated Impedance
16
ohm

Nominal Power handling1
40
Watts

Program Power2
80
Watts

Sensitivity(lw/lm)3
86
dB

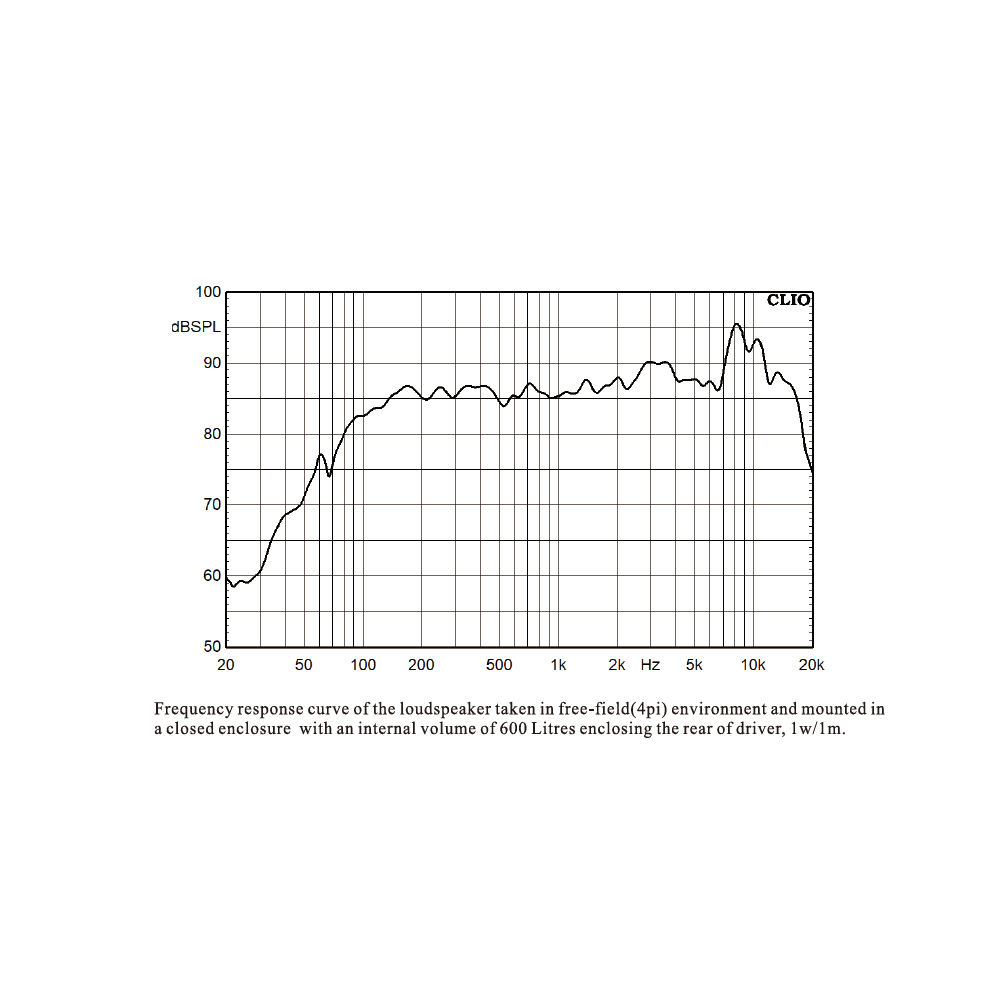

Frequency Range4
110-18000
Hz

Minimum Impedance(Zmin)
14.17
ohm

Voice Coil Diameter
26/1
mm/inch

Voice Coil Material
Aluminum


Voice Coil Winding Depth
7
mm

Number of layers
2(inside/outside)


Magnet gap depth
4
mm

Surround Shape
R-roll


Basket
Pressed Steel


Flux Density
1.3
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
117.5
Hz
DC resistance
Re
14
ohm
Mechanical factor
Qms
3.56

Electrical factor
Qes
1.55

Total factor
Qts
1.08

Mechanical compliance
Cms
0.43
mm/N
Mechanical resistance of suspension losses
Rms
0.87
mech-ohm
Effective Moving Mass
Mms
4.26
gr
Half-space efficiency
Eff
0.18
%
BL Factor
BL
5.3
T.m
Equivalent Cas air load
Vas
1.78
liters
Effective piston area
Sd
0.0054
m2
Max.linear excursion
Xmax
2.5
mm
Voice-coil inductance
Le1k
0.26
mH

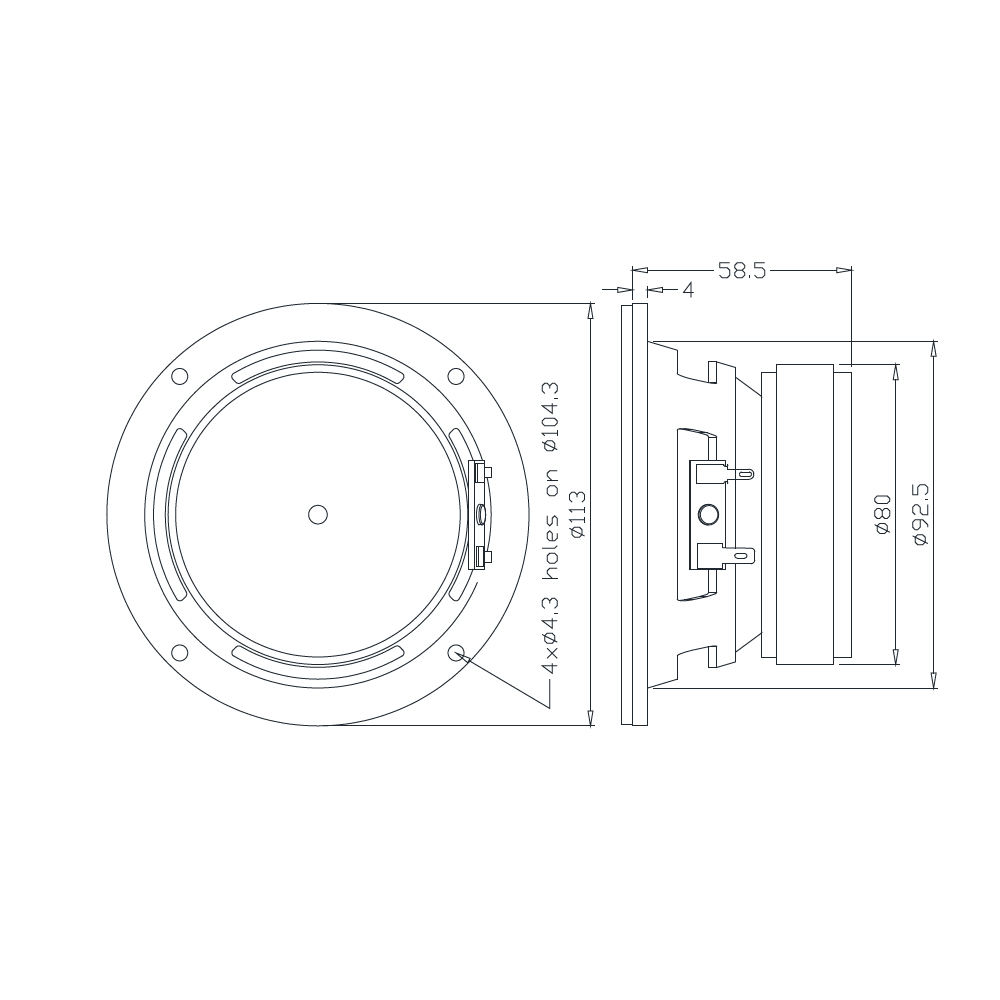

Mounting Information
Overall Diameter
113
mm

Bolt Circle Diameter
104.3
mm

Bolt Hole Diameter
4.3
mm

Baffle Cutout Diameter
92.5
mm

Overall Depth
58.5
mm

Net Weight
0.7
kg

Shipping Weight
17.8
kg

Shipping Box
420*250*215
mm




Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
