L03/8341 Professional 3 Inch Speaker, Pa Speaker Driver Unit, Full Range Speaker

shared：

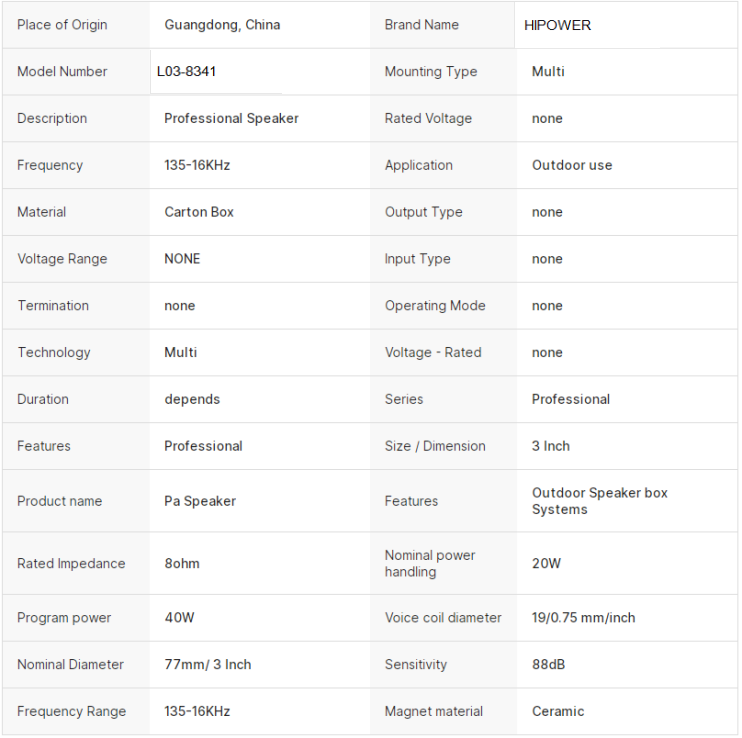

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 1000 pieces)

Customized packaging (Min. order: 1000 pieces)

Graphic customization (Min. order: 1000 pieces)


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
77/3
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
20
Watts

Program Power2
40
Watts

Sensitivity(lw/lm)3
88
dB

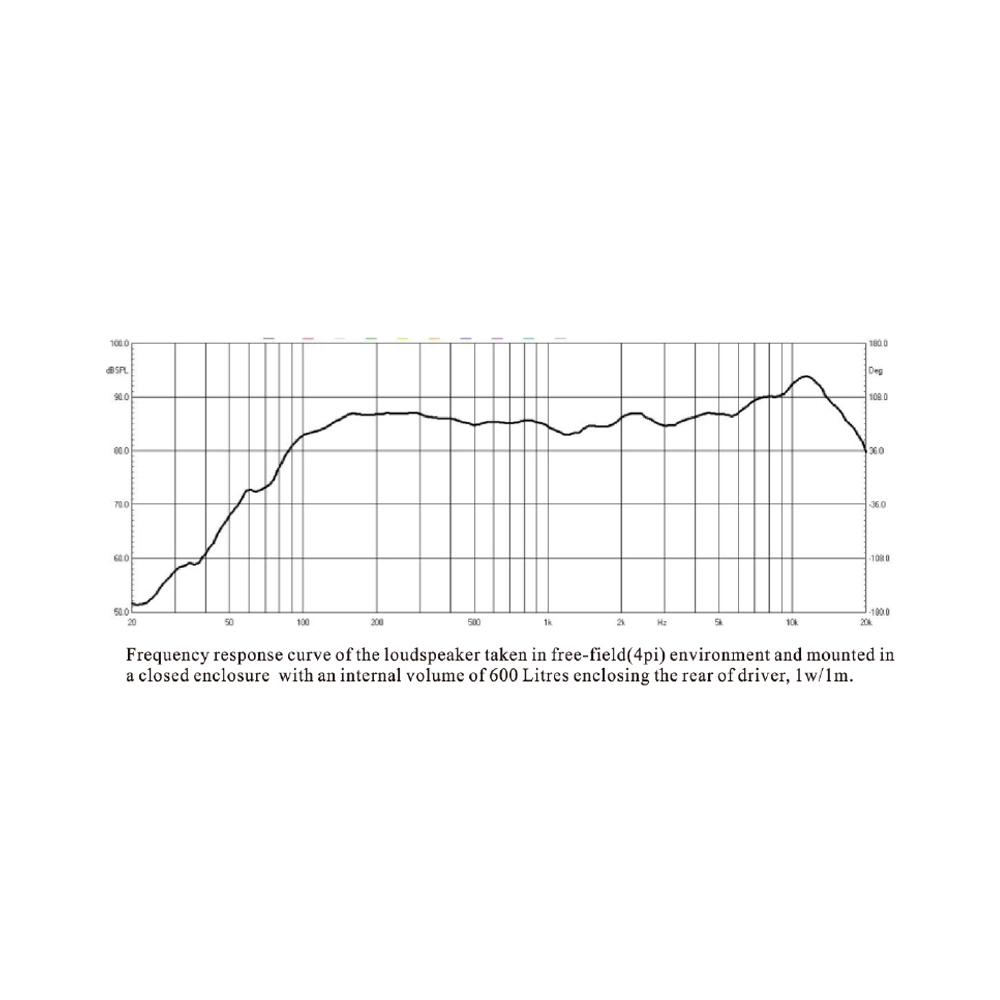

Frequency Range4
135-16K
Hz

Minimum Impedance(Zmin)
6.67
ohm

Voice Coil Diameter
19/0.75
mm/inch

Voice Coil Material
CCAW


Voice Coil Winding Depth
6
mm

Number of layers
2(inside/outside)


Magnet gap depth
4
mm

Surround Shape
Curve


Basket
Pressed Steel


Flux Density
1.5
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
135
Hz
DC resistance
Re
6.2
ohm
Mechanical factor
Qms
5.35

Electrical factor
Qes
0.85

Total factor
Qts
0.78

Mechanical compliance
Cms
0.45
mm/N
Mechanical resistance of suspension losses
Rms
0.81
mech-ohm
Effective Moving Mass
Mms
2.3
gr
Half-space efficiency
Eff
0.25
%
BL Factor
BL
3.5
T.m
Equivalent Cas air load
Vas
1.3
liters
Effective piston area
Sd
0.0034
m2
Max.linear excursion
Xmax
2.5
mm
Voice-coil inductance
Le1k
0.05
mH

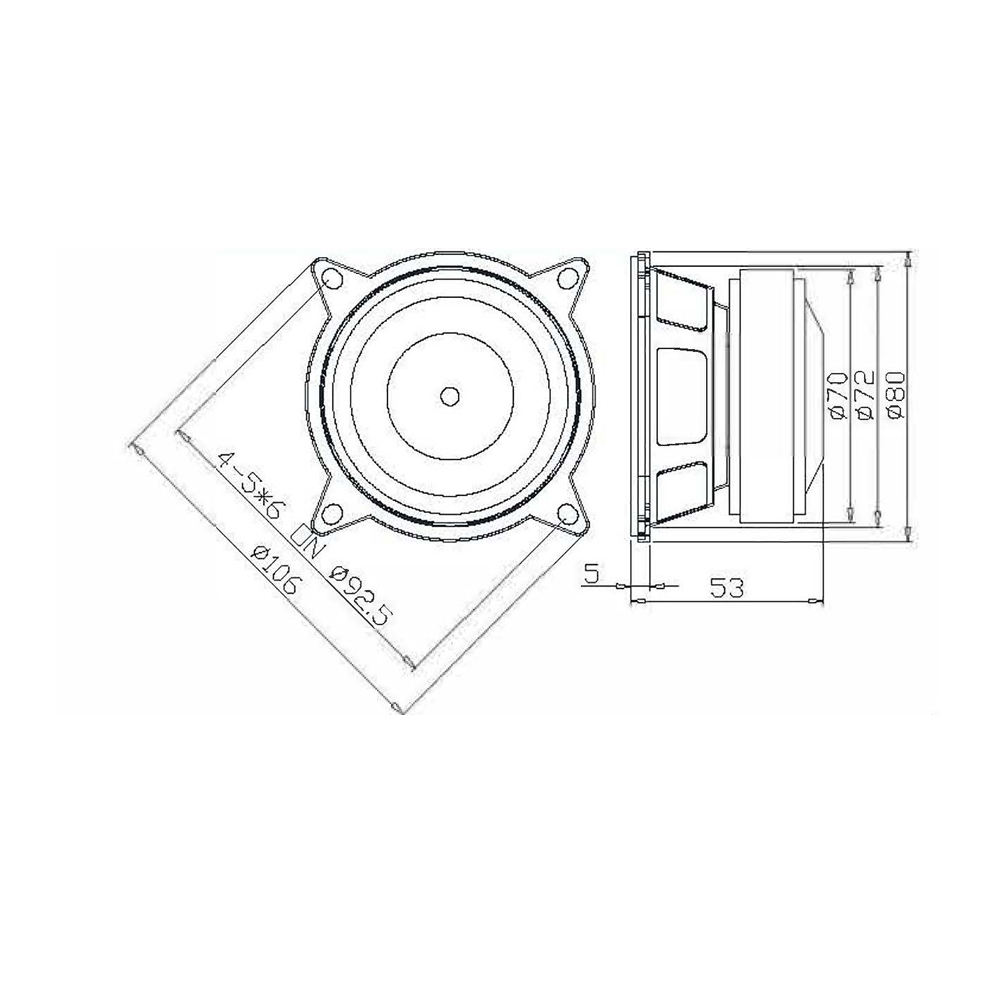

Mounting Information
Overall Diameter
80
mm

Bolt Circle Diameter
92.5
mm

Bolt Hole Diameter
5*6
mm

Baffle Cutout Diameter
72
mm

Overall Depth
53
mm

Net Weight 36Kg
0.5
kg

Shipping Weight
14.5
kg

Shipping Box
295*270*190
mm
