L08/82179 Pa Speaker 8 Inch Coaxial Speaker For Monitor Speaker Audio System b&c Speaker Driver, 250W, 8Ohm

Products > Coaxial Speaker > L08/82179 Pa Speaker 8 Inch Coaxial Speaker For Monitor Speaker Audio System b&c Speaker Driver, 250W, 8Ohm
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

L08/82179 Pa Speaker 8 Inch Coaxial Speaker For Monitor Speaker Audio System b&c Speaker Driver, 250W, 8Ohm

shared：

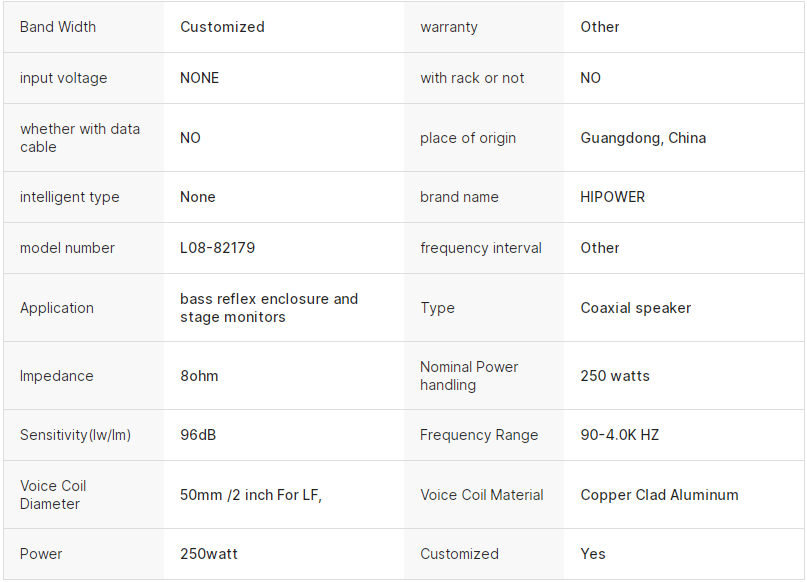

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

Specification For Low Frequency
Nominal Diameter
203/8
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
250
Watts

Program Power2
500
Watts

Sensitivity(lw/lm)3
96
dB

Frequency Range4
90-4000
Hz

Minimum Impedance(Zmin)
6.3
ohm

Voice Coil Diameter
50/2
mm/inch

Voice Coil Material
Copper Clad Aluminum


Voice Coil Winding Depth
16
mm

Number of layers
2(inside/outside)


Magnet gap depth
8
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
91.2
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
8.19

Electrical factor
Qes
0.5

Total factor
Qts
0.49

Mechanical compliance
Cms
0.173
mm/N
Mechanical resistance of suspension losses
Rms
1.27
mech-ohm
Effective Moving Mass
Mms
17.2
gr
Half-space efficiency
Eff
1.78
%
BL Factor
BL
9.58
T.m
Equivalent Cas air load
Vas
12.5
liters
Effective piston area
Sd
0.0227
m2
Max.linear excursion
Xmax
6
mm
Voice-coil inductance
Le1k
0.6
mH

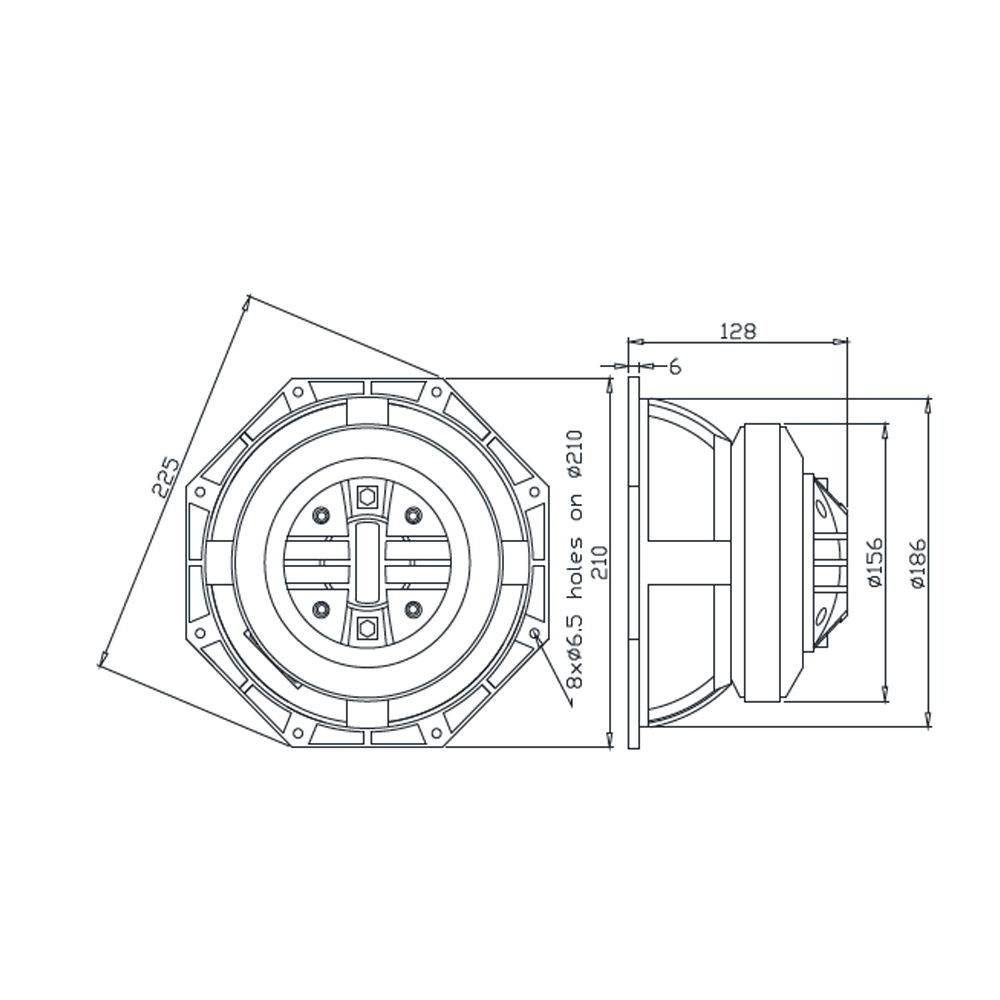

Mounting Information
Overall Diameter
225
mm

Bolt Circle Diameter
210
mm

Bolt Hole Diameter
6.5
mm

Baffle Cutout Diameter
186
mm

Overall Depth
128
mm

Net Weight 36Kg
4.8
kg

Shipping Weight
5.8
kg

Shipping Box
225*225*135
mm

Specification For High Frequency
Rated Impedance
8
OHM

Nominal Power handling1
50
Watts

Program Power2
100
Watts

Sensitivity(lw/lm)3
103
dB

Frequency Range4
800-18000
Hz

Voice Coil Diameter
44/1.75
mm/inch

Voice Coil Material
Copper Clad Aluminum


Former Material
Kapton


Diaphragm Material
Polyester


Basket
Cast Aluminum


Flux Density
1.4
T

Magnet Material
Neodymium


Crossover Frequency8
2200
Hz


Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
