L12/44576 Professional 12 Inch Coaxial PA Speaker with Neodymium Speaker for Monitor Box High Quality Sound

shared：

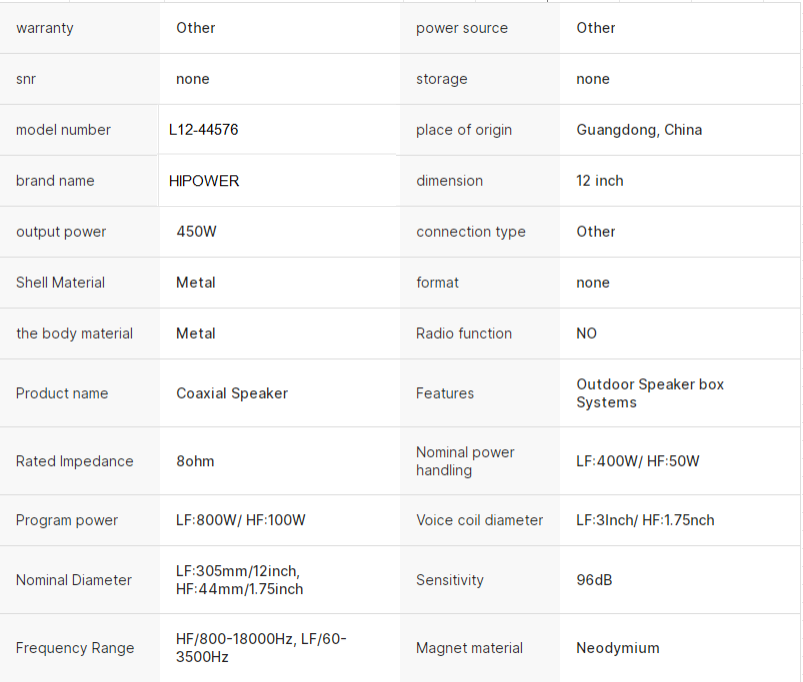

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description





Specification For Low Frequency
Nominal Diameter
305/12
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
400
Watts

Program Power2
800
Watts

Sensitivity(lw/lm)3
96
dB

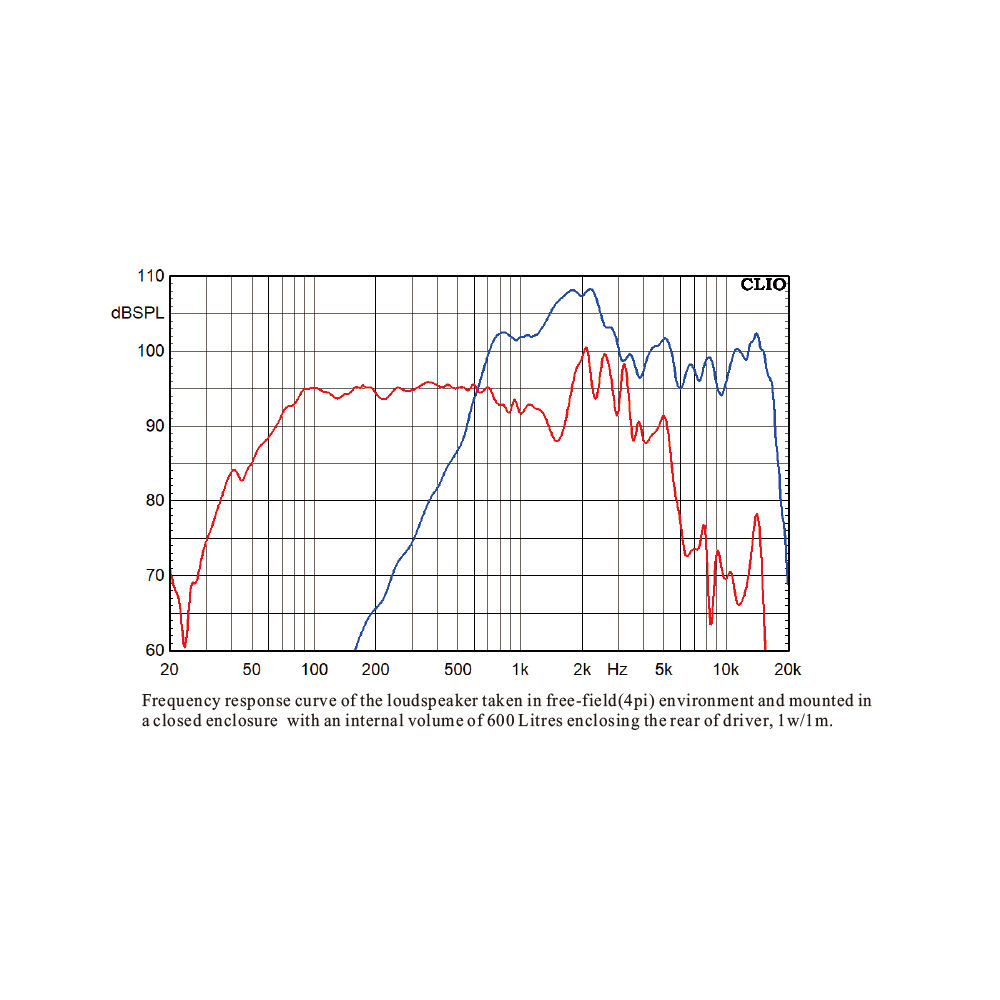

Frequency Range4
60-3500
Hz

Minimum Impedance(Zmin)
2.95
ohm

Voice Coil Diameter
76/3
mm/inch

Voice Coil Material
Copper Clad Aluminum


Voice Coil Winding Depth
16
mm

Number of layers
2(inside/outside)


Magnet gap depth
12
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.0
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
60.1
Hz
DC resistance
Re
2.2
ohm
Mechanical factor
Qms
11.77

Electrical factor
Qes
0.44

Total factor
Qts
0.42

Mechanical compliance
Cms
0.146
mm/N
Mechanical resistance of suspension losses
Rms
1.538
mech-ohm
Effective Moving Mass
Mms
48.06
gr
Half-space efficiency
Eff
2.94
%
BL Factor
BL
9.526
T.m
Equivalent Cas air load
Vas
62.18
liters
Effective piston area
Sd
0.0543
m2
Max.linear excursion
Xmax
5
mm
Voice-coil inductance
Le1k
0.544
mH

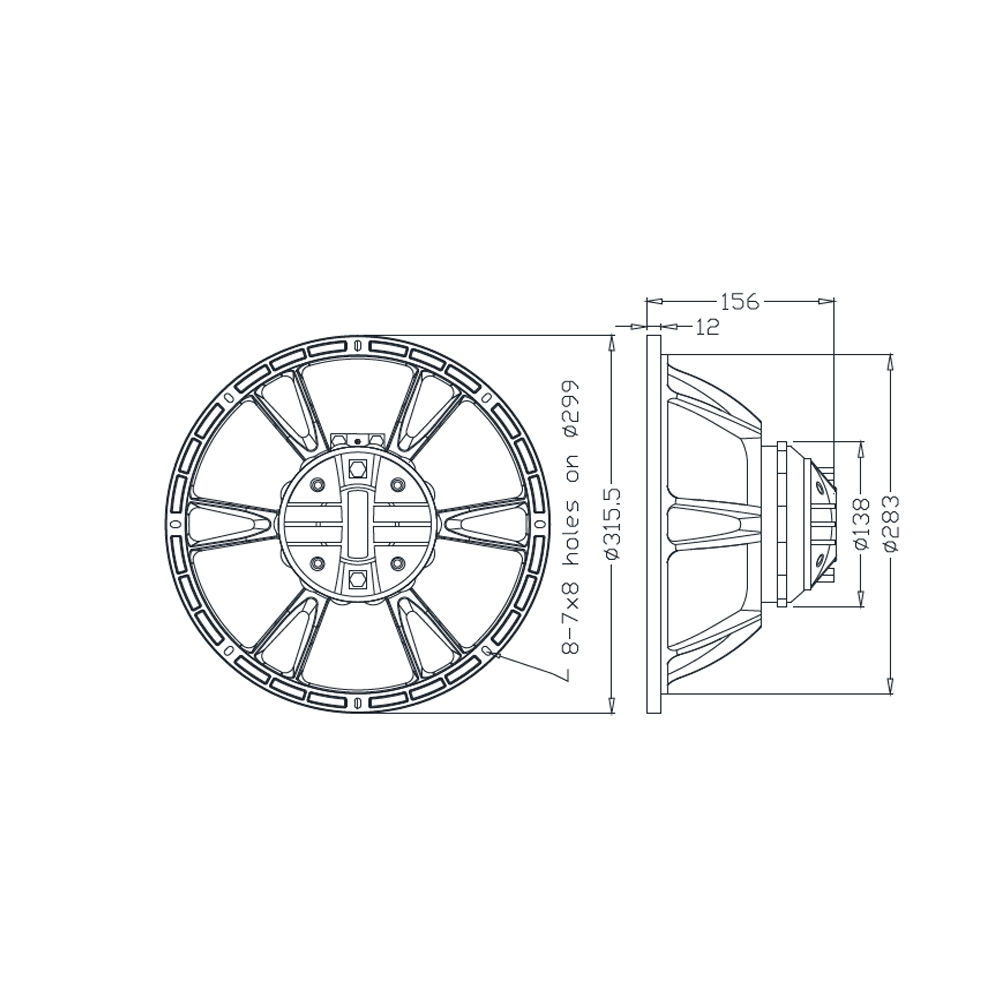

Mounting Information
Overall Diameter
315.5
mm

Bolt Circle Diameter
299
mm

Bolt Hole Diameter
7*8
mm

Baffle Cutout Diameter
283
mm

Overall Depth
156
mm

Net Weight 36Kg

kg

Shipping Weight

kg

Shipping Box

mm

Specification For High Frequency
Rated Impedance
8
OHM

Nominal Power handling1
50
Watts

Program Power2
100
Watts

Sensitivity(lw/lm)3
103
dB

Frequency Range4
800-18k
Hz

Voice Coil Diameter
44/1.75
mm/inch

Voice Coil Material
Copper Clad Aluminum


Former Material
Kapton


Diaphragm Material
Polyester


Basket
Cast Aluminum


Flux Density
1.4
T

Magnet Material
Neodymium


Crossover Frequency8
