H44/8069 1.4 Inch Compact Horn Tweeters, HF Compression Speaker Driver, Heavy-Duty Audio Tweeters For PA Speaker Systems

Products > HF Compression Driver > H44/8069 1.4 Inch Compact Horn Tweeters, HF Compression Speaker Driver, Heavy-Duty Audio Tweeters For PA Speaker Systems

H44/8069 1.4 Inch Compact Horn Tweeters, HF Compression Speaker Driver, Heavy-Duty Audio Tweeters For PA Speaker Systems

shared:

About this product

  • · 1" Exit throat .

  • · 120 W continuous program power handling.

  • · 108dB Sensitivity 1w/1m .

  • · 1000Hz~18000Hz Frequency range.

  • ·  Polyimide diaphragm .

  • ·  Neodymium magnet


Key attributes

  Place of Origin  Guangdong, China  Brand Name  HIPOWER
  Model Number  H44-8069  Mounting Type  Multi



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options


Customized logo(Min. order: 100 pieces)

Customized packaging(Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description



Specification For High Frequency
Rated Impedance
8
OHM

Nominal Power handling1
60
Watts

Program Power2
120
Watts

Sensitivity(lw/lm)3
108
dB

Frequency Range4
900-18000
Hz

Voice Coil Diameter
44/1.7
mm/inch

Voice Coil Material
Copper Clad Aluminum


Former Material
Kapton


Diaphragm Material
Polyimide


Phase Plug Material
Plastic


Flux Density
1.8
T

Magnet Material
Neodymium


Voice-Coil Inductance
0.1
mH

Crossover Frequency8
1500
Hz

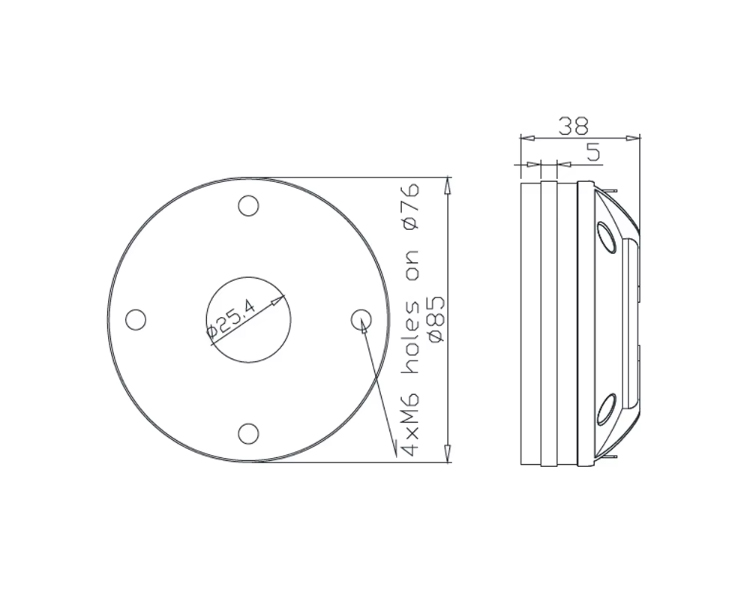

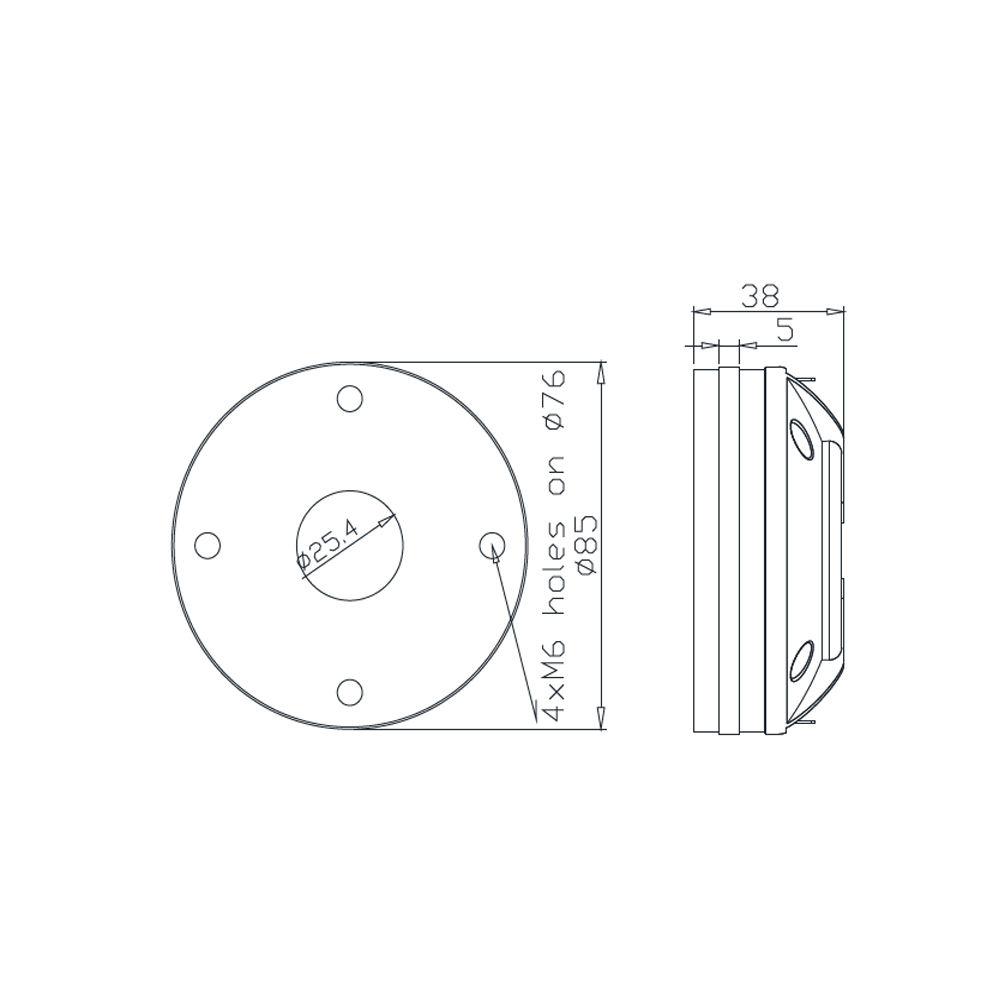

Mounting Information



4XM6 holes, 90 degree on 76mm diameter

Overall Diameter
85
mm

Overall Depth
38
mm

Net weight
0.9
kg

Shipping Weight
8.2
kg

Shipping Box
225*225*213
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in?


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
