H74/8074 3 Inch Horn Speaker Driver, Titanium HF Compression Driver Tweeter Unit

shared：


1.74mm(3in)Diaphragm, 1.5-inch Exit throat
2.Pure titanium compression driver
3.180 Watt continuous program power handling
4.106 dB Sensitivity
5.0.9 kHz-18kHz Frequency range
6.Optimized geometry phase plug
7.Copper inductance ring for extended HF response
8.Aluminum rear cover.

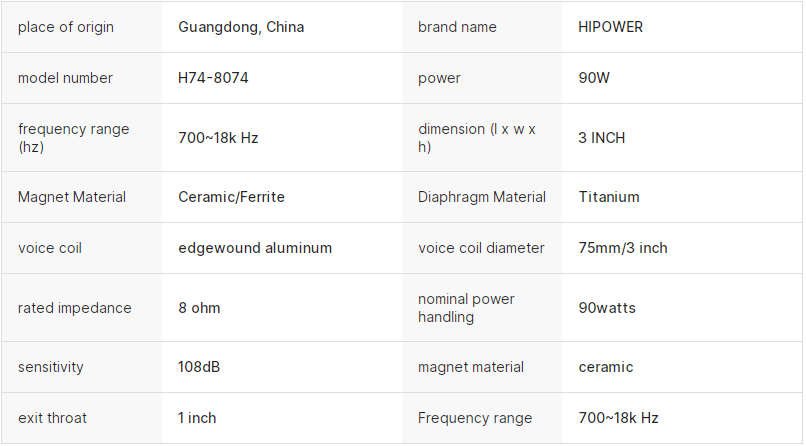

Key attributes

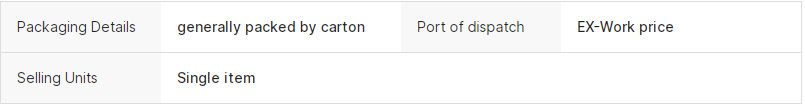

Packaging and delivery



Supply capacity


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options


Customized logo(Min. order: 100 pieces)

Customized packaging(Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)


Products Description


Specification For High Frequency
Throat Diameter
36/1.5
mm/inch

Rated Impedance
8
OHM

Nominal Power handling1
90
Watts

Program Power2
180
Watts

Sensitivity(lw/lm)3
108
dB

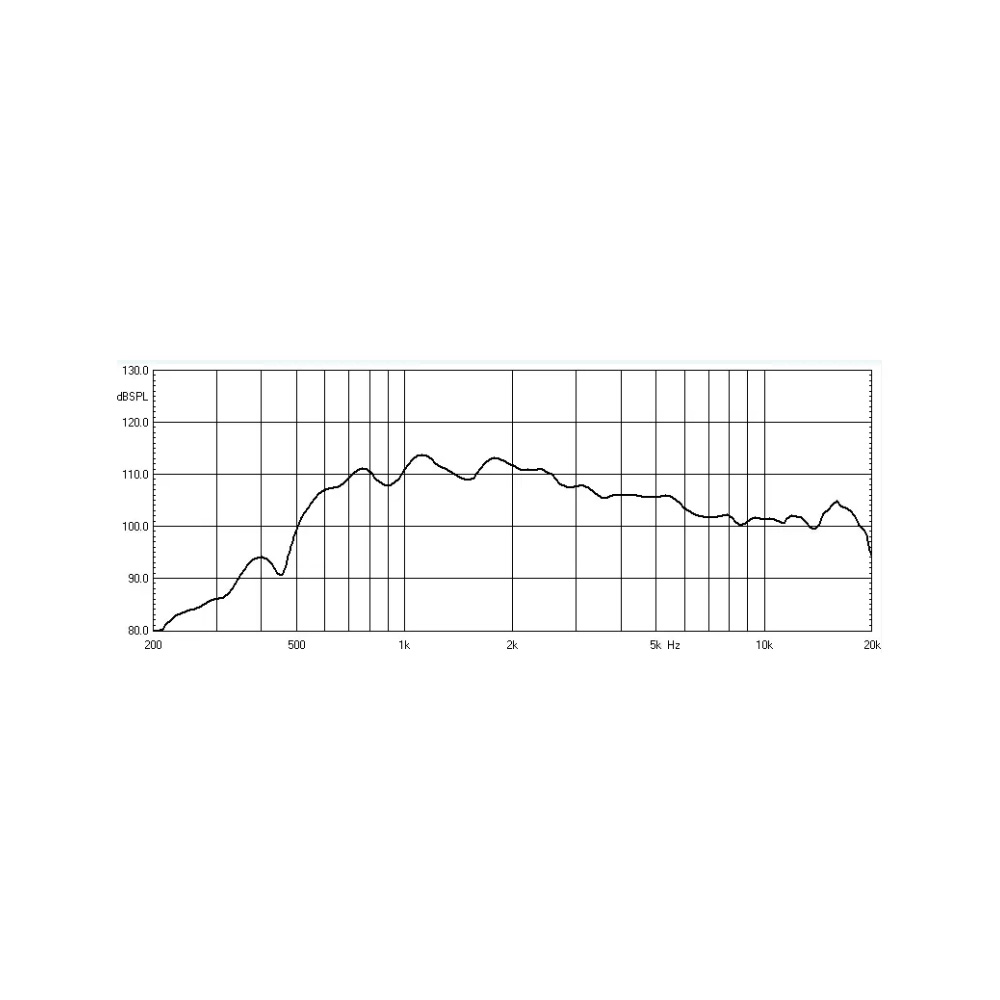

Frequency Range4
700-18000
Hz

Voice Coil Diameter
76/3
mm/inch

Voice Coil Material
Edgewound Aluminum


Former Material
Kapton


Diaphragm Material
Titanium


Phase Plug Material
Composite


Flux Density
1.5
T

Magnet Material
Ceramic


Voice-Coil Inductance
0.1
mH

Crossover Frequency6
1000
Hz

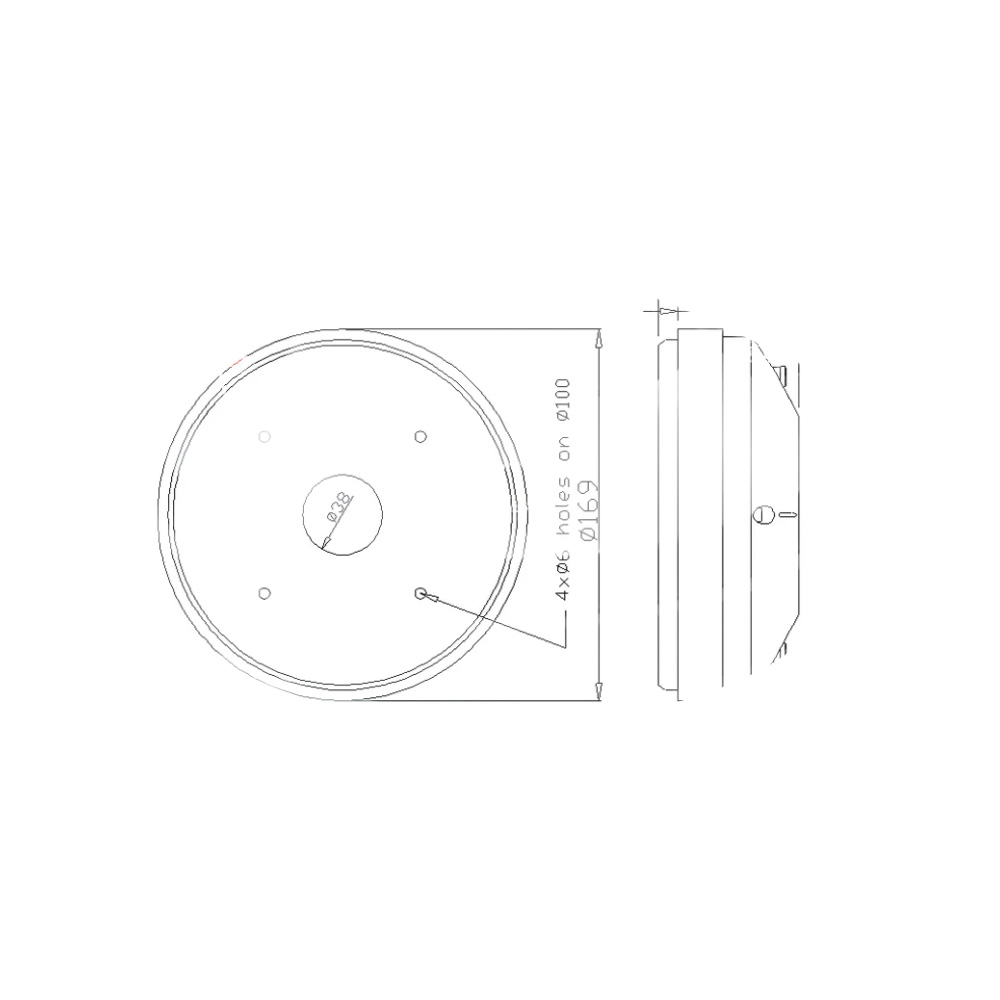

Mounting Information



4XM6 holes, 90 degree on 76mm diameter

Overall Diameter
169
mm

Overall Depth
63.5
mm

Net weight
5.3
kg

Shipping Weight
6.5
kg

Shipping Box

mm



Why Choose Us


Customized Services

Product Classification

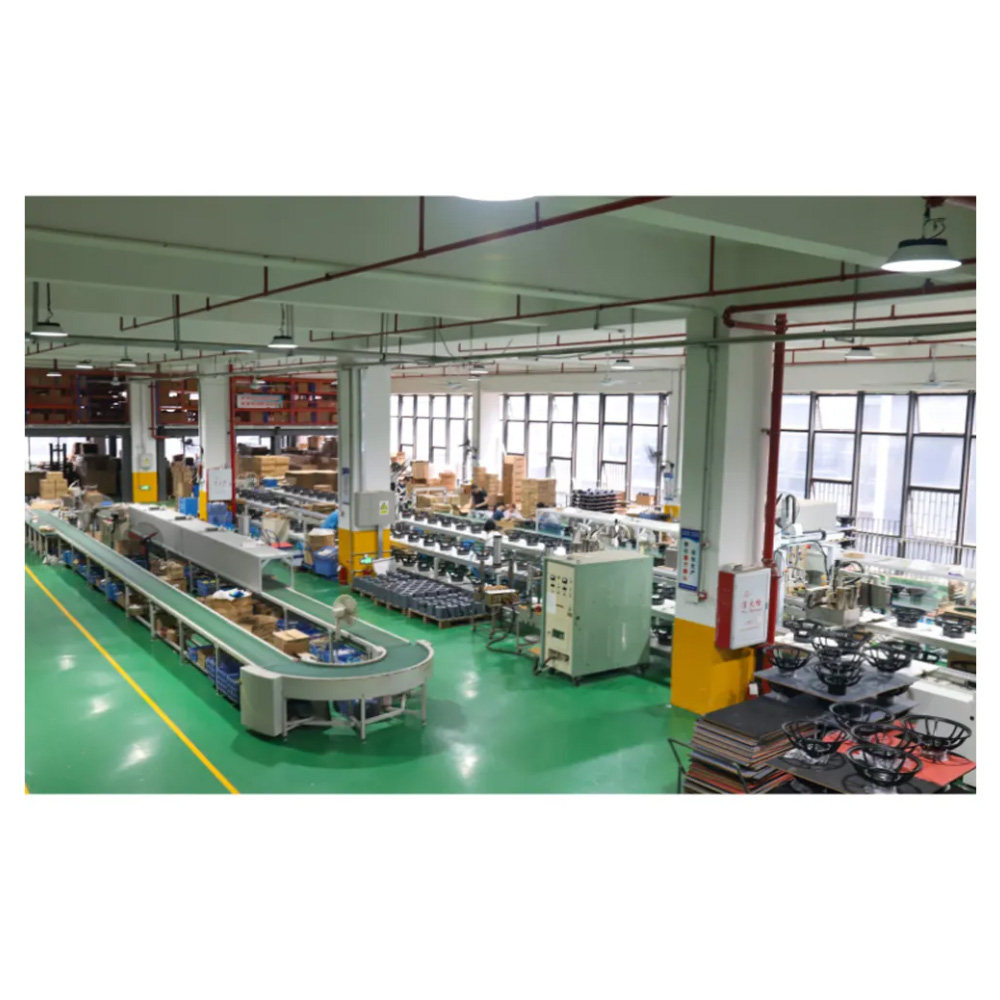

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
