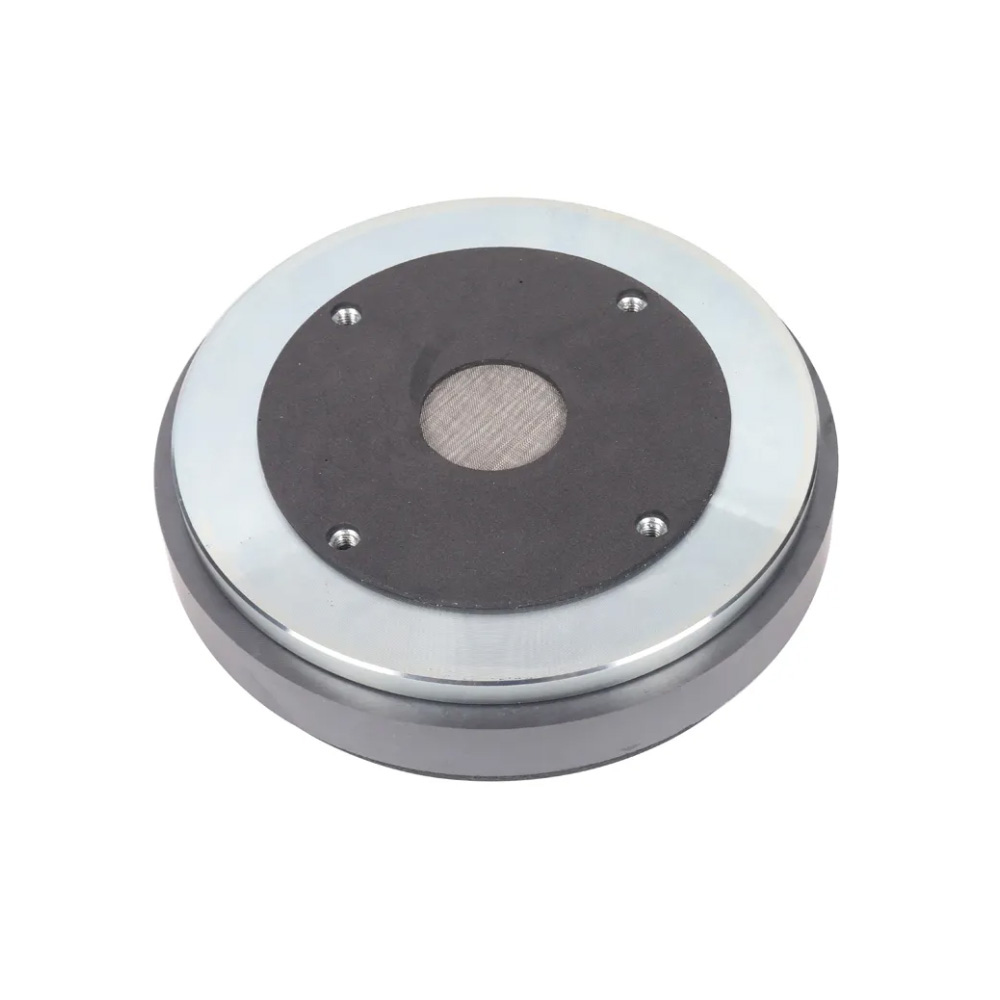

H74/8092 3 Inch HF Compression Speaker Driver, Titanium Pa Speakers Driver, Audio Horn Tweeter

Products > HF Compression Driver > H74/8092 3 Inch HF Compression Speaker Driver, Titanium Pa Speakers Driver, Audio Horn Tweeter

H74/8092 3 Inch HF Compression Speaker Driver, Titanium Pa Speakers Driver, Audio Horn Tweeter

shared:

Key attributes


Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options


Customized logo(Min. order: 100 pieces)

Customized packaging(Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

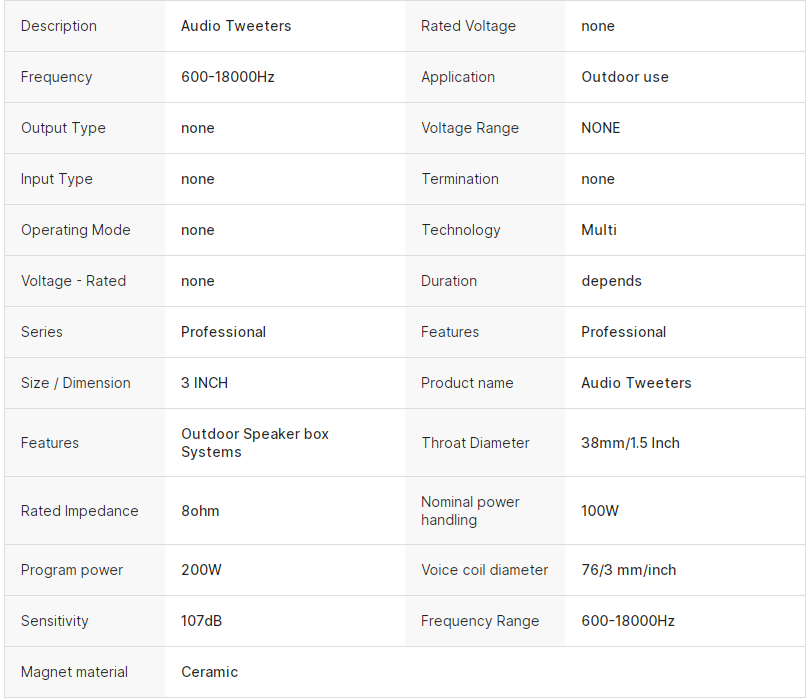

Specification For High Frequency
Throat Diameter
38/1.5
mm/inch

Rated Impedance
8
OHM

Nominal Power handling1
100
Watts

Program Power2
200
Watts

Sensitivity(lw/lm)3
107
dB

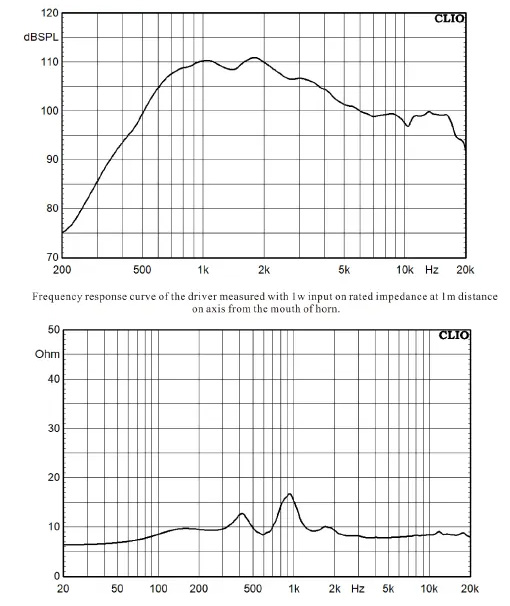

Frequency Range4
600-18000
Hz

Voice Coil Diameter
76/3
mm/inch

Voice Coil Material
Copper Clad Aluminum


Former Material
Kapton


Diaphragm Material
Titanium


Phase Plug Material
Aluminum


Flux Density
1.8
T

Magnet Material
Ceramic


Voice-Coil Inductance
0.1
mH

Crossover Frequency6
1200
Hz

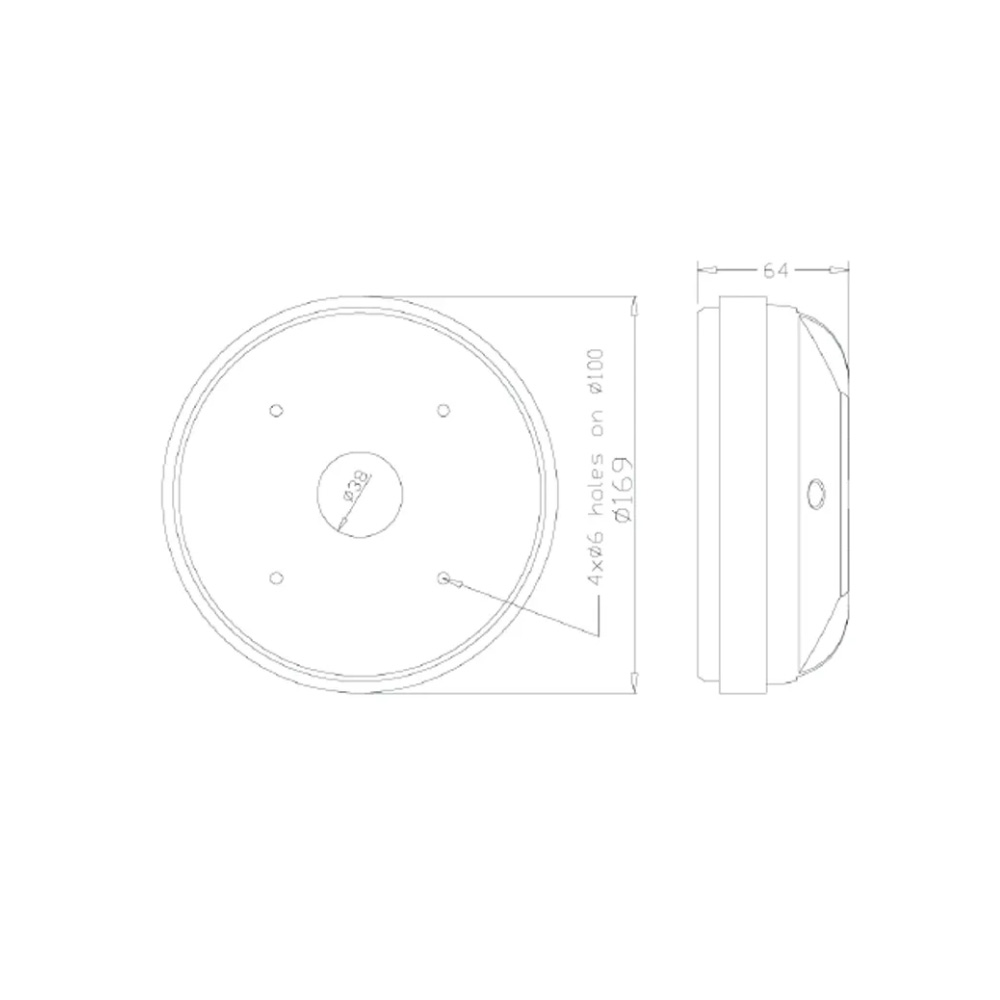

Mounting Information



4XM6 holes, 90 degree on 76mm diameter

Overall Diameter
169
mm

Overall Depth
64
mm

Net weight
4.8
kg

Shipping Weight
20.2
kg

Shipping Box
360*190*176
mm



Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in?


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
