H44/8166 44mm Horn Speakers Tweeter, Professional HF Compression Speaker Driver

Products > HF Compression Driver > H44/8166 44mm Horn Speakers Tweeter, Professional HF Compression Speaker Driver

H44/8166 44mm Horn Speakers Tweeter, Professional HF Compression Speaker Driver

shared:

Product main features:


-44mm (1.7inch) Diaphragm, 1-inch Exit throat
- Aluminum voice coil
-Pure titanium compression driver
-55 Watt continuous program power handling
-105dB Sensitivity
-900Hz~18KHz Frequency range
-Optimized geometry phase plug

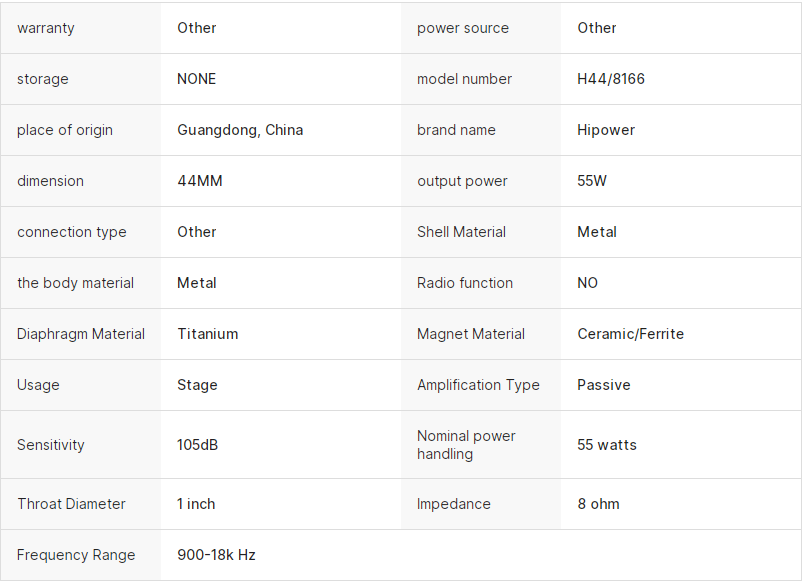

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options


Customized logo(Min. order: 500 pieces)

Customized packaging(Min. order: 500 pieces)
Graphic customization (Min. order: 500 pieces)


Product descriptions from the supplier

Products Description




Specification For High Frequency
Rated Impedance
8
OHM

Nominal Power handling1
55
Watts

Program Power2
110
Watts

Sensitivity(lw/lm)3
105
dB

Frequency Range4
900-18000
Hz

Voice Coil Diameter
44/1.7
mm/inch

Voice Coil Material
Copper Clad  Aluminum


Former Material
Kapton


Diaphragm Material
Polyimide


Phase Plug Material
Plastic


Flux Density
1.5
T

Magnet Material
Ceramic


Voice-Coil Inductance
0.1
mH

Crossover Frequency8
1500
Hz

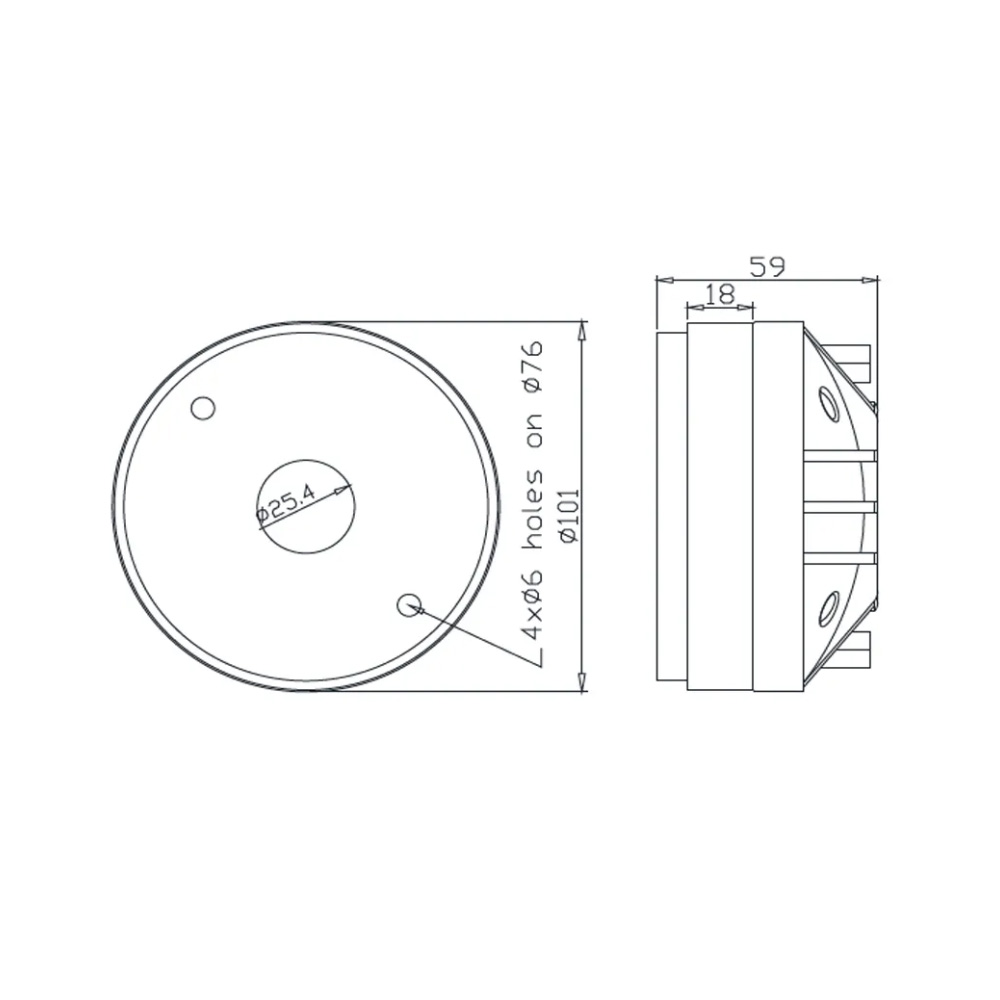

Mounting Information



4XM6 holes, 90 degree on 76mm diameter

Overall Diameter
101
mm

Overall Depth
59
mm

Net weight
2.2
kg

Shipping Weight

kg

Shipping Box

mm
