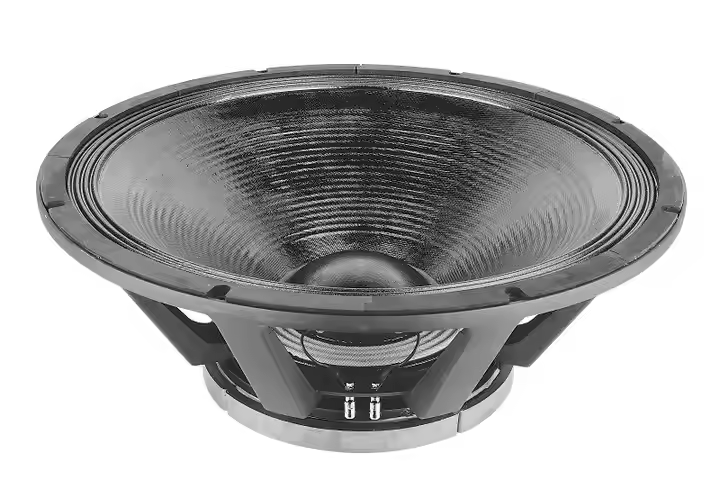

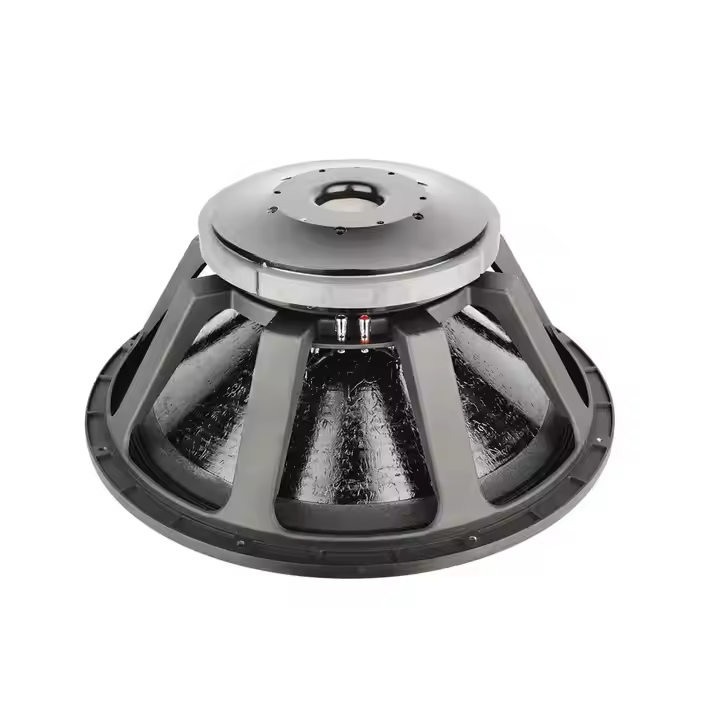

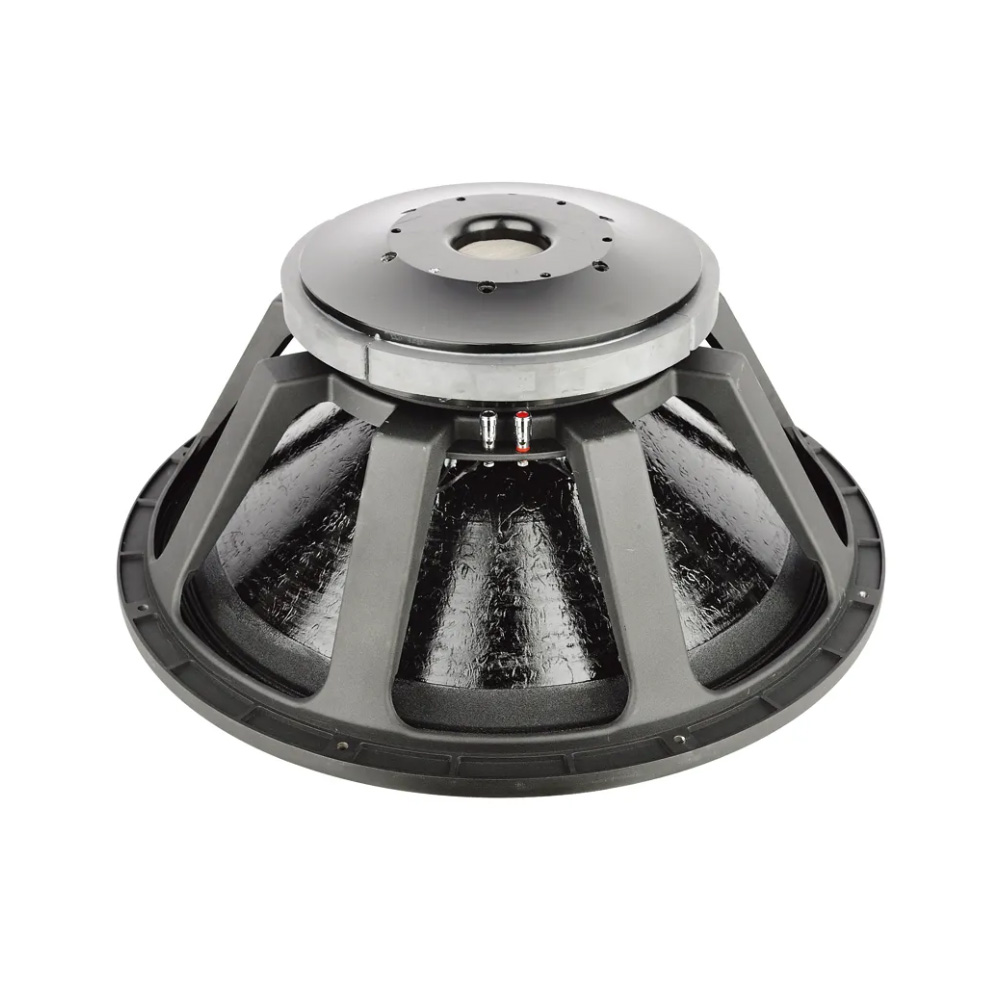

L24/8064 24-Inch PA Speakers With Subwoofer Box High Performance Outdoor Use

shared：

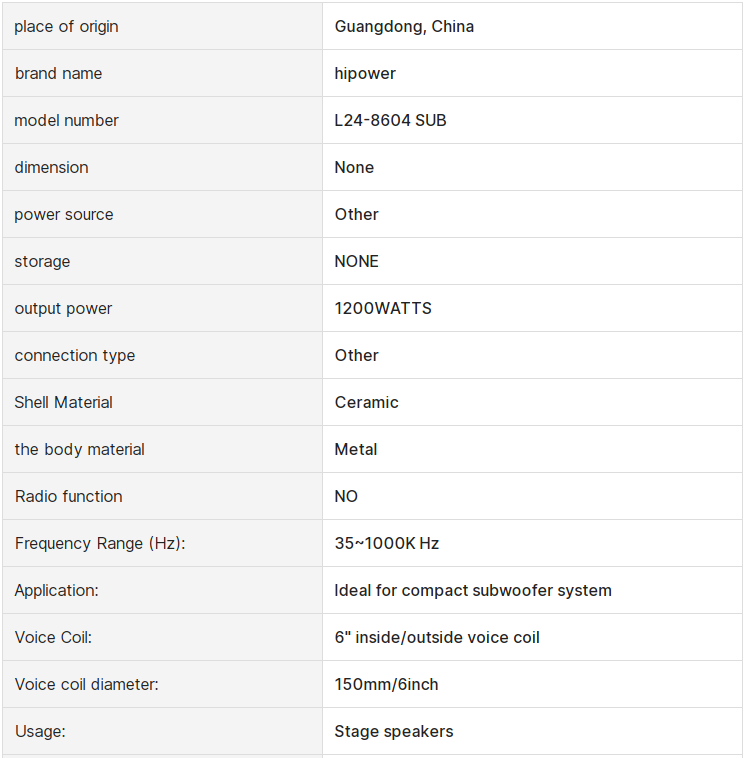

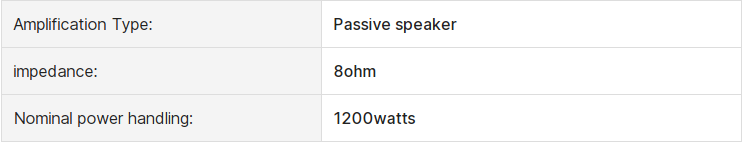

Key attributes

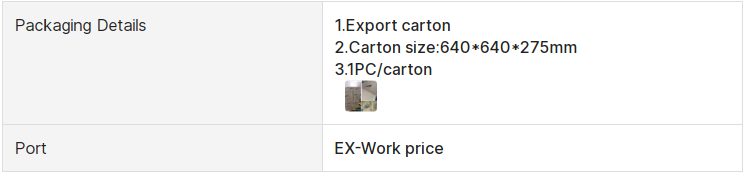

Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)40To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description





General Specifications

Nominal Diameter
610/24
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1200
Watts

Program Power2
2400
Watts

Sensitivity(lw/lm)3
98
dB

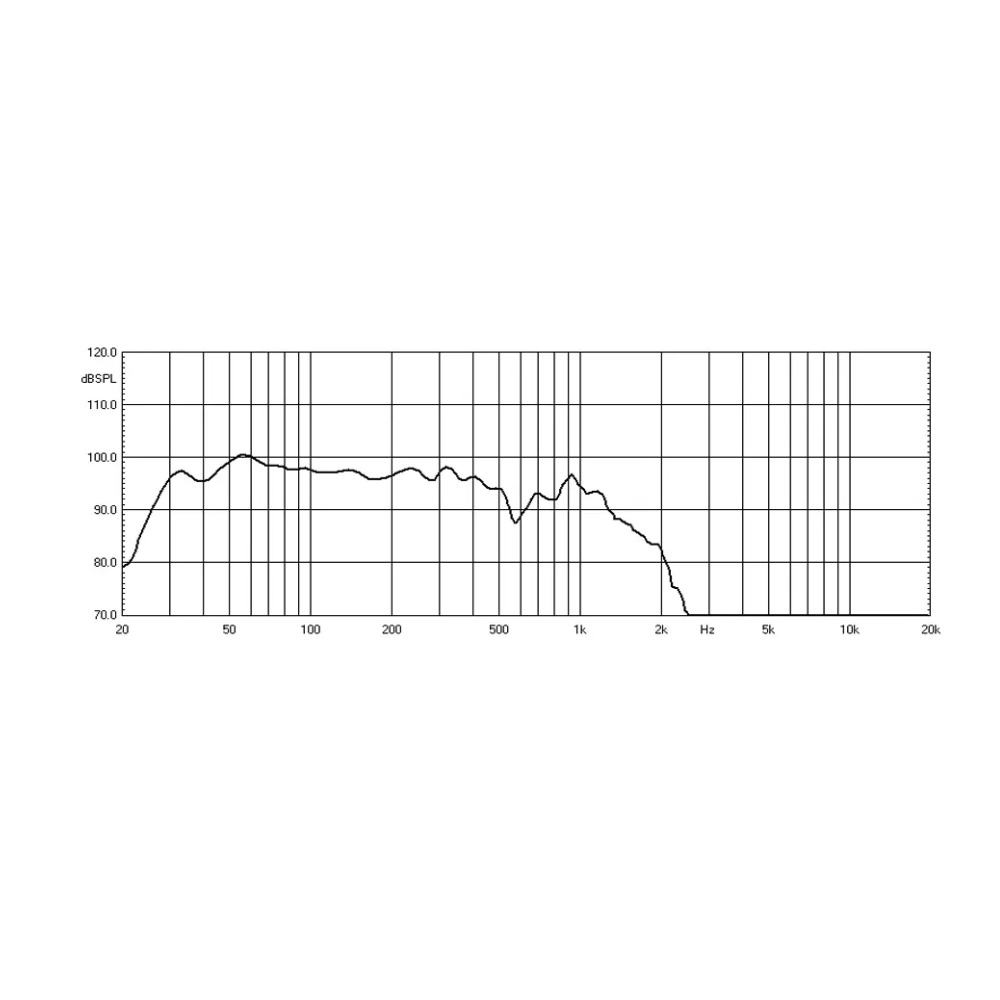

Frequency Range4
35-1000
Hz

Minimum Impedance(Zmin)
9.8
ohm

Voice Coil Diameter
150/6
mm/inch

Voice Coil Material
Copper
Voice Coil Winding Depth
30
mm

Number of layers
4(inside/outside)


Magnet gap depth
12
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
35
Hz
DC resistance
Re
6.5
ohm
Mechanical factor
Qms
10.3

Electrical factor
Qes
0.38

Total factor
Qts
0.37

Mechanical compliance
Cms
0.03
mm/N
Mechanical resistance of suspension losses
Rms
12.7
mech-ohm
Effective Moving Mass
Mms
599
gr
Half-space efficiency
Eff
2.66
%
BL Factor
BL
47.2
T.m
Equivalent Cas air load
Vas
252
liters
Effective piston area
Sd
0.2273
m2
Max.linear excursion
Xmax
12
mm
Voice-coil inductance
LelK
6.54
mH

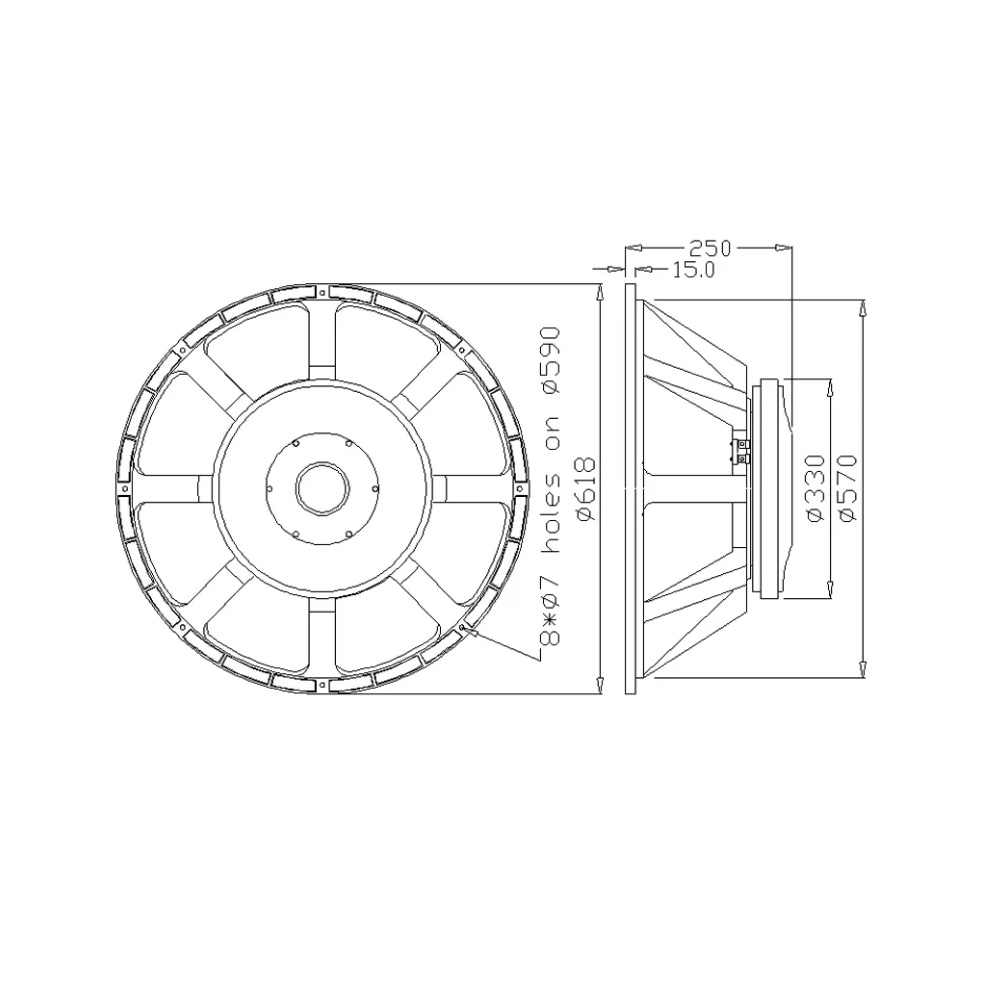

Mounting Information
Overall Diameter
618
mm

Bolt Circle Diameter
590
mm

Bolt Hole Diameter
7
mm

Baffle Cutout Diameter
570
mm

Overall Depth
250
mm

Net Weight
28.1
Kg

Gross Weight
32
KG

Carton Box Size
640*640*275
mm

c5d9a2e4477f9b3849ee09090a688dd0_H9af2986db538424ea6485579b82eda0bV.jpg_720x720q50.jpg



6d2ca328a04081e9124118a65002e23e_Hf2f7c89bdb7a411fbb7e63388cf66b1bB.jpg_720x720q50.jpg




Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
