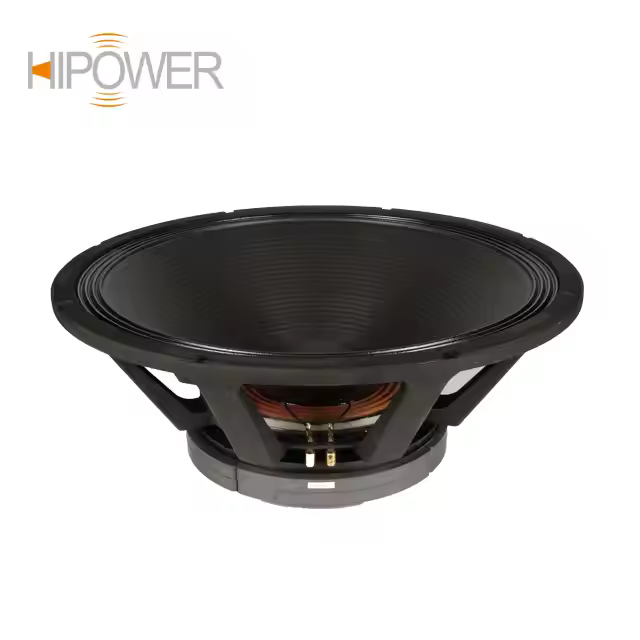

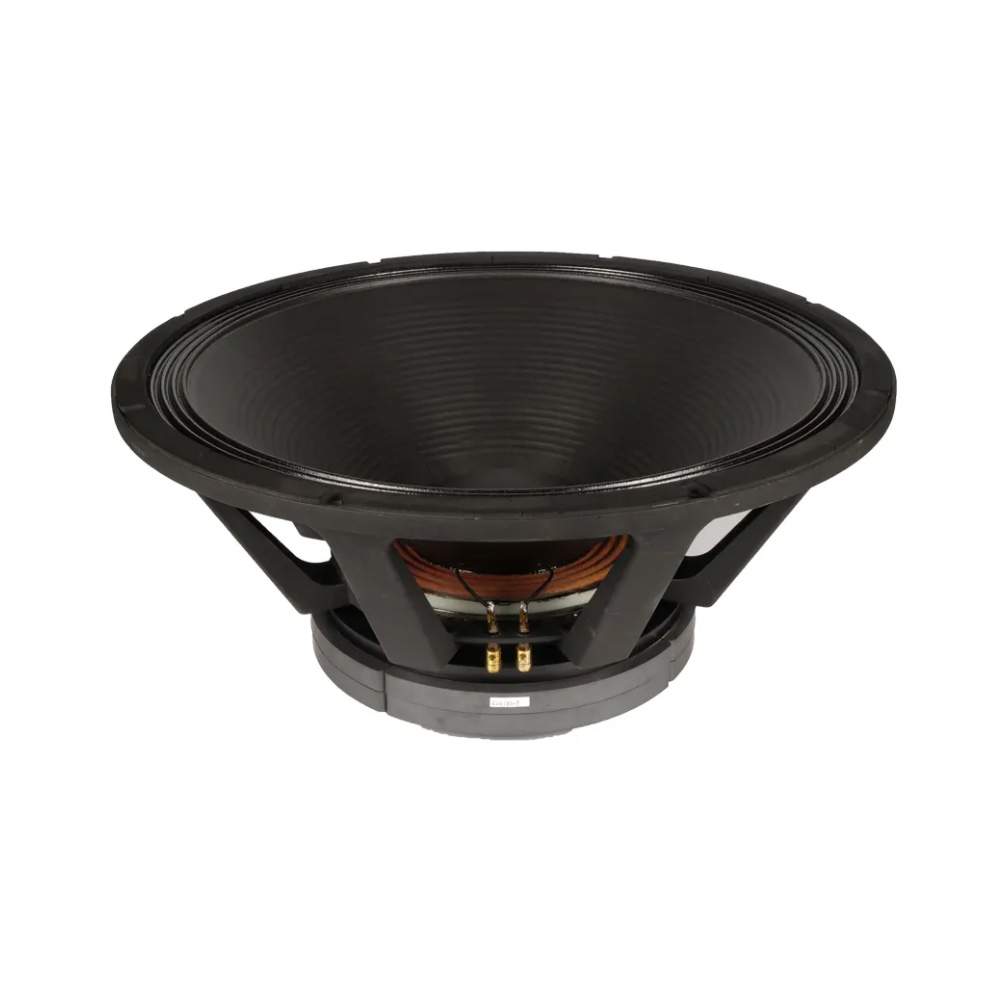

L24/8608 24 Inch Subwoofer Speaker With 6'' VC, Double Magnet

shared：

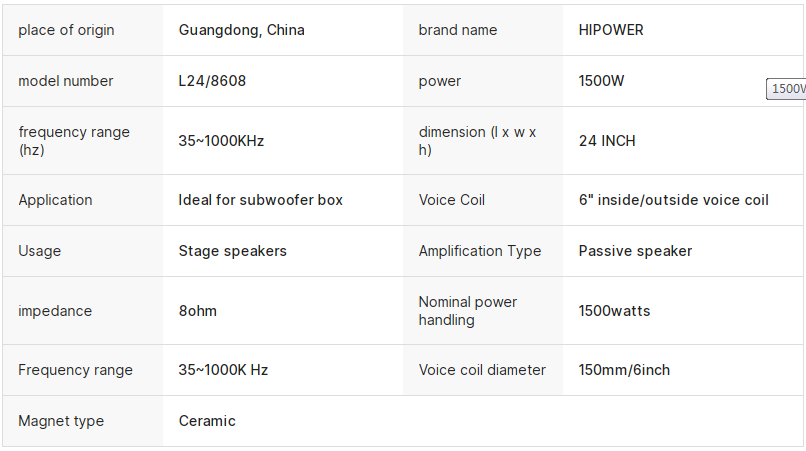

Key attributes

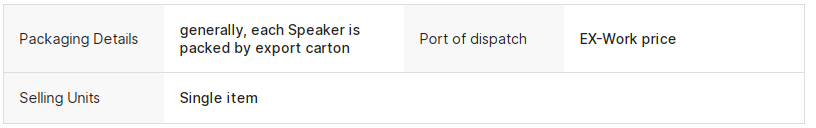

Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
610/24
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1500
Watts

Program Power2
3000
Watts

Sensitivity(lw/lm)3
99
dB

Frequency Range4
35-1000
Hz

Minimum Impedance(Zmin)
9.4
ohm

Voice Coil Diameter
150/6
mm/inch

Voice Coil Material
Copper
Voice Coil Winding Depth
28
mm

Number of layers
2(inside/outside)


Magnet gap depth
12
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
35
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
11.3

Electrical factor
Qes
0.33

Total factor
Qts
0.32

Mechanical compliance
Cms
0.042
mm/N
Mechanical resistance of suspension losses
Rms
9.11
mech-ohm
Effective Moving Mass
Mms
509
gr
Half-space efficiency
Eff
3.86
%
BL Factor
BL
43
T.m
Equivalent Cas air load
Vas
336
liters
Effective piston area
Sd
0.2376
m2
Max.linear excursion
Xmax
12
mm
Voice-coil inductance
LelK
6.54
mH
Mounting Information
Overall Diameter
618
mm

Bolt Circle Diameter
590
mm

Bolt Hole Diameter
7
mm

Baffle Cutout Diameter
570
mm

Overall Depth
280
mm

Net Weight
28.1
Kg

Gross Weight
32
KG

Carton Box Size
640*640*275
mm

2e0cfa6c3440a83a9fe2a606ec714887_H4396d93c33a4485f82dc040c88a59d9a0.jpg_720x720q50.jpg

24f59dbce0b69c5b274fd6e0a5c6802d_Hfd1ba5cdb3e3462099b15e612bf0524cV.jpg_720x720q50.jpg










Why Choose Us


Customized Services

Product Classification

Company Profile


Customer Visits & Exhibitions


Q: What’s the MOQ?

A: Different size with different MOQ, you can check with us which model are you interested in？


Q: What’s the best price?

A: We have details price list based on order quantity.


Q: What is your sample terms?

A: Normally, we need to charge of the sample and freight cost.


Q: How long is delivery date?

A: We are manufacture, all order is based on customer order quantity, Usually it will take about 20-35days for production. Q: What is service can we offer? A: We can offer OEM and ODM service.
