L18/86199 18Inch Pa Speaker Subwoofer Rcf Speaker With 4'' Voice Coil, 800Watt

shared：

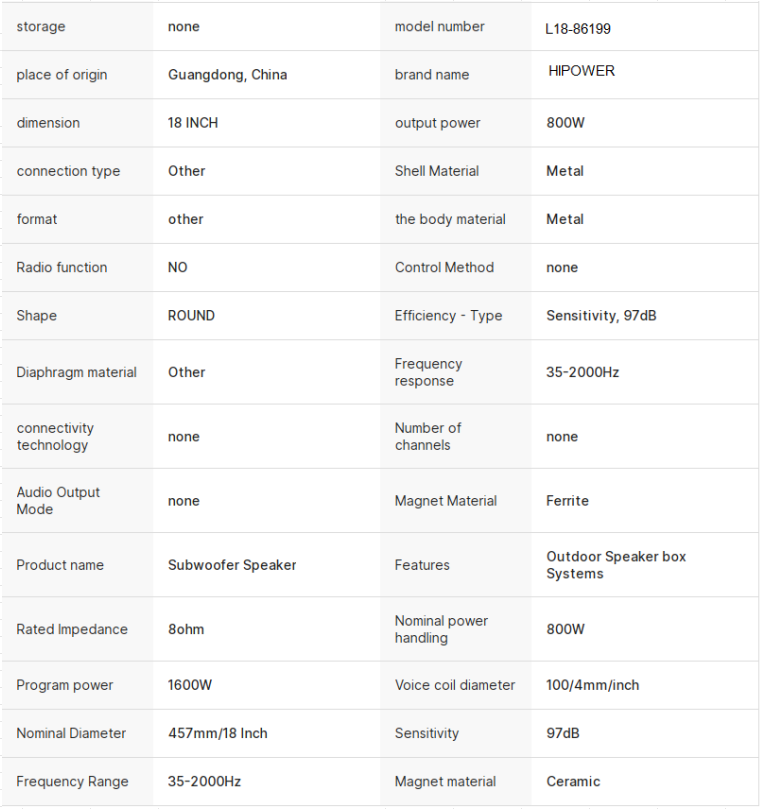

Key attributes



Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)30To be negotiated


Customization options

Customized logo

Customized packaging

Graphic customization


Product descriptions from the supplier

Products Description

General Specifications
Nominal Diameter
457/18
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
800
Watts

Program Power2
1600
Watts

Sensitivity(lw/lm)3
97
dB

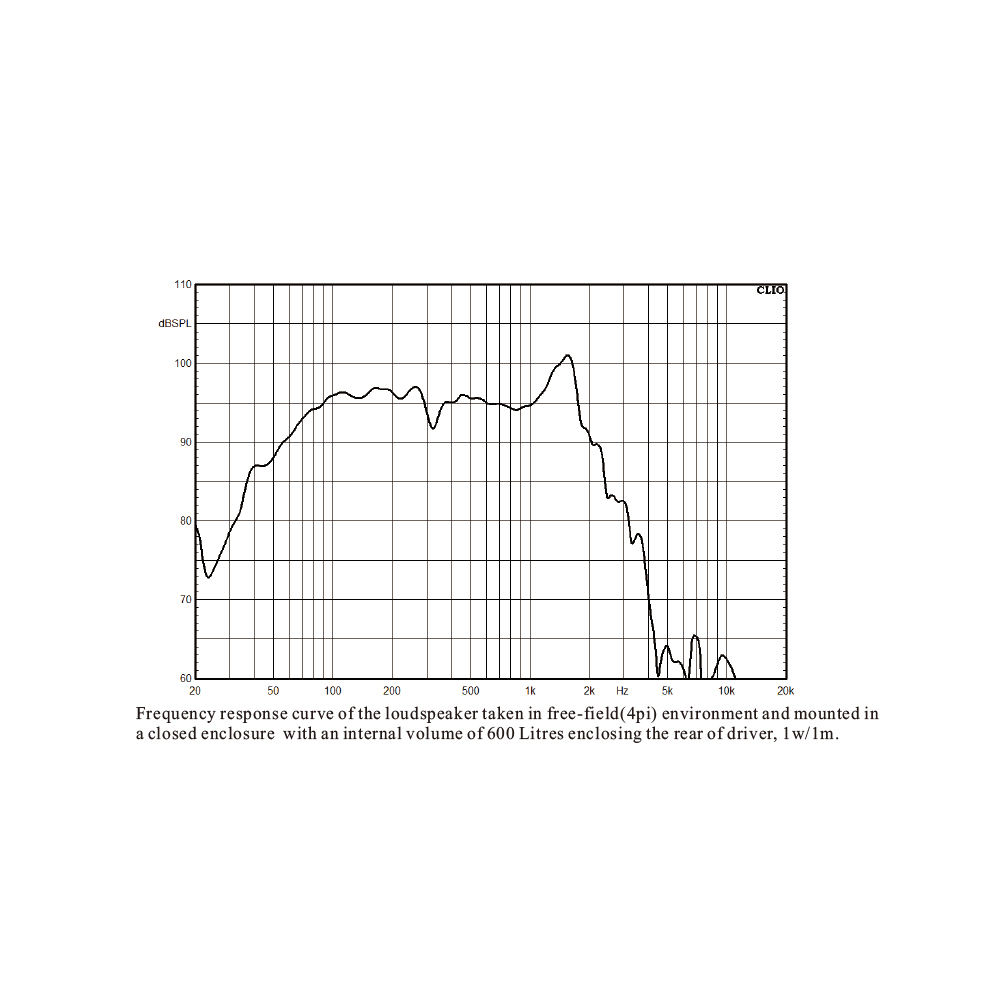

Frequency Range4
35-2000
Hz

Minimum Impedance(Zmin)
68
ohm

Voice Coil Diameter
100/4
mm/inch

Voice Coil Material
Copper


Voice Coil Winding Depth
24
mm

Number of layers
2(inside/outside)


Magnet gap depth
12
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic


Thiele-Small parameters
Resonance frequency
Fs
33.9
Hz
DC resistance
Re
5.4
ohm
Mechanical factor
Qms
13.97

Electrical factor
Qes
0.38

Total factor
Qts
0.37

Mechanical compliance
Cms
0.1122
mm/N
Mechanical resistance of suspension losses
Rms
2.98
mech-ohm
Effective Moving Mass
Mms
195.5
gr
Half-space efficiency
Eff
2.37
%
BL Factor
BL
23.95
T.m
Equivalent Cas air load
Vas
247.95
liters
Effective piston area
Sd
0.1257
m2
Max.linear excursion
Xmax
9
mm
Voice-coil inductance
Le1k
1.998
mH

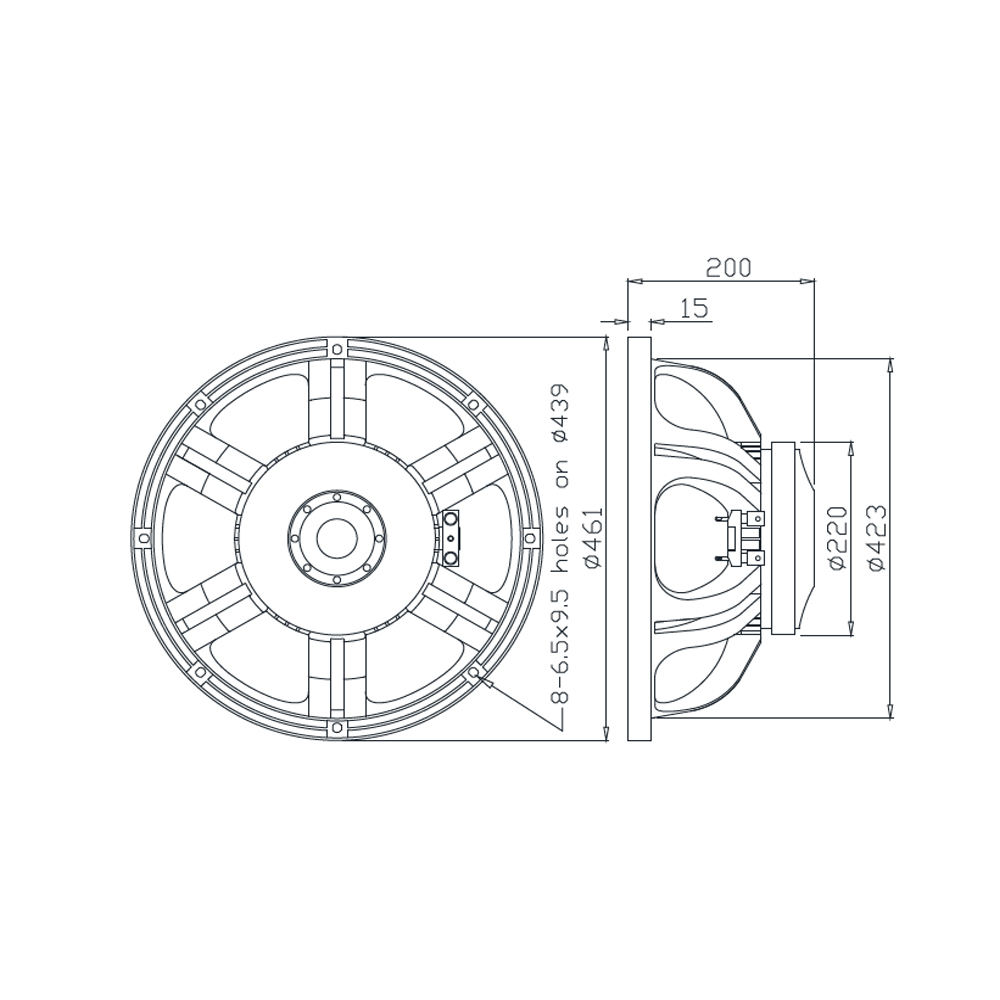

Mounting Information
Overall Diameter
461
mm

Bolt Circle Diameter
439
mm

Bolt Hole Diameter
6.5*9.5
mm

Baffle Cutout Diameter
423
mm

Overall Depth
200
mm

Net Weight

kg

Shipping Weight
20.2
kg

Shipping Box
513*513*25.5
mm
