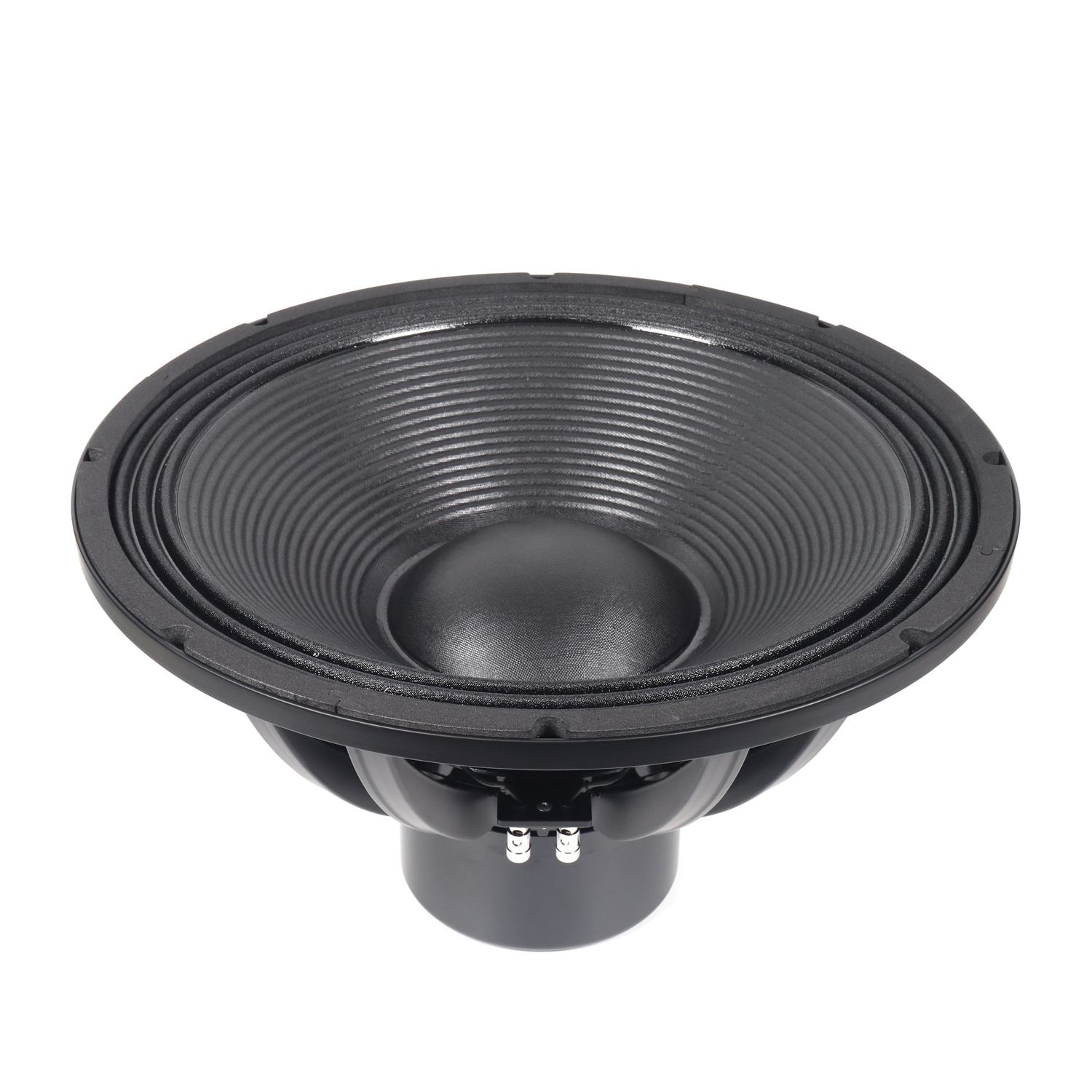

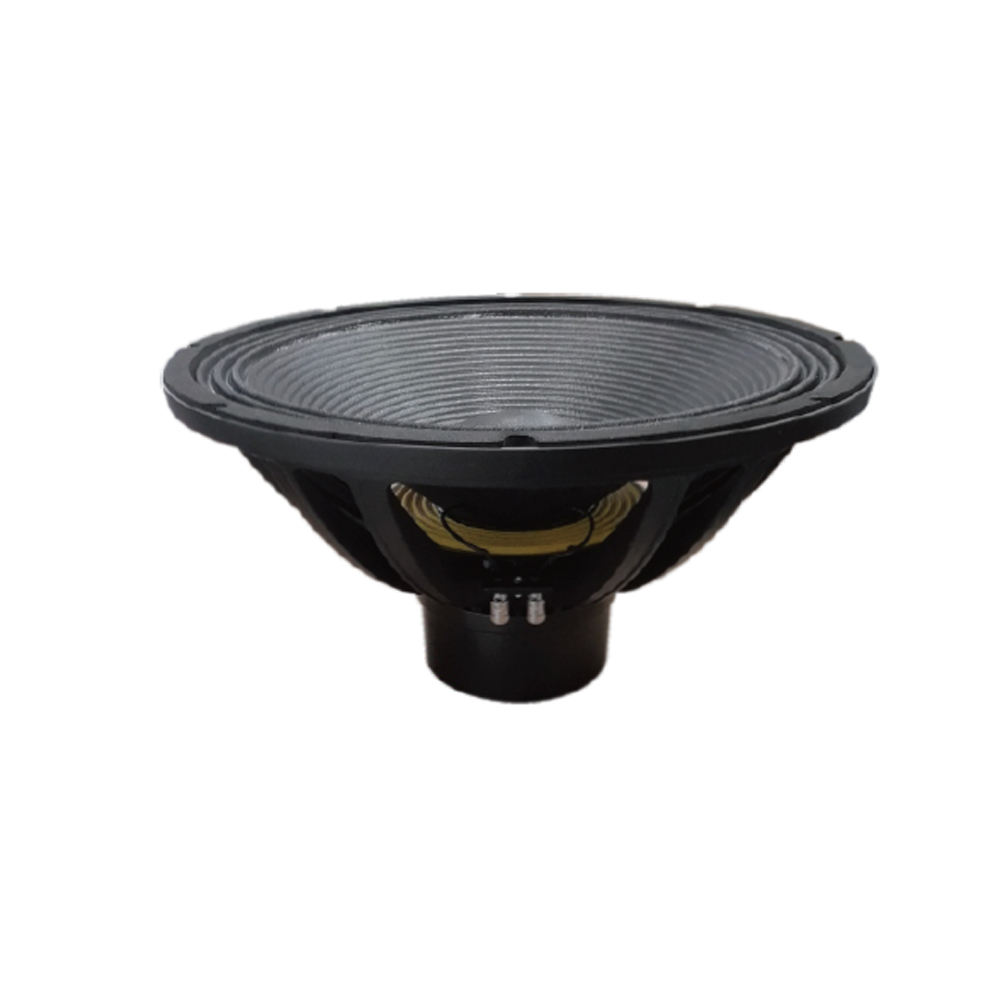

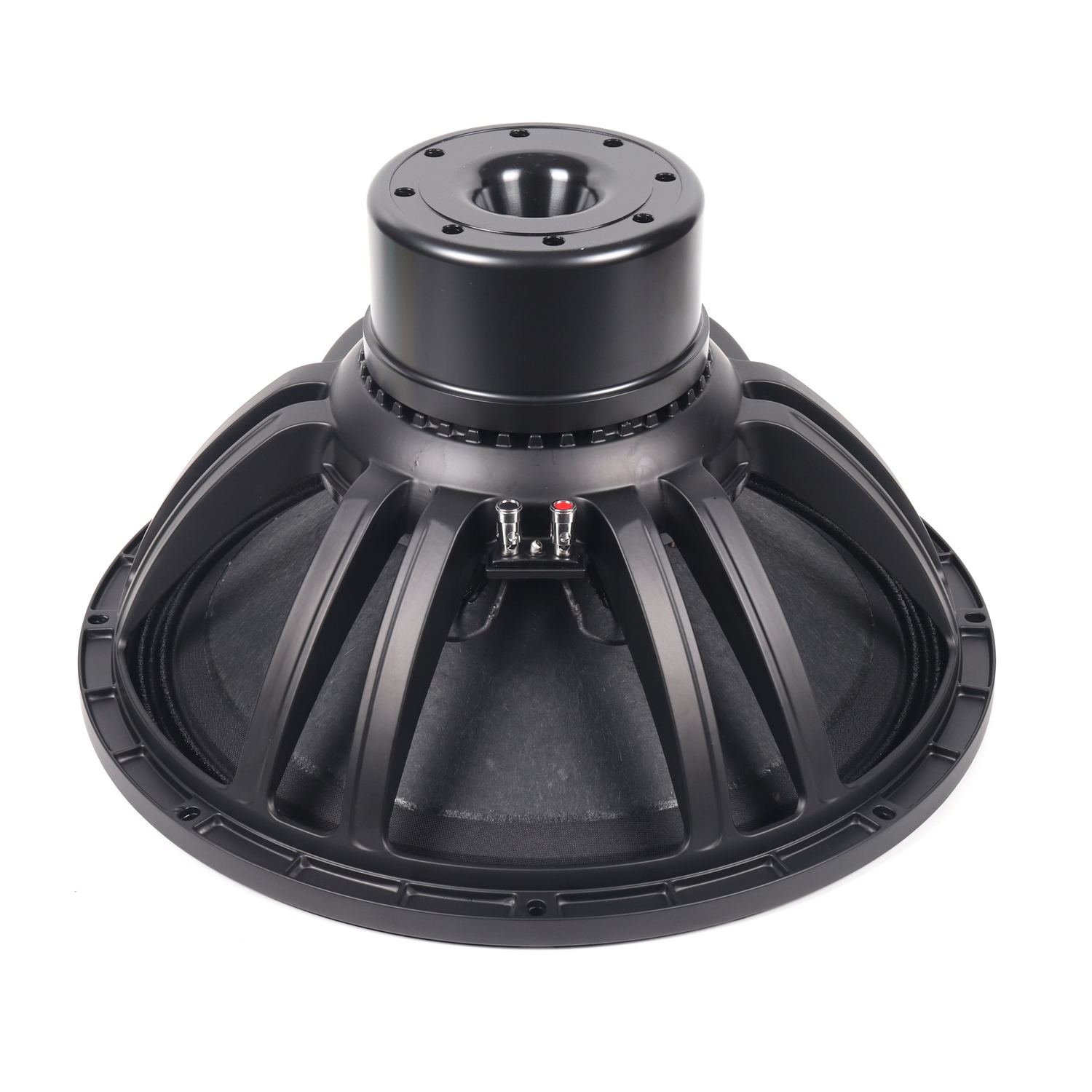

L18/86188 Professional 18 Inch Neodymium Speaker Subwoofer For Line Array Sound Systems, PA Speaker

shared：

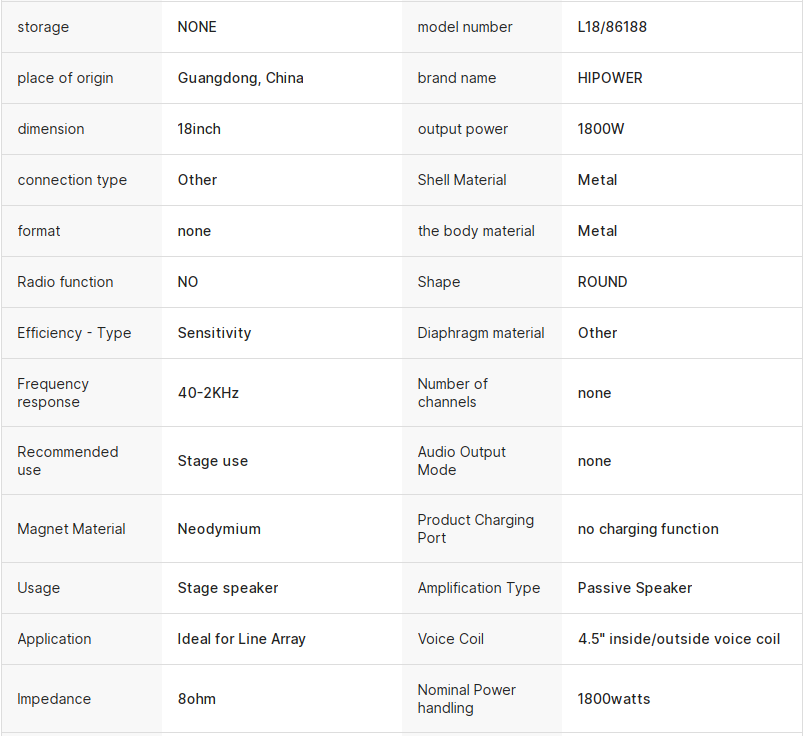

Key attributes





Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo

Customized packaging

Graphic customization


Product descriptions from the supplier

Products Description

General Specifications

Nominal Diameter
457/18
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1800
Watts

Program Power2
3600
Watts

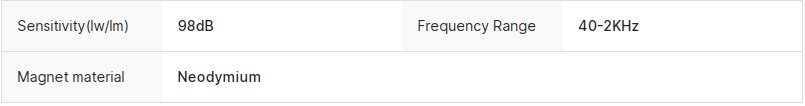

Sensitivity(lw/lm)3
98
dB

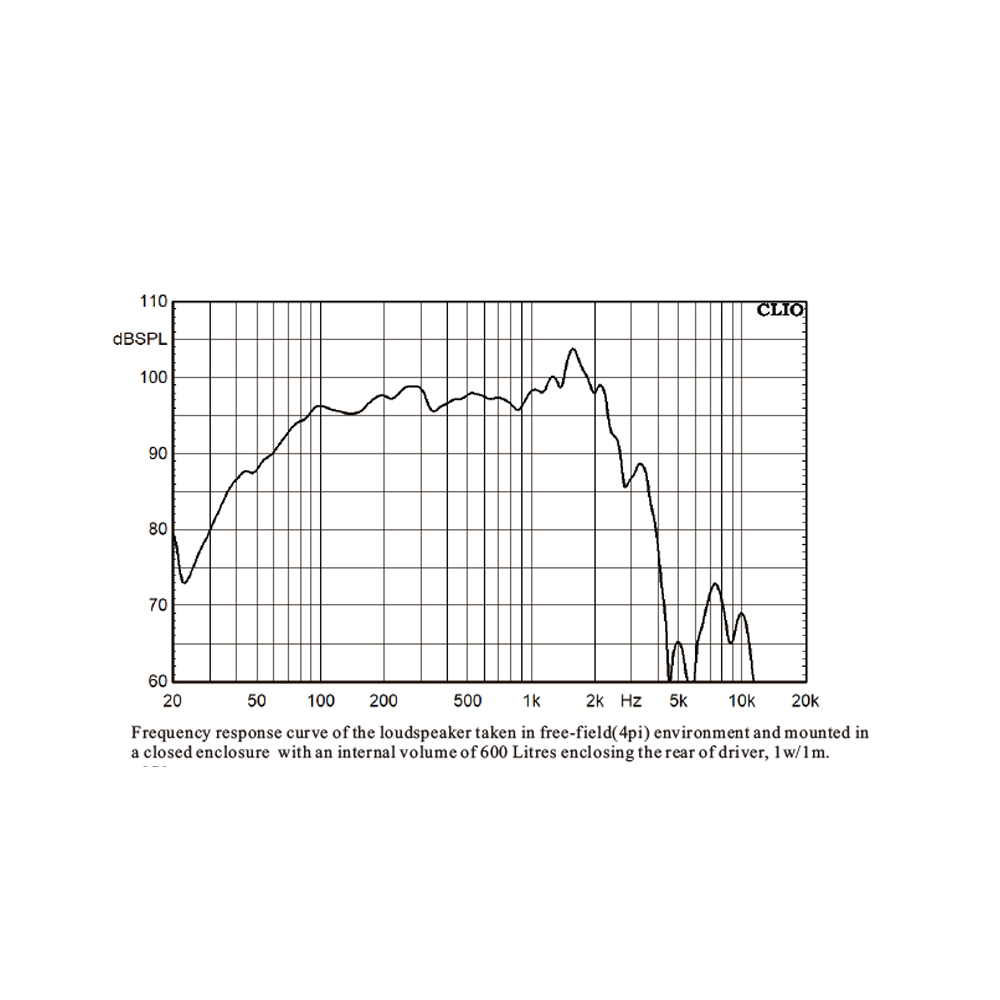

Frequency Range4
40-2000
Hz

Minimum Impedance(Zmin)
7.35
ohm

Voice Coil Diameter
115/4.5
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
30
mm

Number of layers
2(inside/outside)


Magnet gap depth
15
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
40.8
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
12.75

Electrical factor
Qes
0.34

Total factor
Qts
0..33

Mechanical compliance
Cms
0.0836
mm/N
Mechanical resistance of suspension losses
Rms
3.75
mech-ohm
Effective Moving Mass
Mms
191.2
gr
Half-space efficiency
Eff
3.22
%
BL Factor
BL
27.1
T.m
Equivalent Cas air load
Vas
180.7
liters
Effective piston area
Sd
0.1244
m2
Max.linear excursion
Xmax
11.5
mm
Voice-coil inductance
LelK
1.735
mH

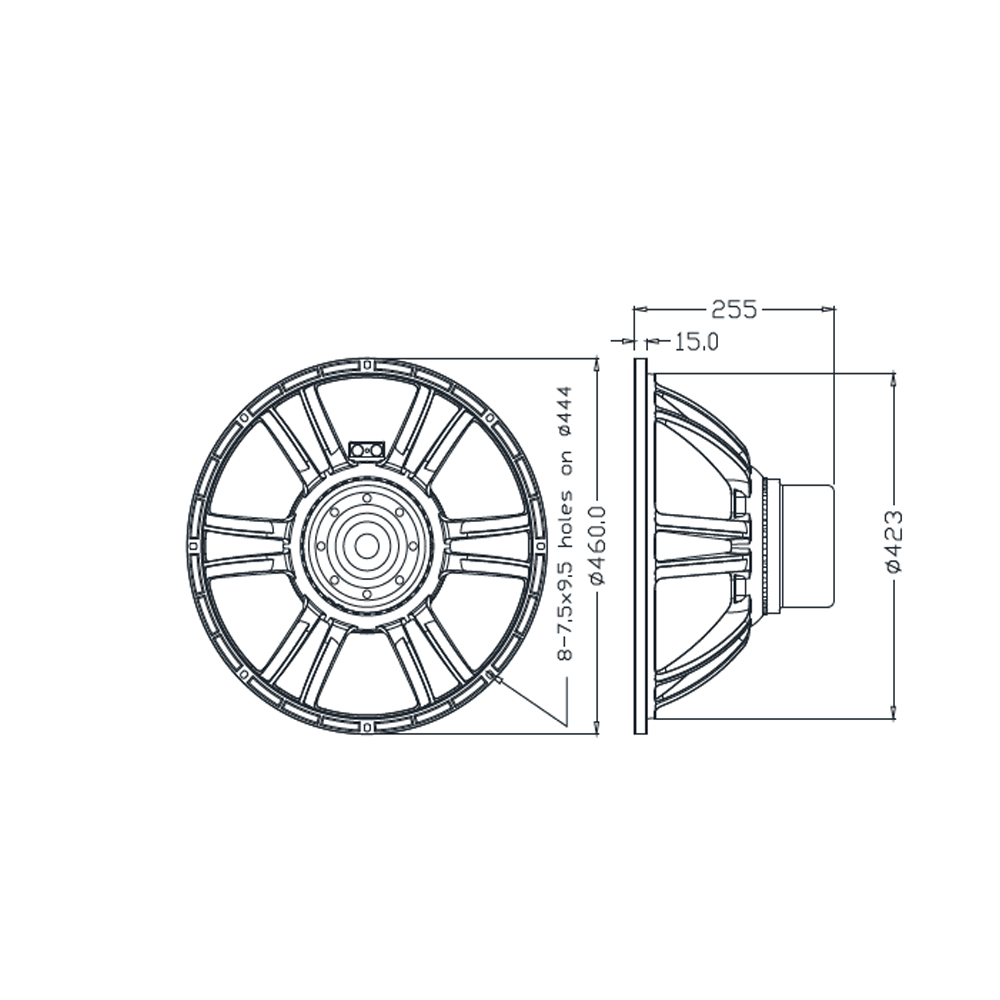

Mounting Information
Overall Diameter
460
mm

Bolt Circle Diameter
444
mm

Bolt Hole Diameter
7.5*9.5
mm

Baffle Cutout Diameter
423
mm

Overall Depth
255
mm

Net Weight
12.5
Kg

Gross Weight
18.5
KG

Carton Box Size
515*515*275
mm

General Specifications

Nominal Diameter
457/18
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1800
Watts

Program Power2
3600
Watts

Sensitivity(lw/lm)3
98
dB

Frequency Range4
40-2000
Hz

Minimum Impedance(Zmin)
7.35
ohm

Voice Coil Diameter
115/4.5
mm/inch

Voice Coil Material
Copper Clad Aluminum
Voice Coil Winding Depth
30
mm

Number of layers
2(inside/outside)


Magnet gap depth
15
mm

Surround Shape
Tripple-roll


Basket
Cast Aluminum


Flux Density
1.2
T

Magnet Material/Mass
Neodymium


Thiele-Small parameters
Resonance frequency
Fs
40.8
Hz
DC resistance
Re
5.2
ohm
Mechanical factor
Qms
12.75

Electrical factor
Qes
0.34

Total factor
Qts
0..33

Mechanical compliance
Cms
0.0836
mm/N
Mechanical resistance of suspension losses
Rms
3.75
mech-ohm
Effective Moving Mass
Mms
191.2
gr
Half-space efficiency
Eff
3.22
%
BL Factor
BL
27.1
T.m
Equivalent Cas air load
Vas
180.7
liters
Effective piston area
Sd
0.1244
m2
Max.linear excursion
Xmax
11.5
mm
Voice-coil inductance
LelK
1.735
mH
Mounting Information
Overall Diameter
460
mm

Bolt Circle Diameter
444
mm

Bolt Hole Diameter
7.5*9.5
mm

Baffle Cutout Diameter
423
mm

Overall Depth
255
mm

Net Weight
12.5
Kg

Gross Weight
18.5
KG

Carton Box Size
515*515*275
mm
