L18/86180 High-Quality 18 Inch Speaker Subwoofer For Compact Bass Reflex, Horn-Loaded Subwoofer, 1800W, 5'' Voice Coil, 8OHM

shared：

Key attributes


Packaging and delivery


Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)35To be negotiated


Customization options

Customized logo

Customized packaging

Graphic customization


Product descriptions from the supplier

Products Description

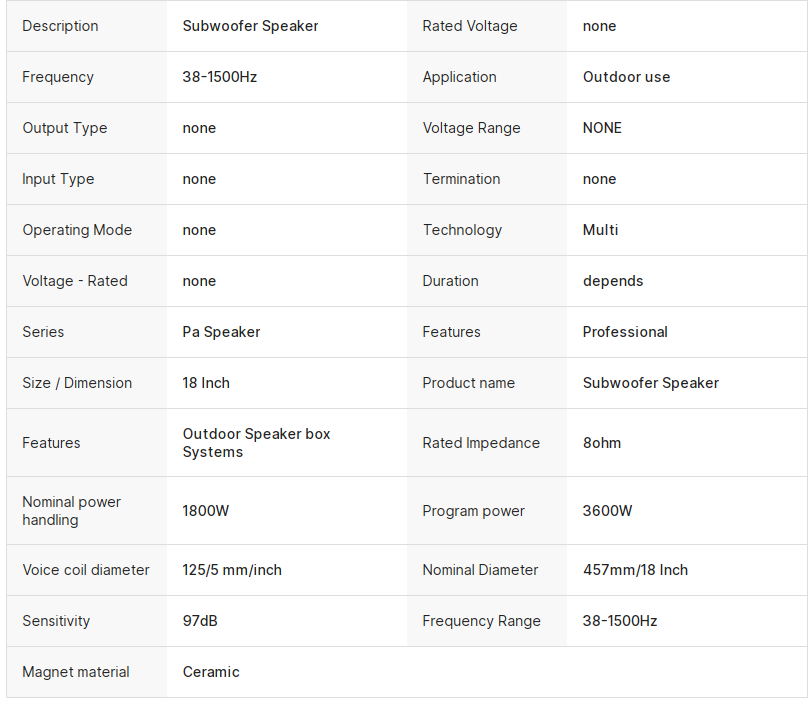

General Specifications
Nominal Diameter
457/18
mm/inch

Rated Impedance
8
ohm

Nominal Power handling1
1800
Watts

Program Power2
3600
Watts

Sensitivity(lw/lm)3
97
dB

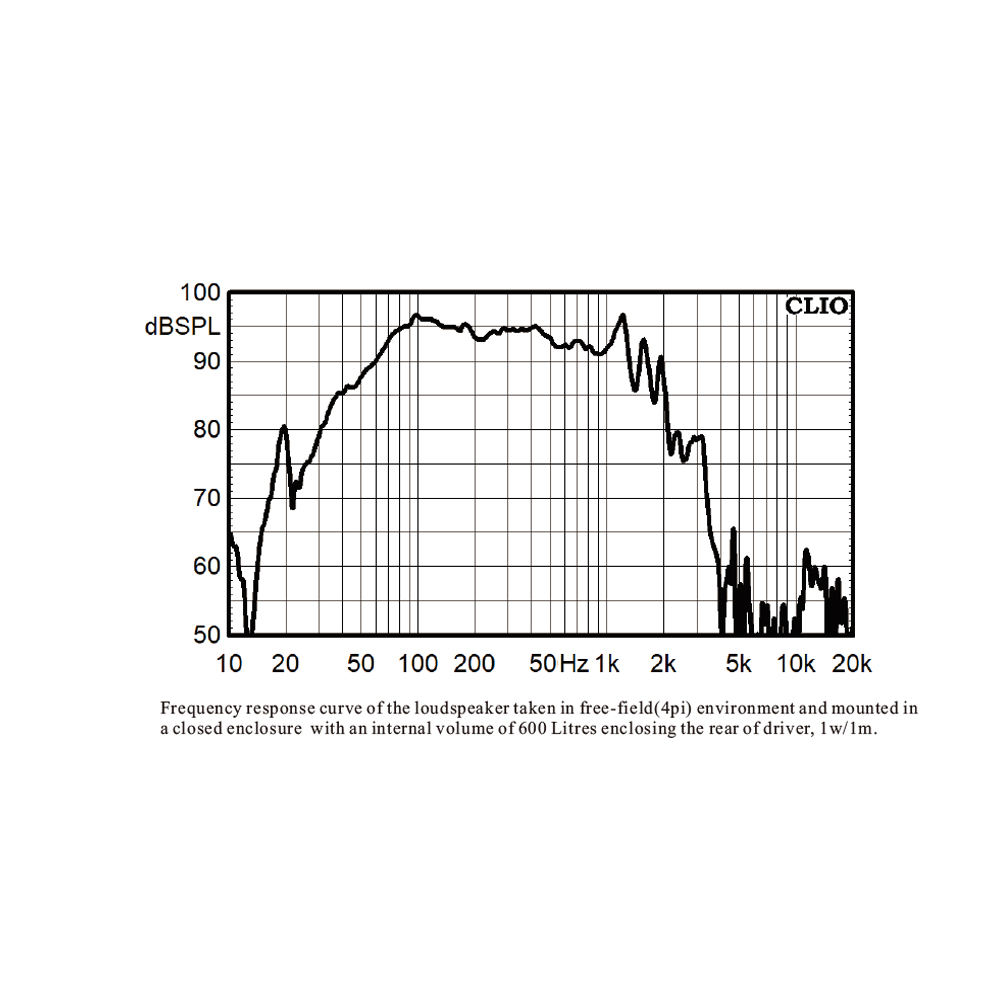

Frequency Range4
38-1500
Hz

Minimum Impedance(Zmin)
8.13
ohm

Voice Coil Diameter
125/5
mm/inch

Voice Coil Material
Copper


Voice Coil Winding Depth
33
mm

Number of layers
3(inside/outside)


Magnet gap depth
12
mm

Surround Shape
M-roll


Basket
Cast Aluminum


Flux Density
1.1
T

Magnet Material/Mass
Ceramic

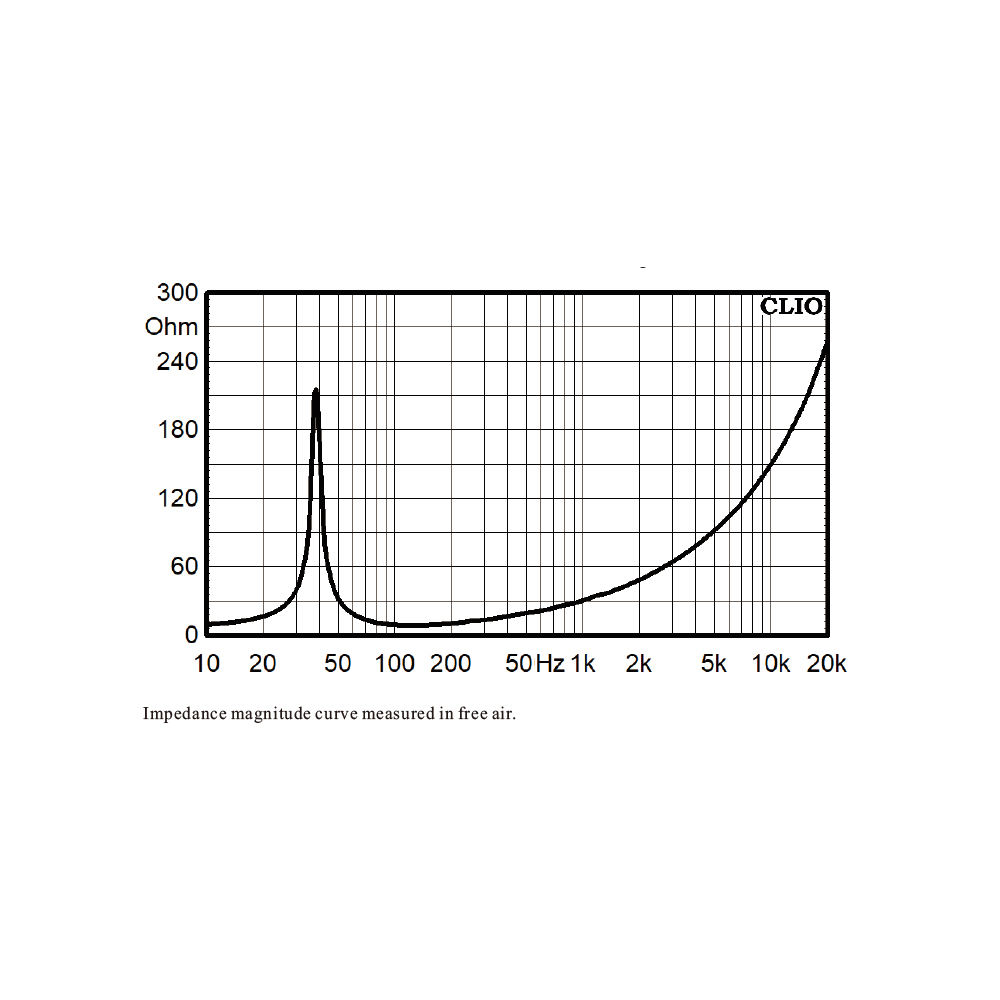

Thiele-Small parameters
Resonance frequency
Fs
38.05
Hz
DC resistance
Re
5.6
ohm
Mechanical factor
Qms
11.98

Electrical factor
Qes
0.319

Total factor
Qts
0.311

Mechanical compliance
Cms
0.0537
mm/N
Mechanical resistance of suspension losses
Rms
6.497
mech-ohm
Effective Moving Mass
Mms
325.61
gr
Half-space efficiency
Eff
2.08
%
BL Factor
BL
36.93
T.m
Equivalent Cas air load
Vas
125.7
liters
Effective piston area
Sd
0.1295
m2
Max.linear excursion
Xmax
13.5
mm
Voice-coil inductance
Le1k
3.941
mH

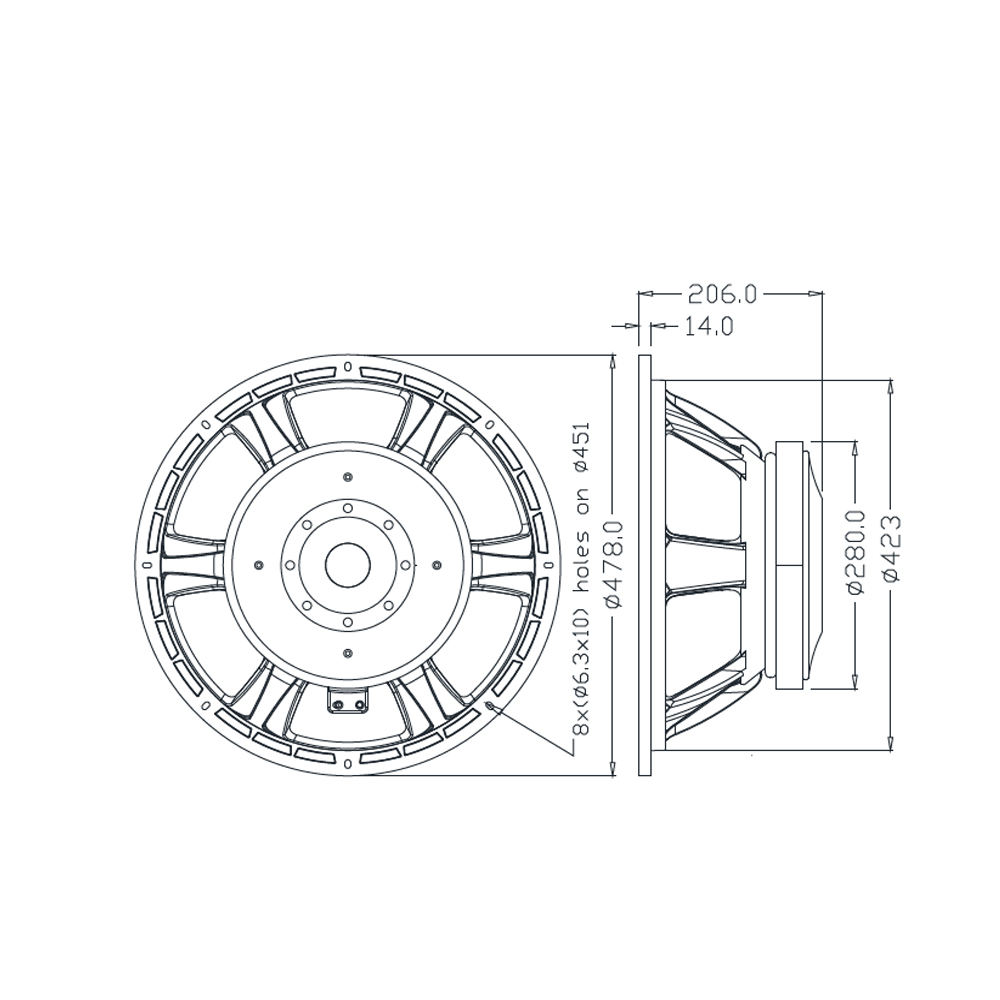

Mounting Information
Overall Diameter
478
mm

Bolt Circle Diameter
451
mm

Bolt Hole Diameter
6.3*10
mm

Baffle Cutout Diameter
423
mm

Overall Depth
206
mm

Net Weight 36Kg
20
kg

Shipping Weight
26
kg

Shipping Box
515*515*275
mm
